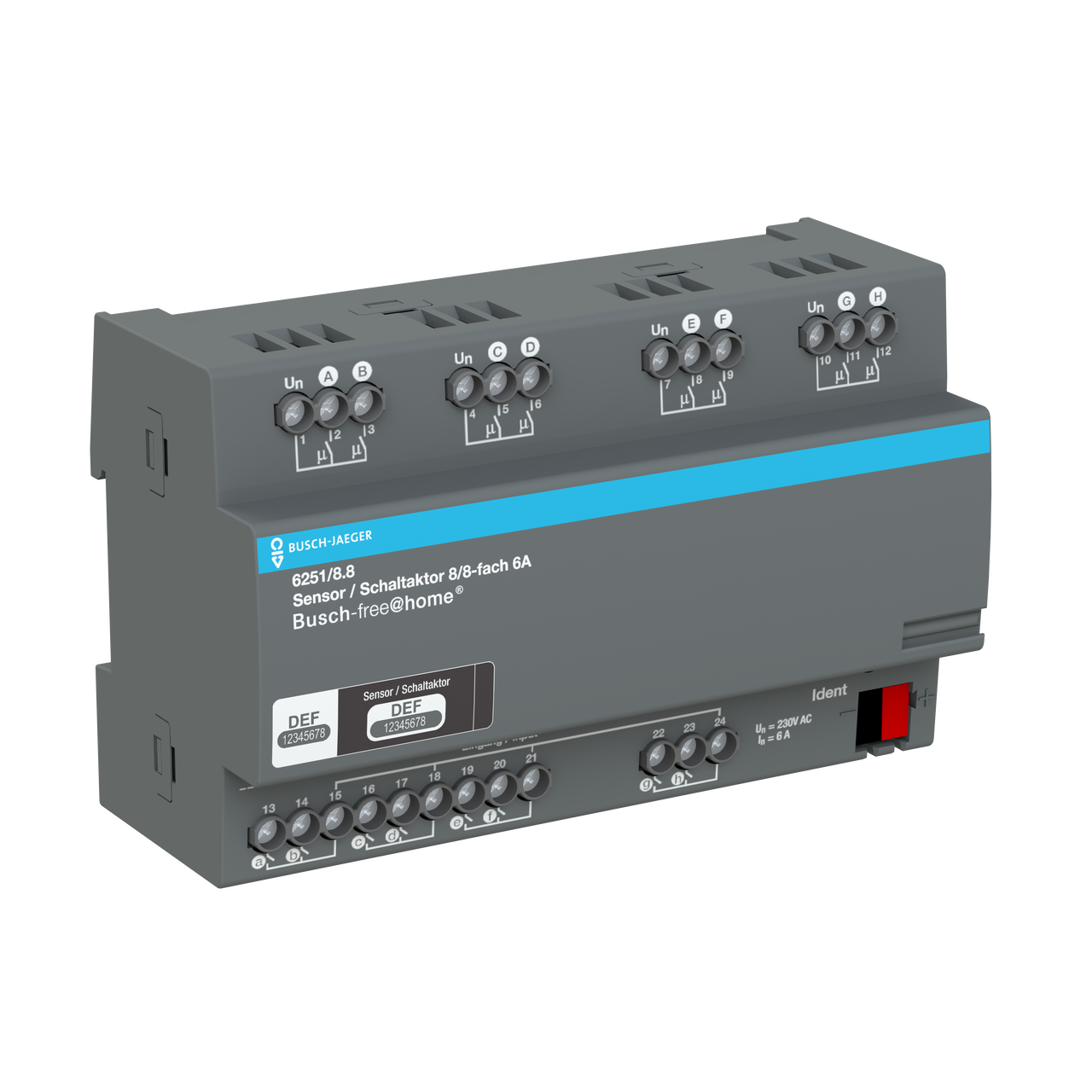

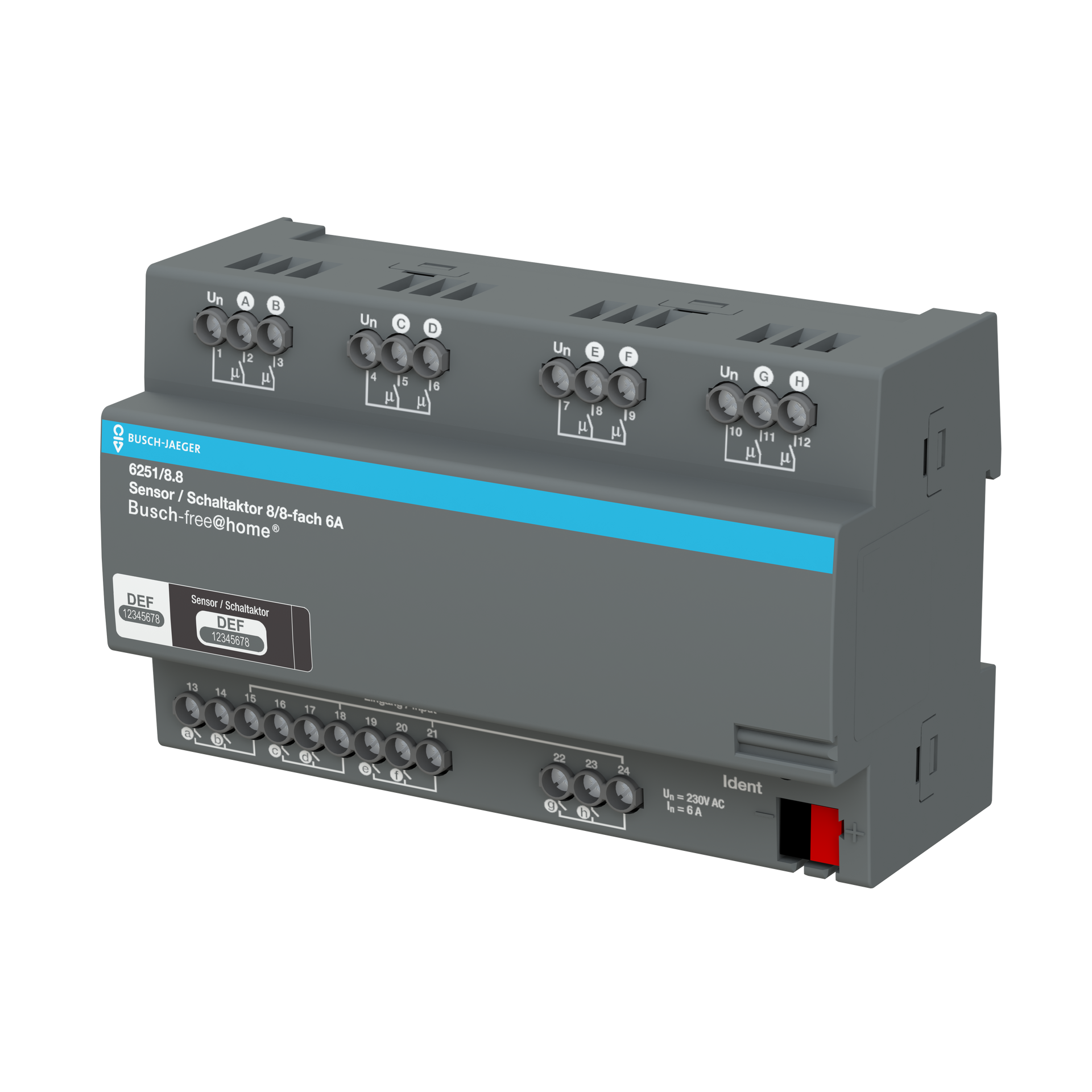

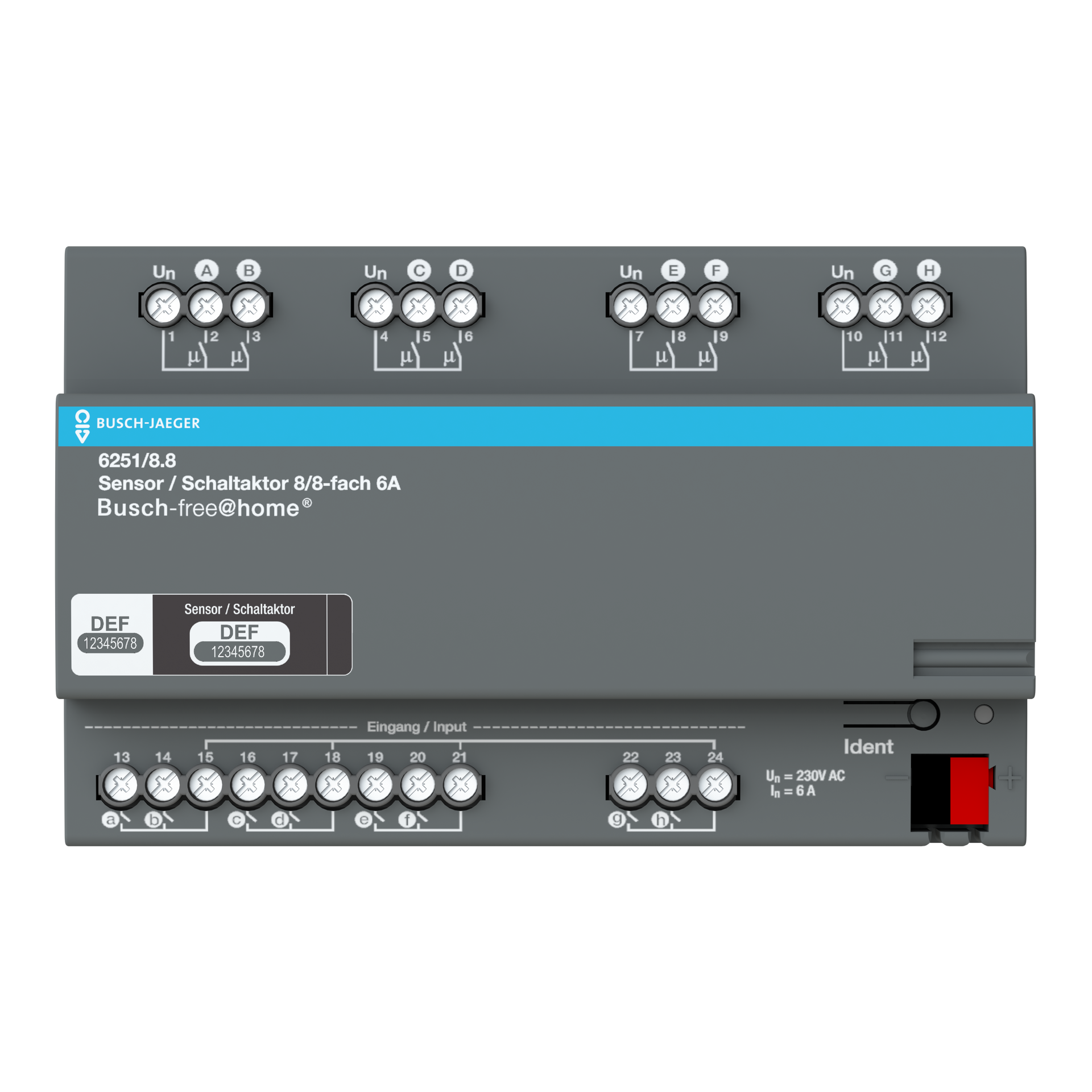

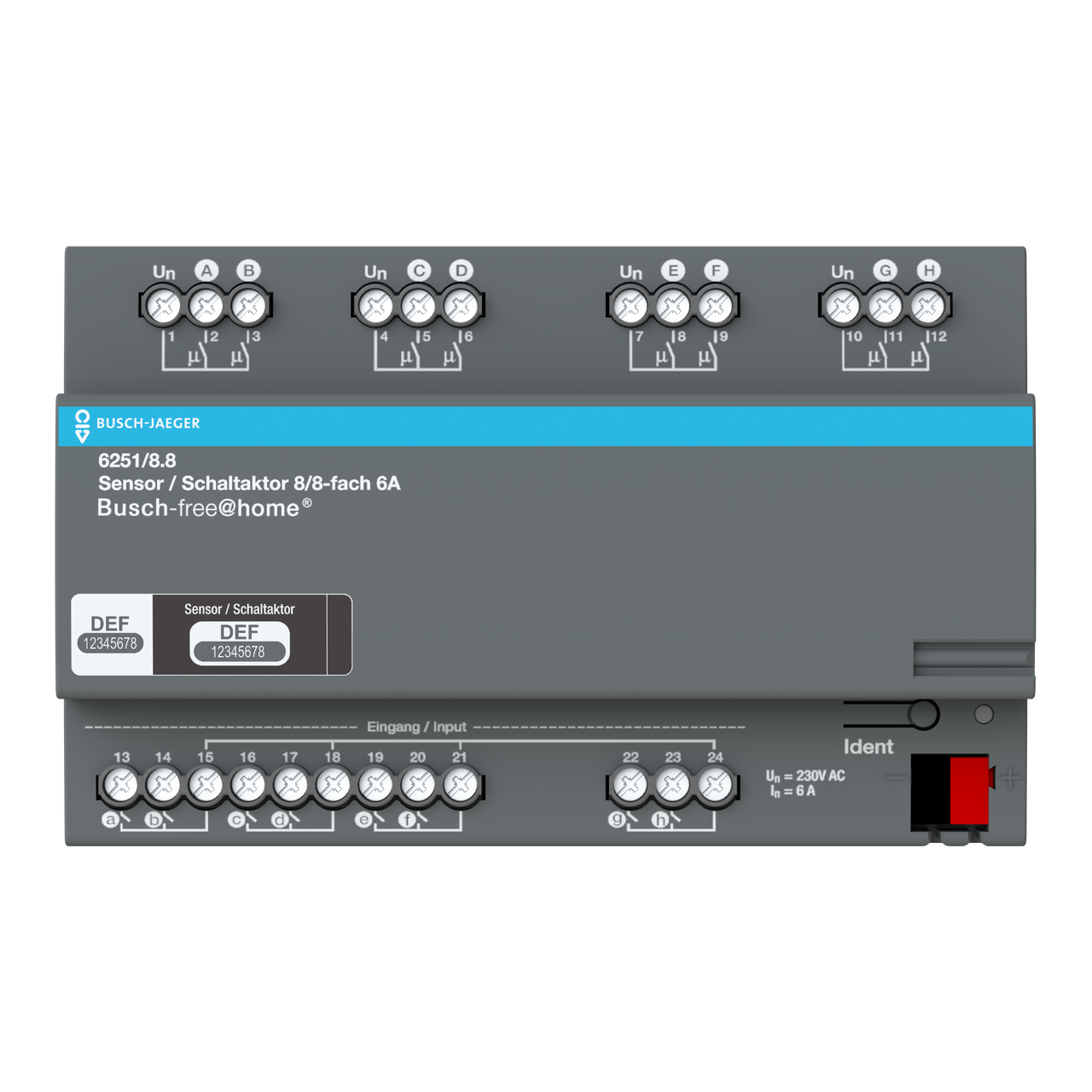

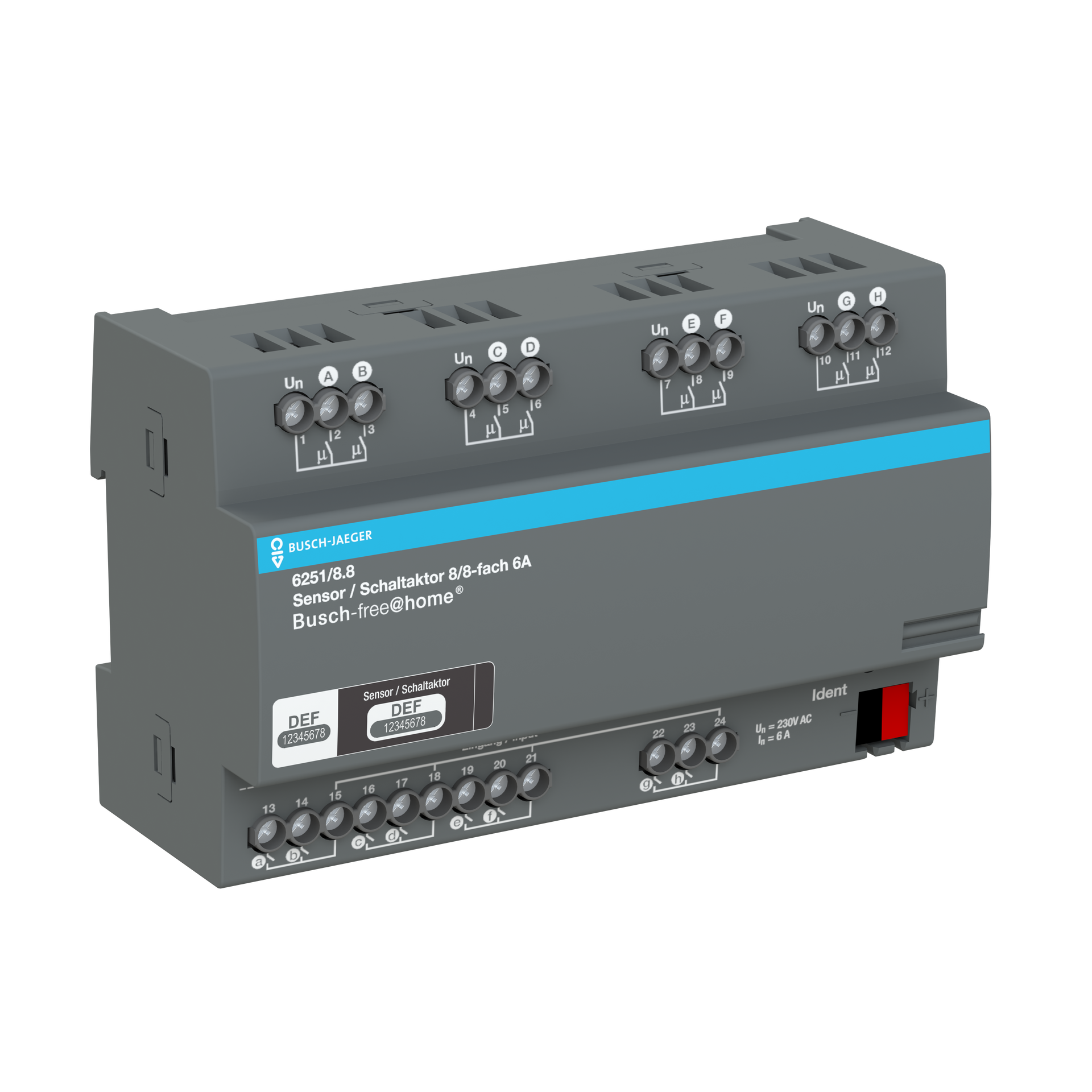

6251/8.8 6251/8.8 Switch Actuator, 8f, 6A, BJE
1 / 3
6251/8.8 6251/8.8 Switch Actuator, 8f, 6A, BJE
Combination device with 8 binary inputs and 8 switch actuators. Conventional push-buttons or auxiliary contacts can be connected to 8 channels. The information of the contact enquiry can be used for activating ABB-free@home® actuators or for recording status information. The contact polling voltage is made available by the device itself. Maximum cable length at a cable cross-section of 1.5 mm² < 100 m For switching 8 independent 230 V~ loads.
Codici prodotto
SKU: 2CKA006220A0024
EAN: 4011395180396
GTIN: 4011395180396
MPN: 6251/8.8
Gruppo ETIM
Specifiche tecniche
| Carico C | - |
| Sistema bus LON | no |
| Potenza d'uscita | 1380 W |
| Altri sistemi bus | Altro |
| Corrente nominale | 6 A |
| Numero moduli DIN | 8 |
| Sistema bus radio | no |
| Tipo di montaggio | AMD |
Documenti
Deeplink product page
Deeplink REACH
9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf
Dimensioned drawing
8_TE_MB_XX_V1-0_2CDC072027F0017_Rev_A.pdf
Instructions for use
SAM_881_MBA_14s_V1-4_2CDG941169P0004_2CDG941172P0004_REV_B.pdf
Product data sheet
Declaration RoHS
9AKK108472A2583_en_A_RoHS Exemption Information.pdf
Declaration DOC CE (Declaration of conformity CE)
6251_8.8_CE_XX_V01_2CKA100000E4529.pdf
