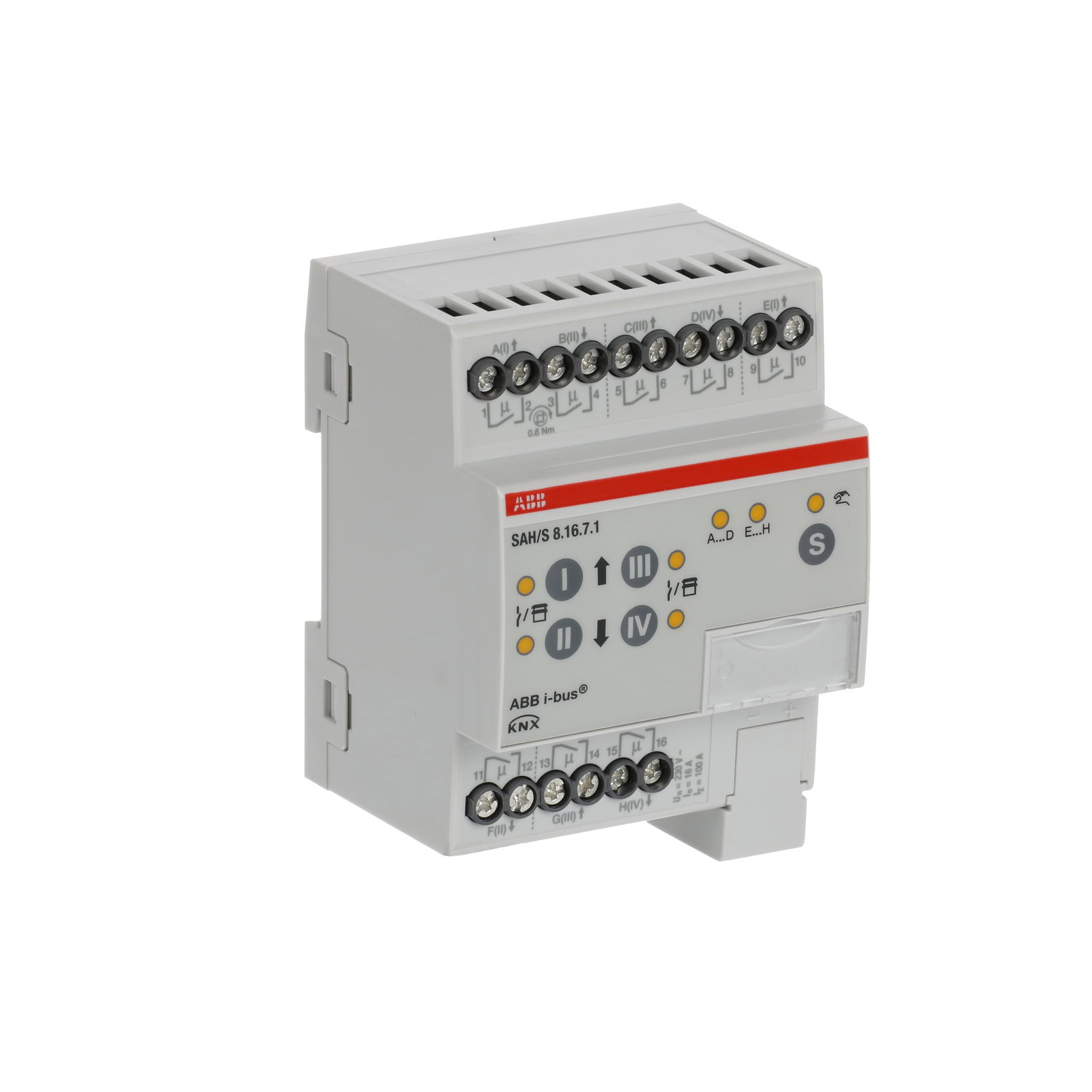

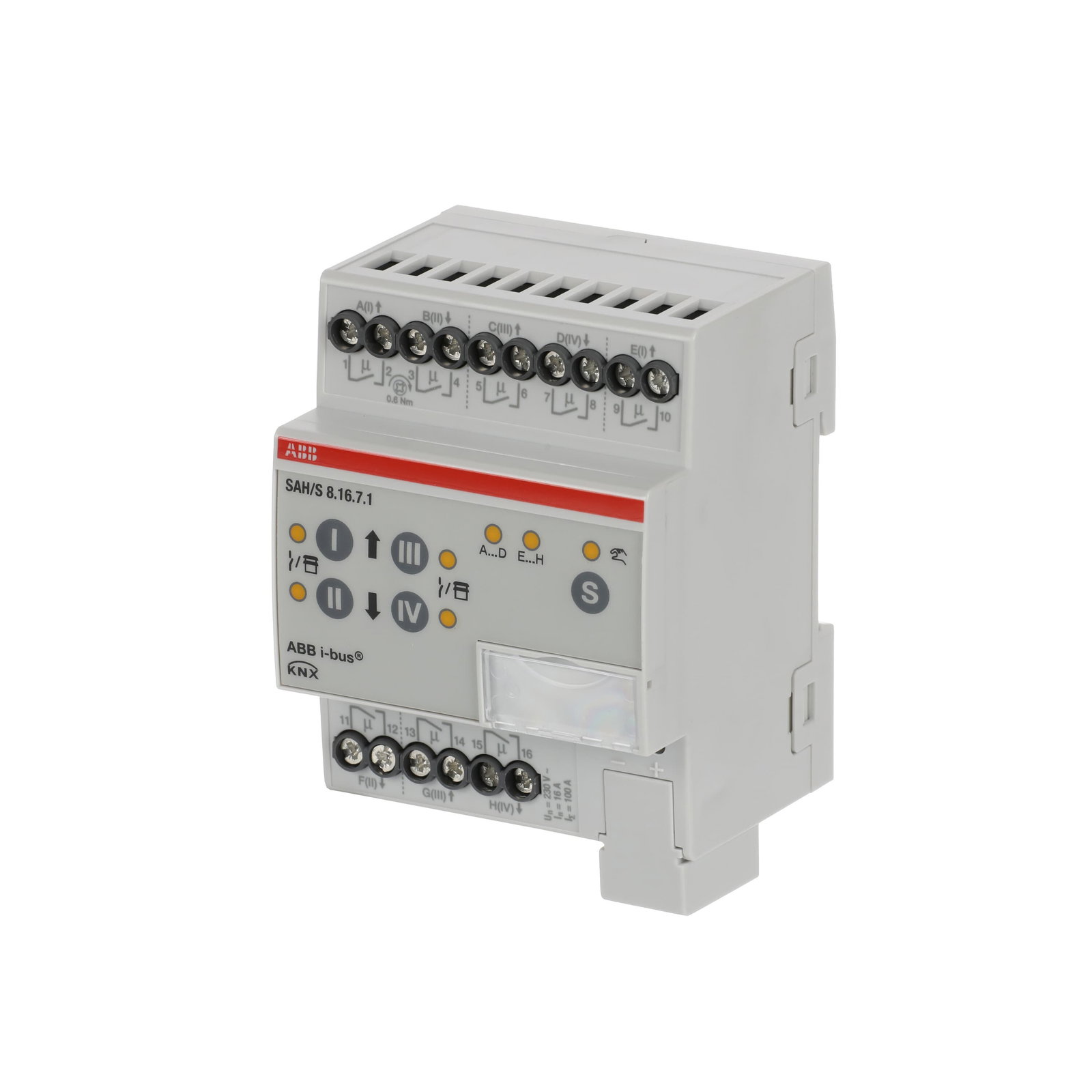

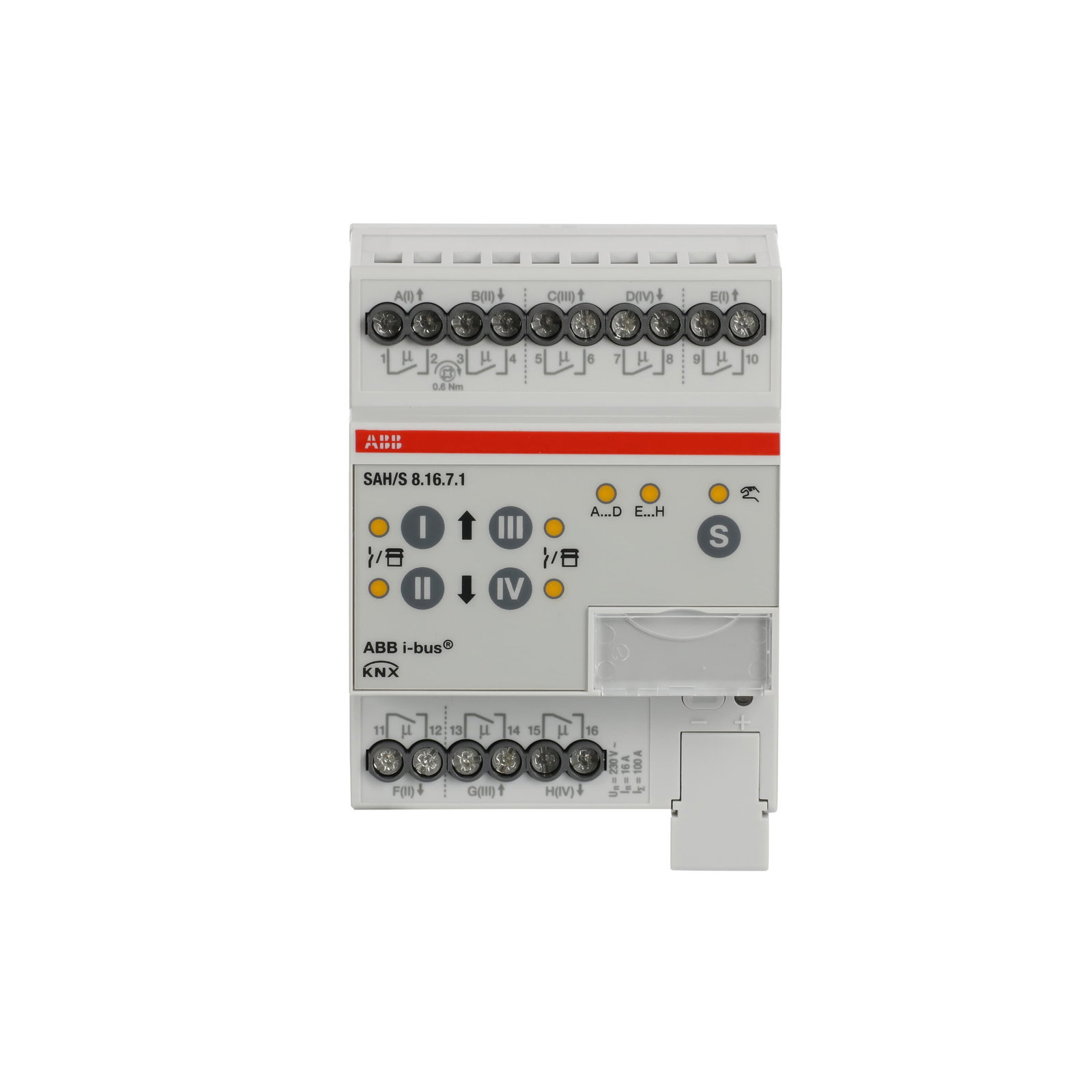

SAH/S8.16.7.1 Attuatore di commutazione/tapparelle, 8 canali, 16 A, MDRC
1 / 3
SAH/S8.16.7.1 Attuatore di commutazione/tapparelle, 8 canali, 16 A, MDRC
The compact 16 A combi switch actuator has 8 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
Codici prodotto
SKU: 2CDG110250R0011
EAN: 4016779066846
GTIN: 4016779066846
MPN: SAH/S8.16.7.1
Gruppo ETIM
Specifiche tecniche
| Carico C | - |
| Sistema bus LON | no |
| Potenza d'uscita | 1200 W |
| Altri sistemi bus | Senza |
| Corrente nominale | 16 A |
| Numero moduli DIN | 4 |
| Sistema bus radio | no |
| Tipo di montaggio | AMD |
