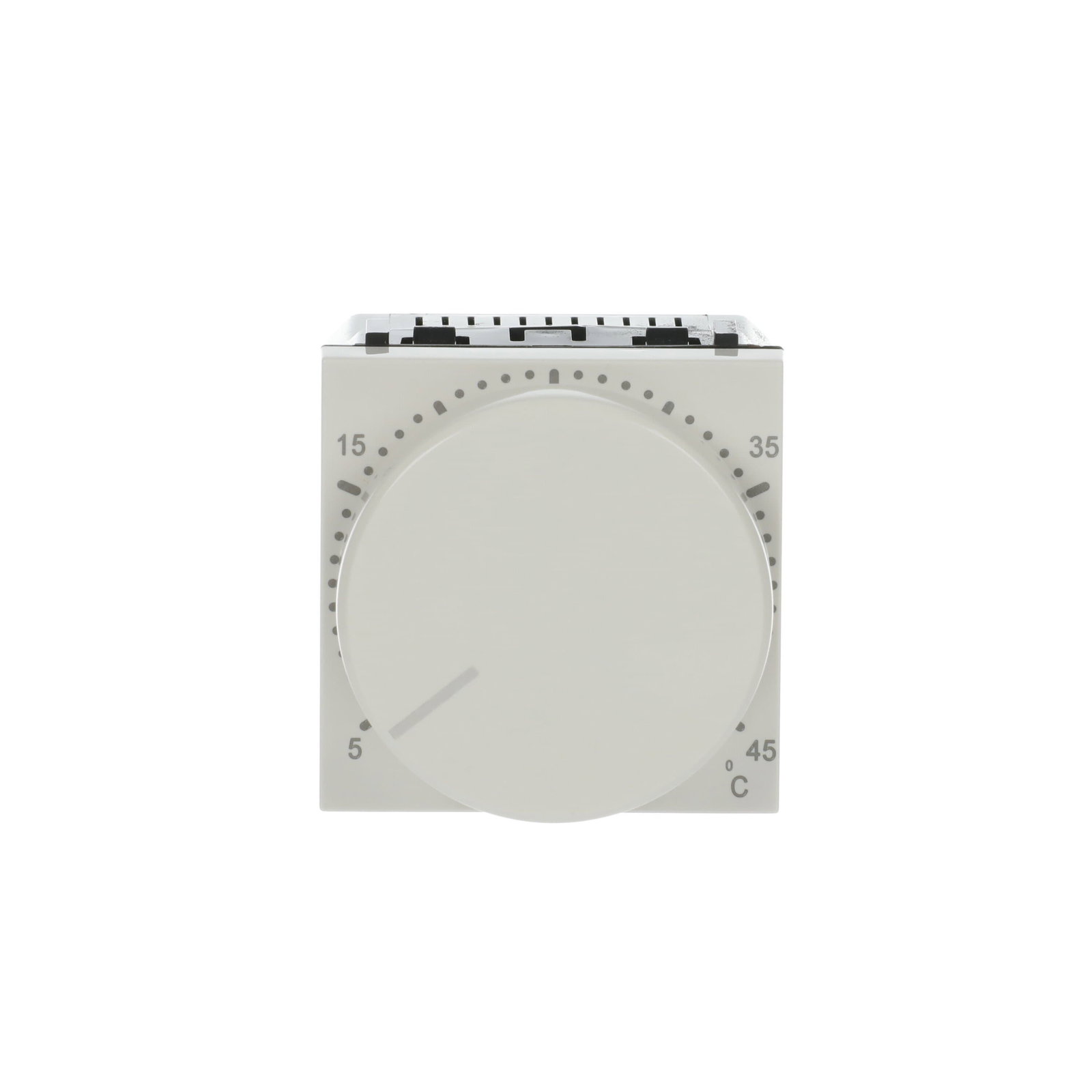

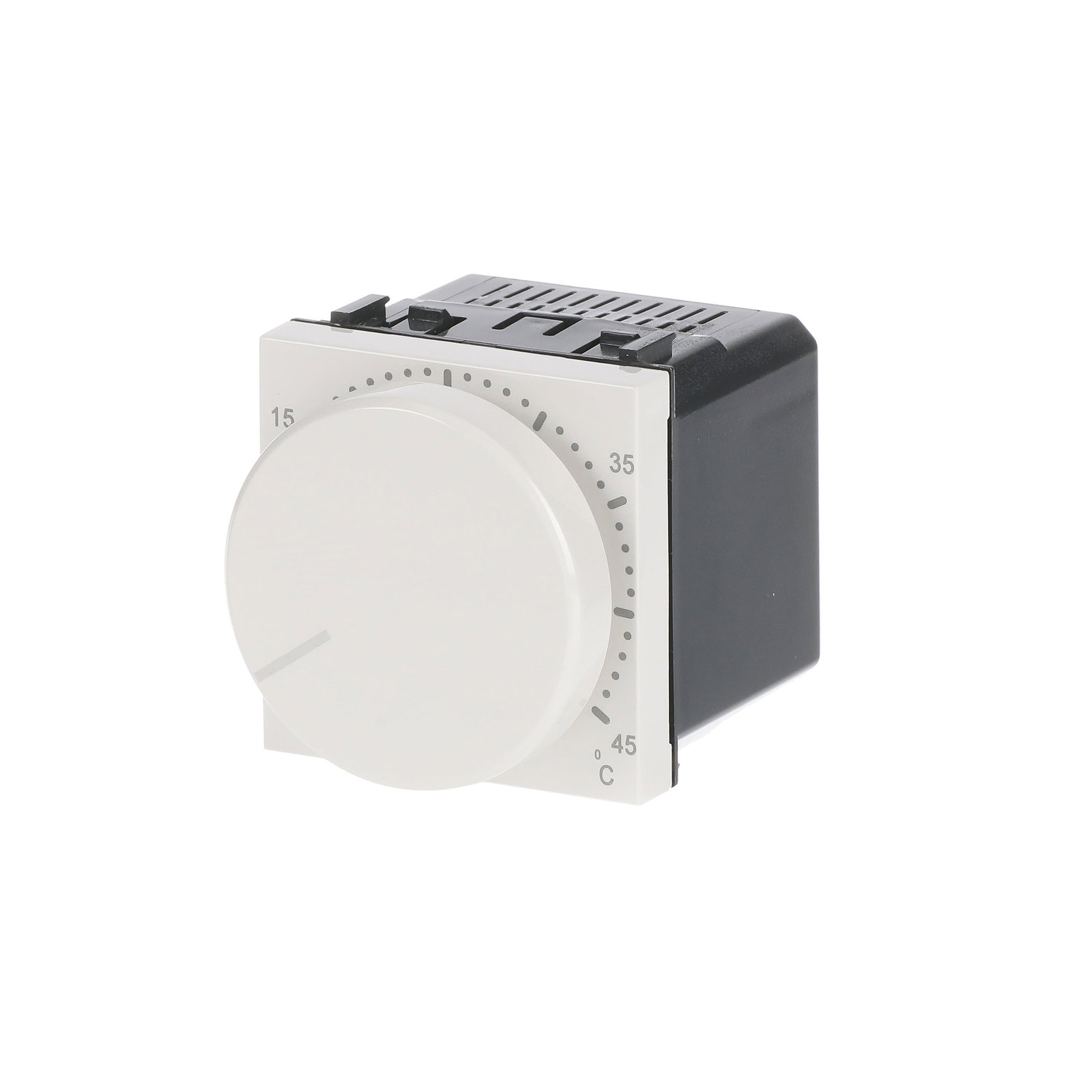

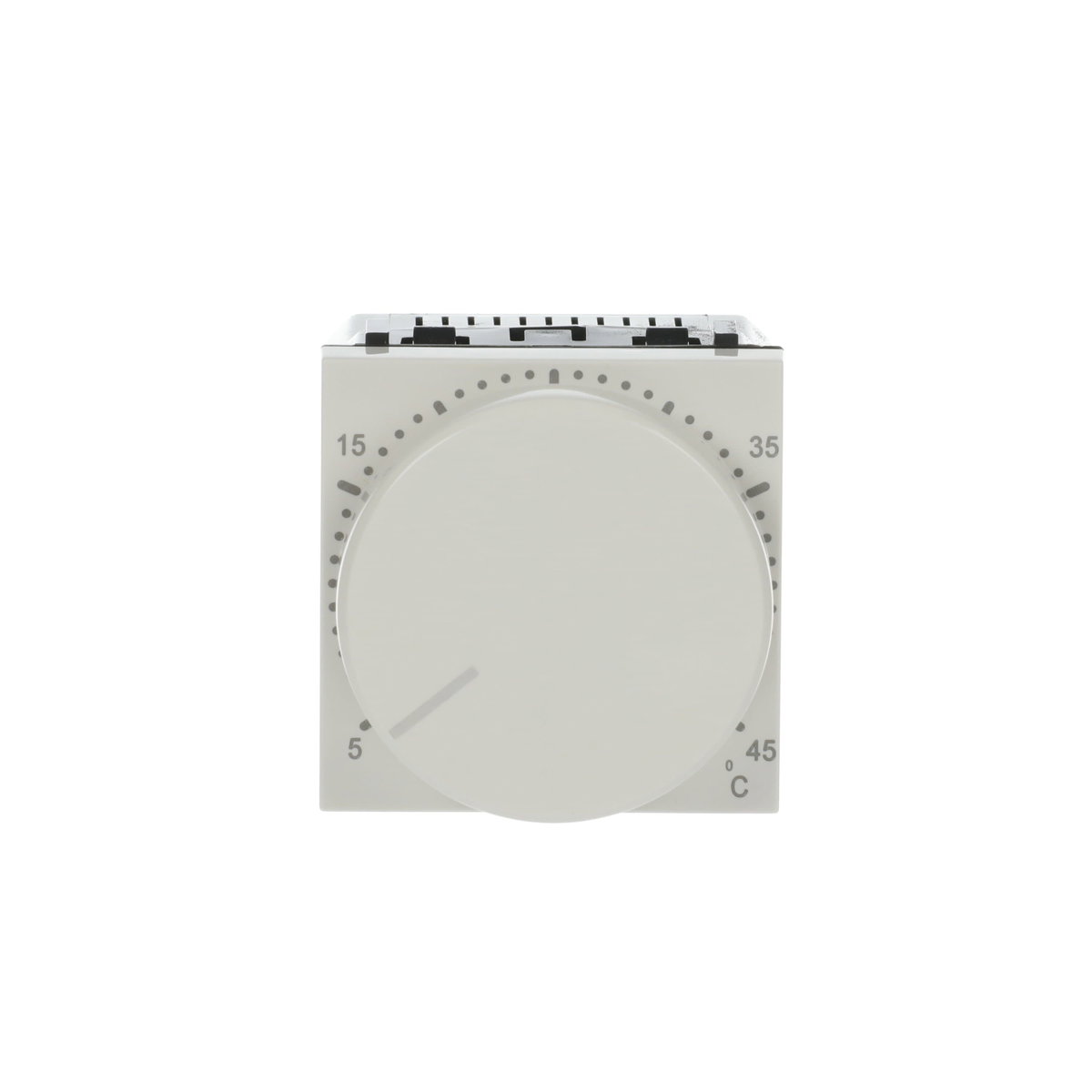

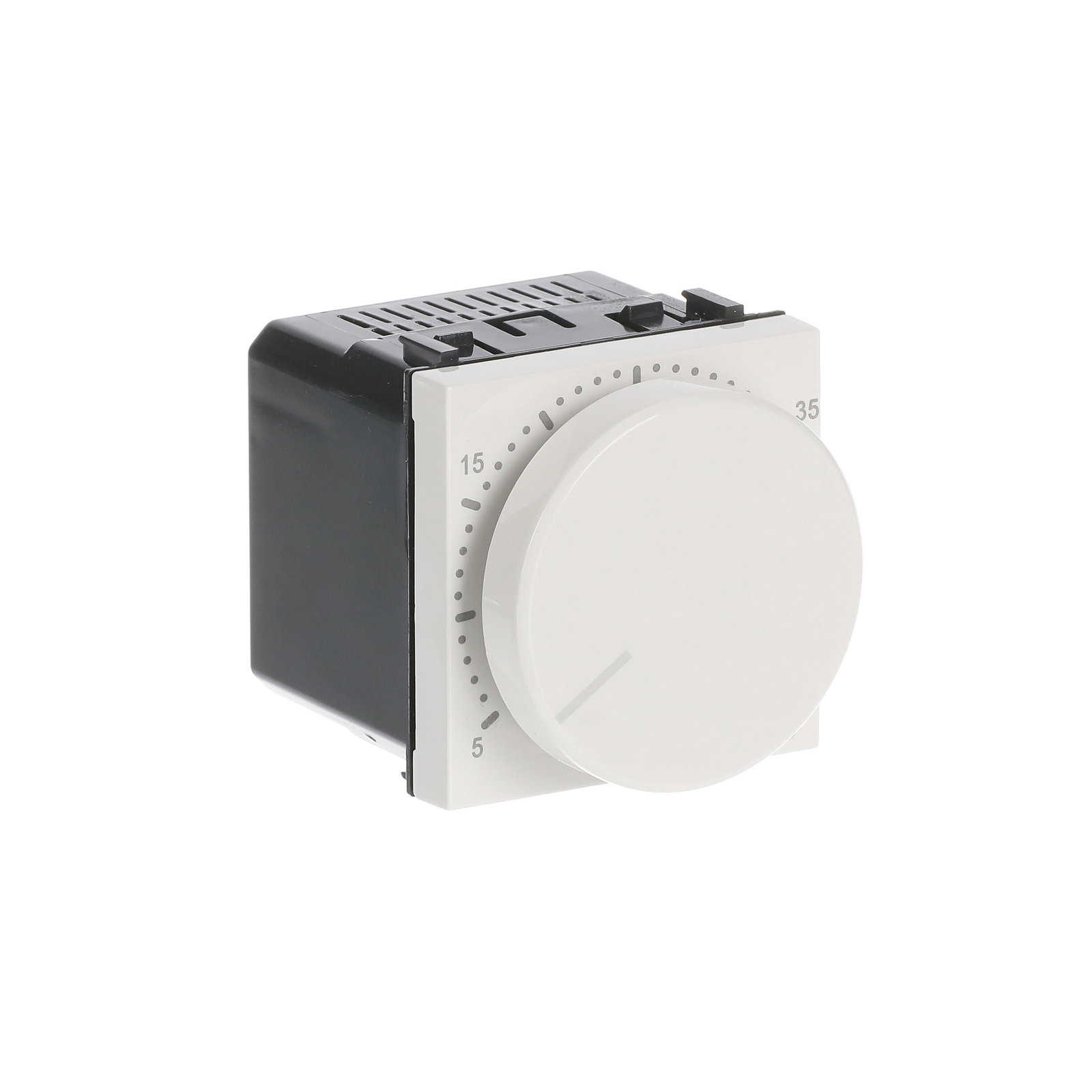

Termostato Heater 1gang Bianco - Zenit
1 / 3
Termostato Heater 1gang Bianco - Zenit
Color: White.
Rated voltage: 230 Vac ±10% / 50-60 Hz.
Load power: 2.300 W.
Load type: floor heating resistor.
Control temperature: +5ºC to +45ºC (Set point).
OFF state: at OFF position, the thermostat is off, so that it does not address the temperature measured by the floor temperature probe. The relay output contact is open.
Temperature accuracy: 0,5º C.
Hysteresis: 0,5º C.
Floor temperature sensor: NTC, 10 KΩ at 25º C,
-40º C. to 80º C. Double isolated cable, 4 m. length.
LED light indication: Red and green.
Ambient temperature: -20º C to 45º C.
Size: 2 modules.
Codici prodotto
SKU: Z1204BL
EAN: 8427238099194
GTIN: 8427238099194
MPN: N2240.3 BL
Specifiche tecniche
| Colore | Bianco |
| Altezza | 44 mm |
| Comando | - |
| Diametro | 43.9 mm |
| Larghezza | 44 mm |
| Tipologia | - |
| Numero RAL | 9010 |
| Con display | no |
