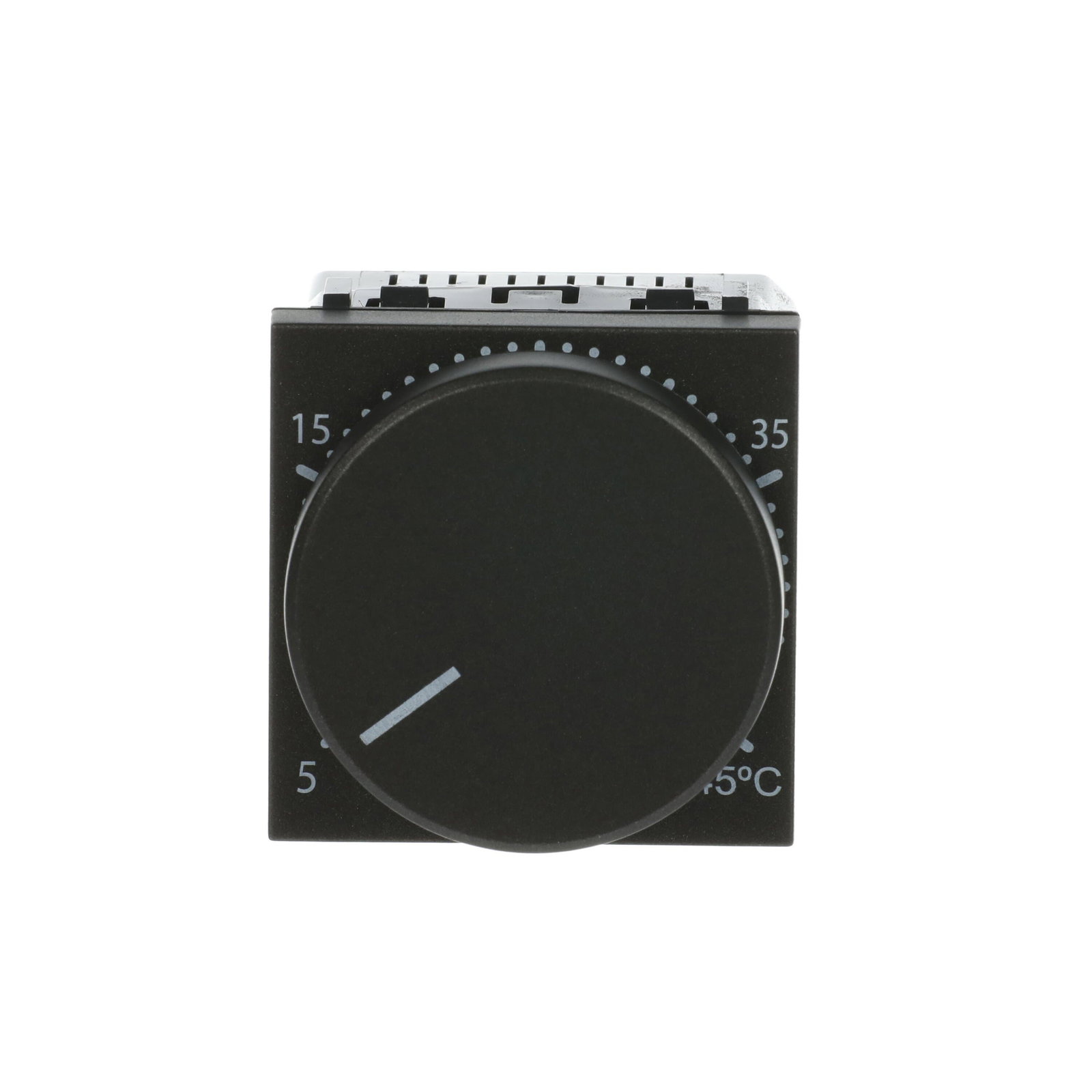

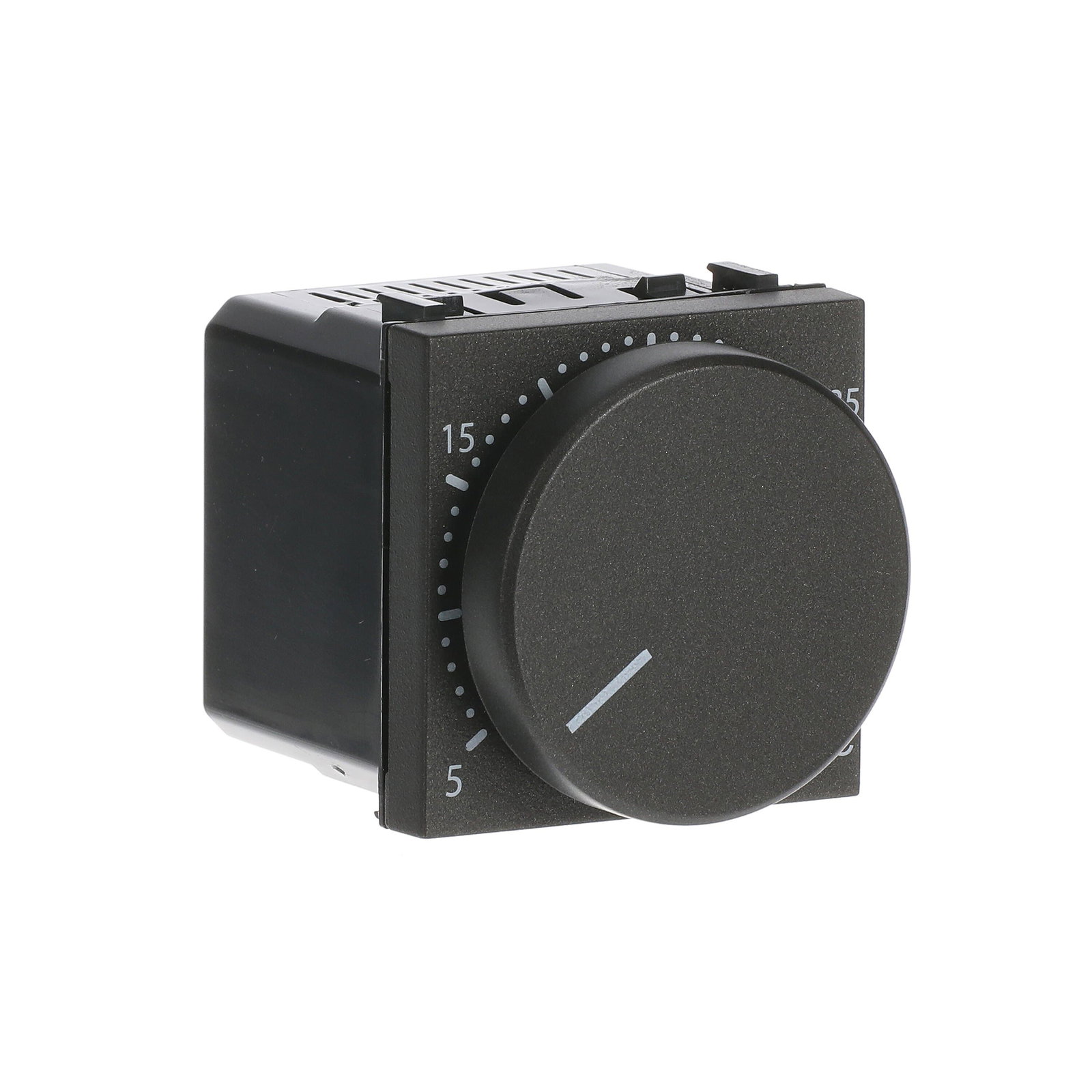

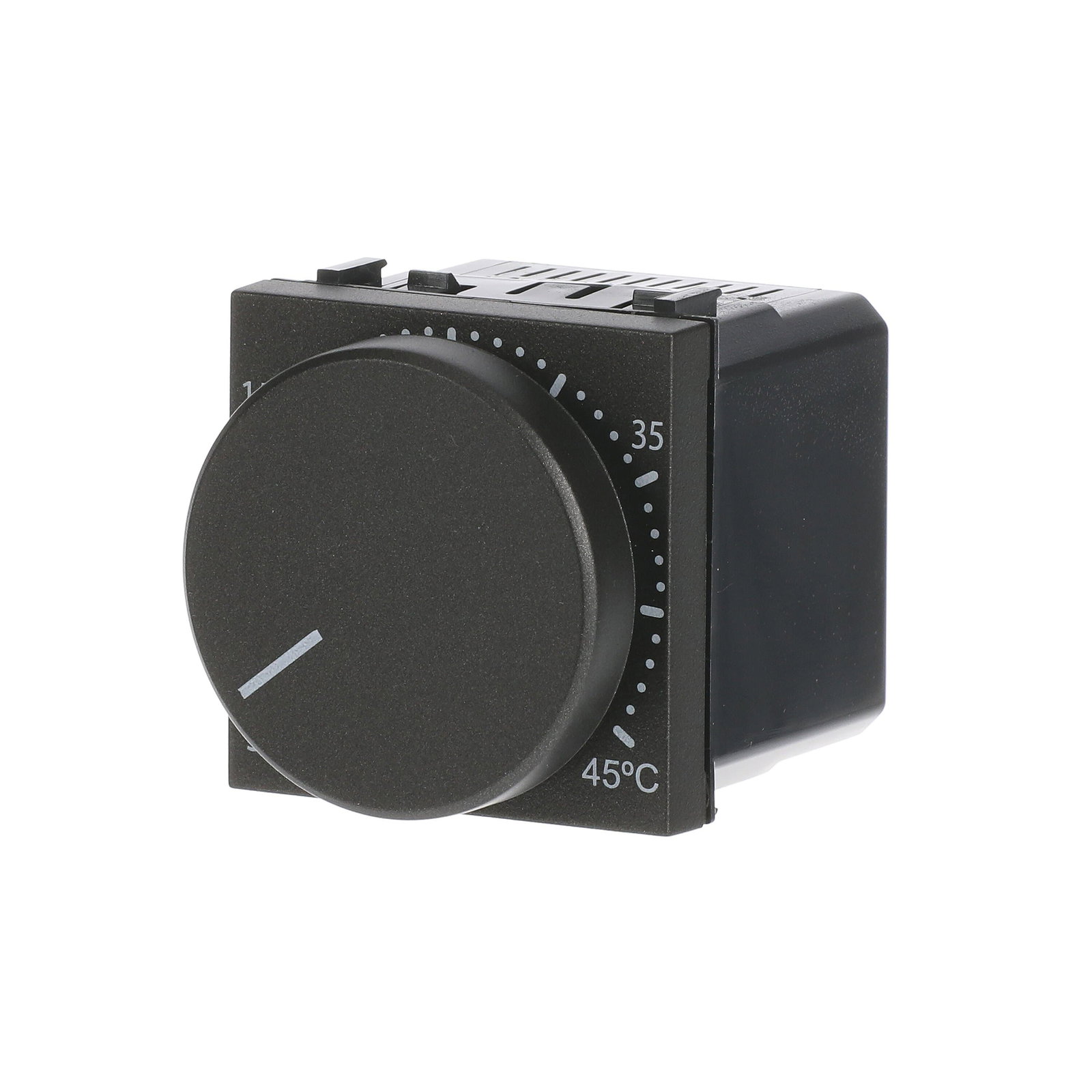

Termostato Heater 1gang Antracite - Zenit
1 / 4
Termostato Heater 1gang Antracite - Zenit
Termostato Heater 1gang Antracite - Zenit di ABB è disponibile presso 1 grossista elettrico su Voltimum IT, tra cui MEF.
Color: Anthracite.
Rated voltage: 230 Vac ±10% / 50-60 Hz.
Load power: 2.300 W.
Load type: floor heating resistor.
Control temperature: +5ºC to +45ºC (Set point).
OFF state: at OFF position, the thermostat is off, so
that it does not address the temperature measured by
the floor temperature probe. The relay output contact
is open.
Temperature accuracy: 0,5º C.
Hysteresis: 0,5º C.
Floor temperature sensor: NTC, 10 KΩ at 25º C,
-40º C. to 80º C. Double isolated cable, 4 m. length.
LED light indication: Red and green.
Ambient temperature: -20º C to 45º C.
Size: 2 modules.
Codici prodotto
SKU: Z1204AN
EAN: 8427238099415
GTIN: 8427238099415
MPN: N2240.3 AN
Specifiche tecniche
| Colore | Antracite |
| Altezza | 44 mm |
| Comando | - |
| Diametro | 43.9 mm |
| Larghezza | 44 mm |
| Tipologia | - |
| Numero RAL | - |
| Con display | no |
