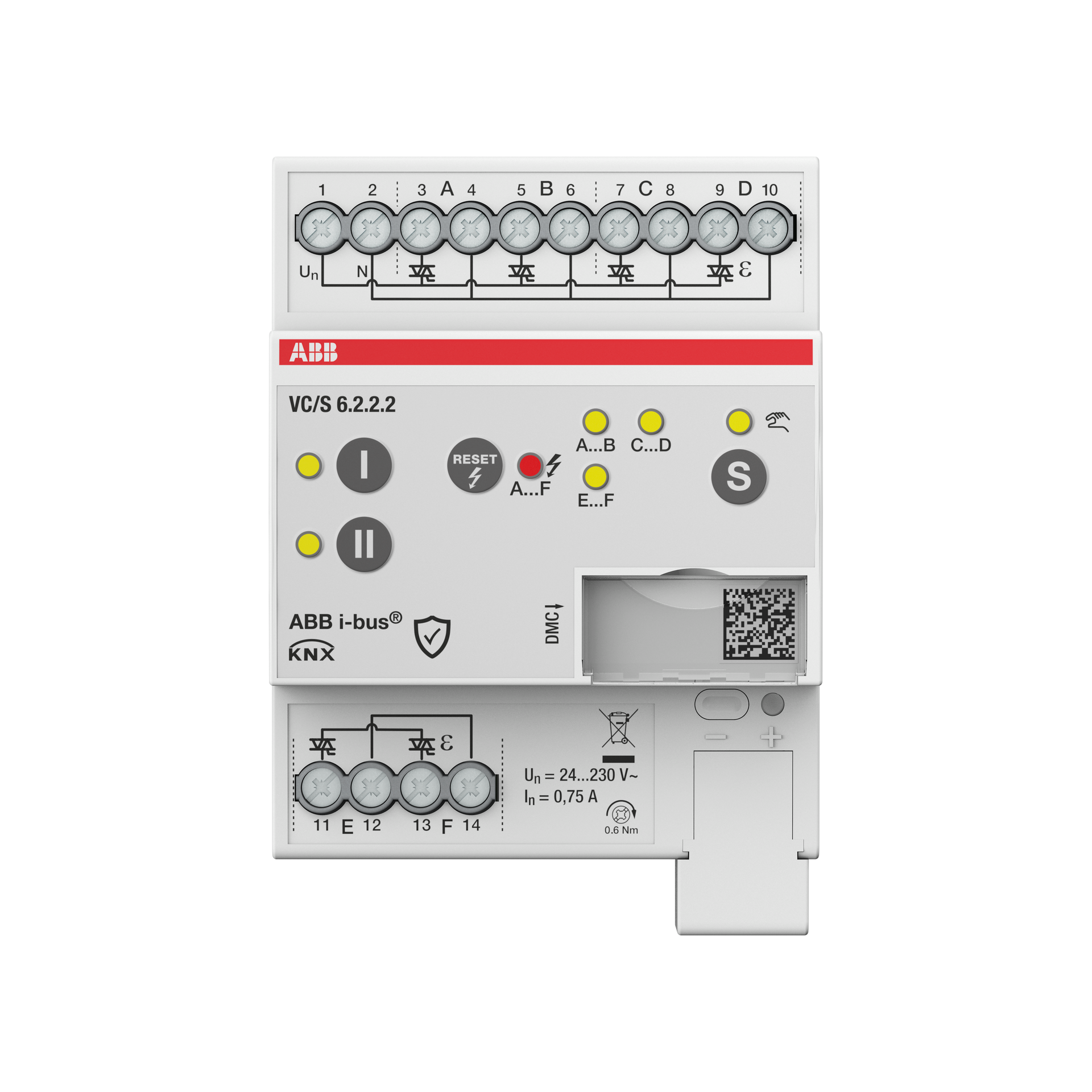

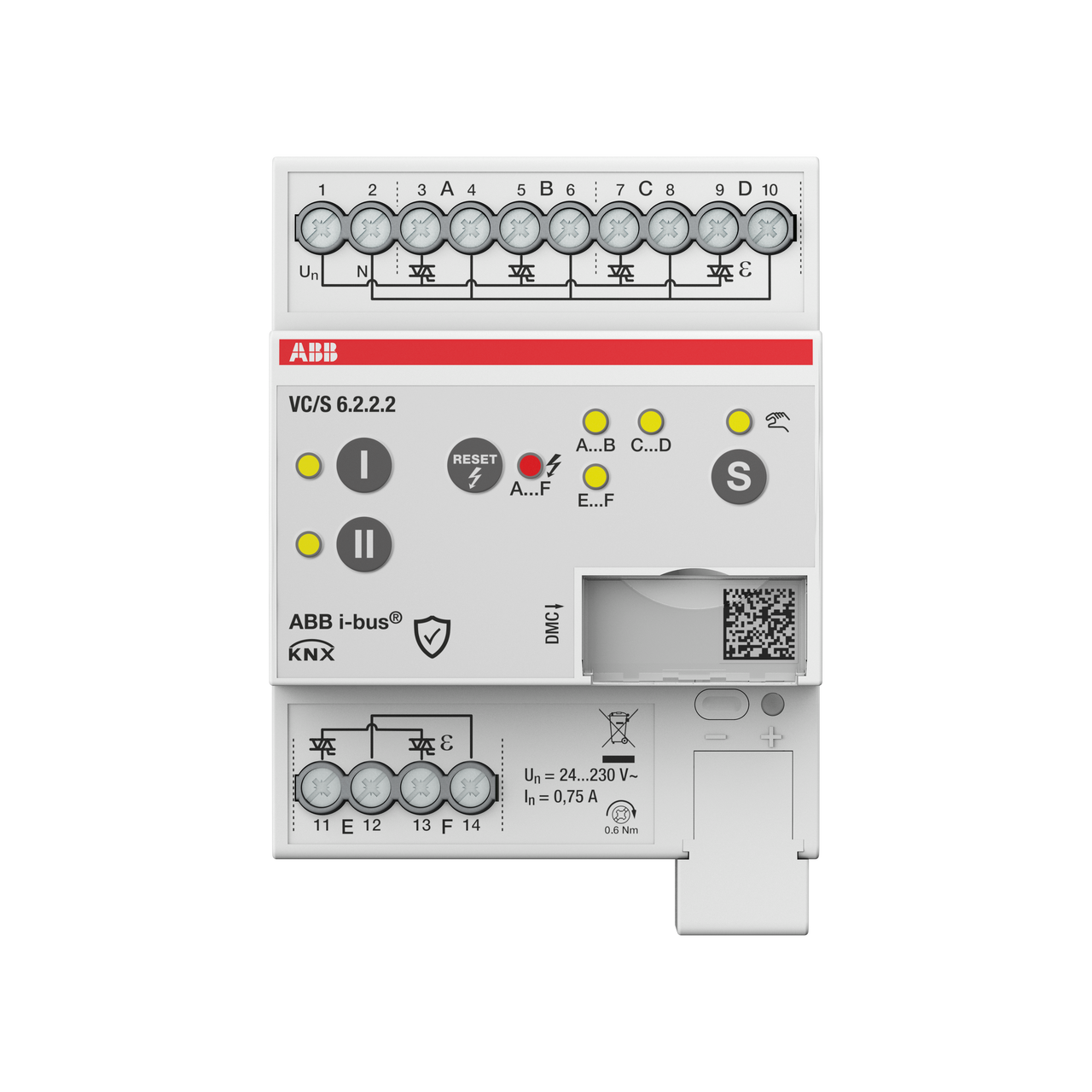

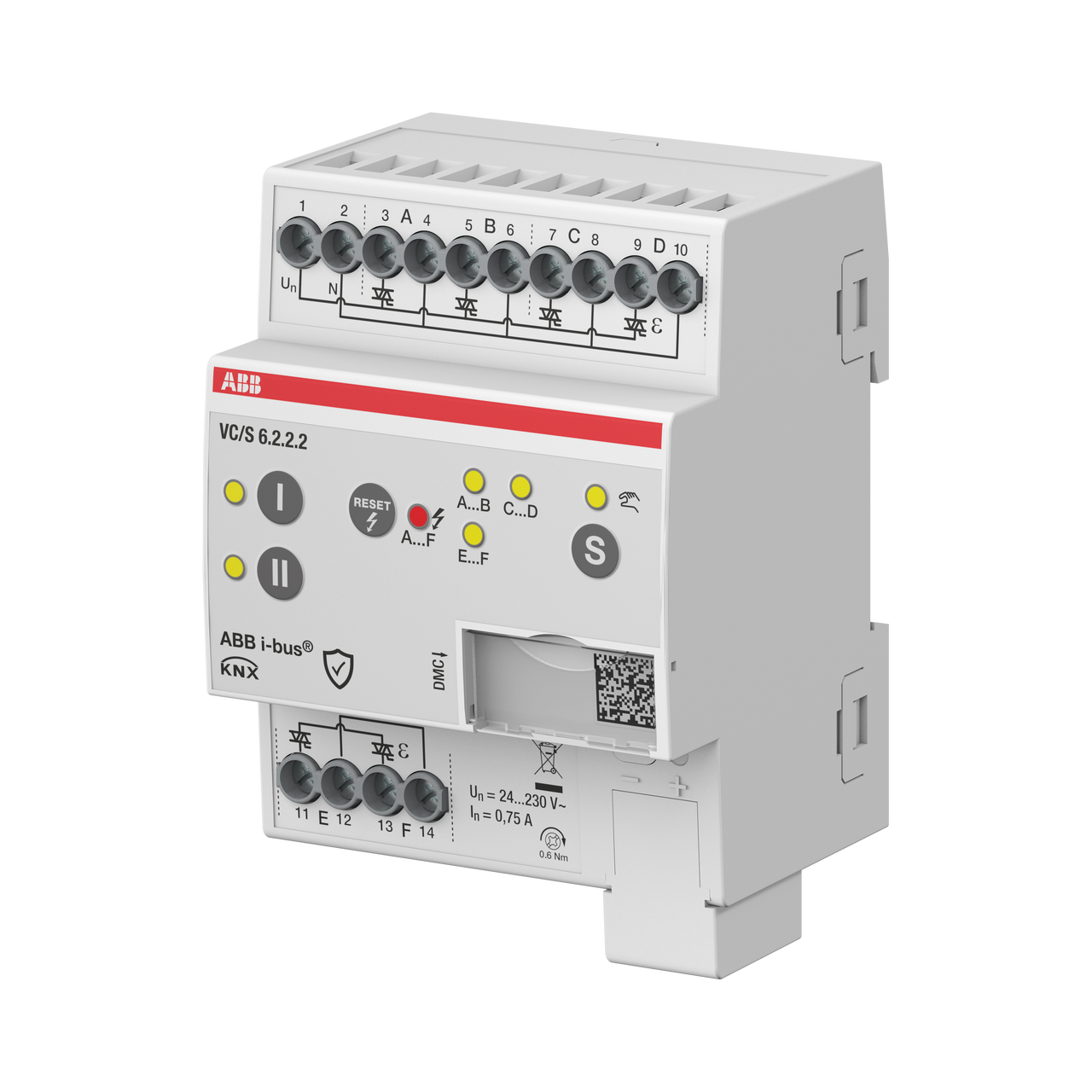

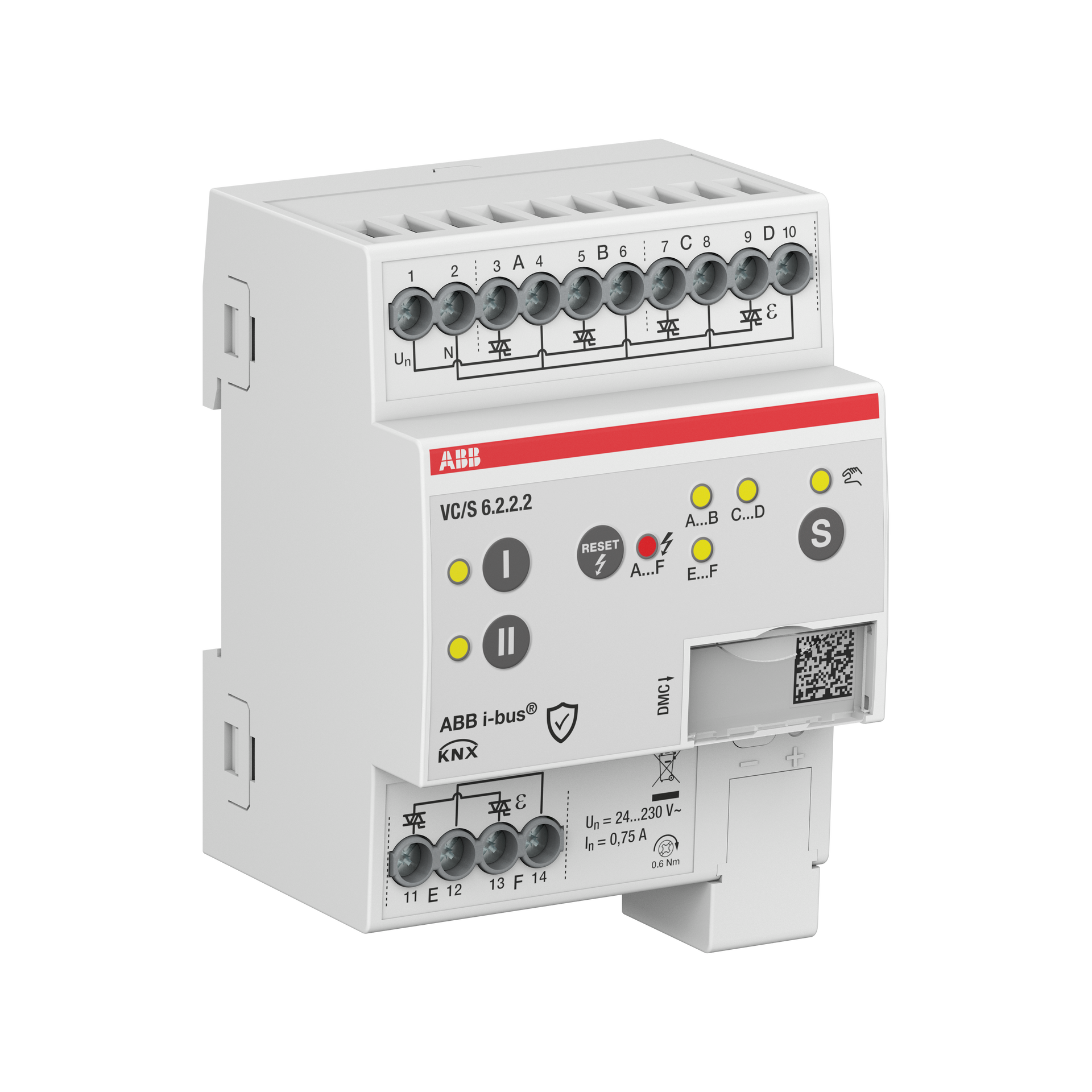

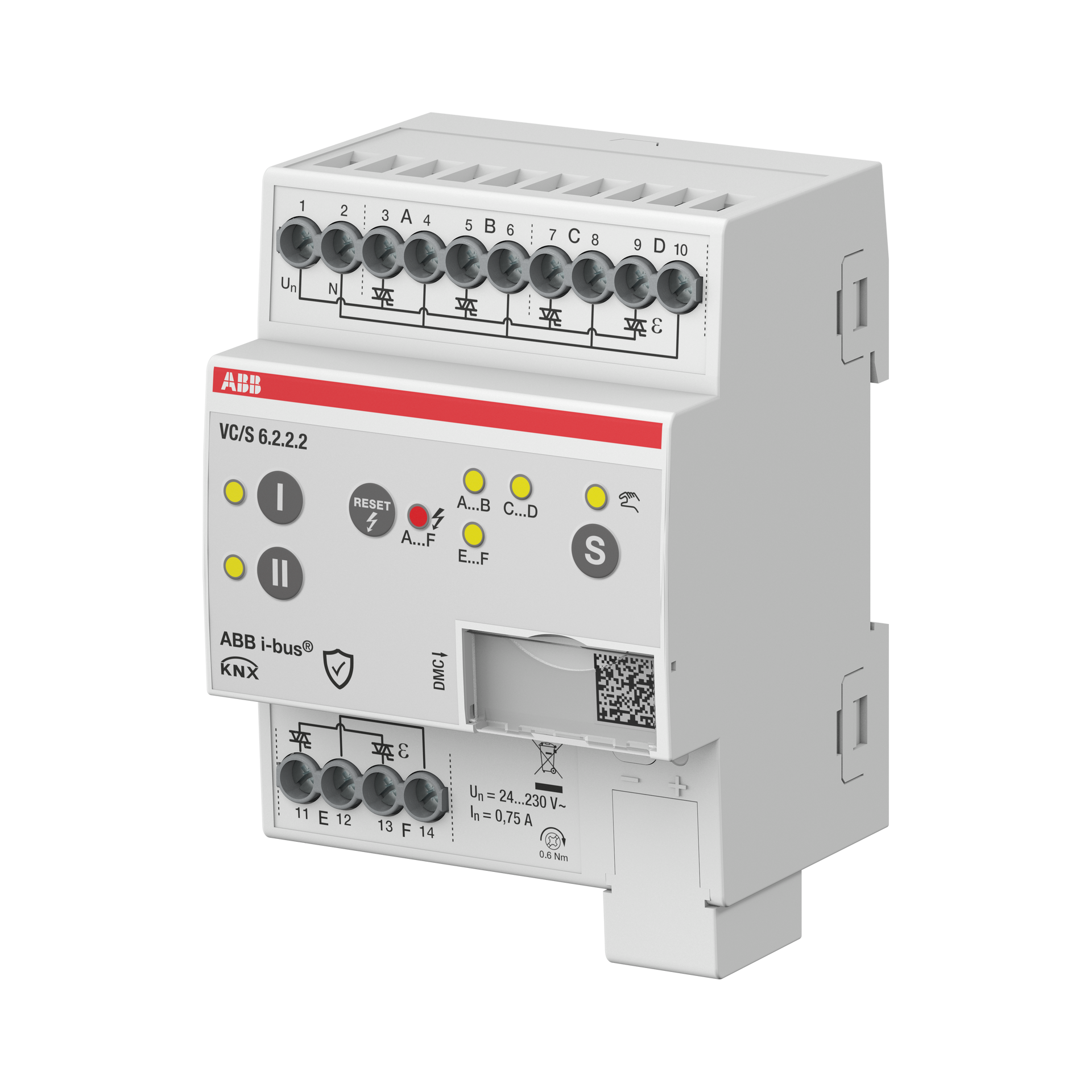

VC/S6.2.2.2 Valve Drive Controller, 6-fold, Manual Operation, MDRC
For the control of heating and cooling applications within a room, such as radiators, floor heating, or cooling ceilings. The device features 6 electronic valve outputs for controlling thermoelectric valve drives (e.g., TSA/K) operating at 24...230 V AC. The outputs are protected against short circuits and overload. Control of the valve outputs can be achieved through either an internal or an external room temperature controller. Push buttons are located at the front of the device to control the outputs, e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected. The devices support KNX Data Secure.
Codici prodotto
SKU: 2CDG110330R0011
EAN: 4053546178616
GTIN: 4053546178616
MPN: VC/S6.2.2.2
Gruppo ETIM
Specifiche tecniche
| Sistema bus LON | no |
| Numero di uscite | 6 |
| Altri sistemi bus | Senza |
| Numero moduli DIN | 4 |
| Sistema bus radio | no |
| Tipo di montaggio | Altro |
| Radio bidirezionale | - |
| Sistema bus EIB/KNX | si |
Documenti
Deeplink product page
Deeplink REACH
9AKK108472A2583_en_A_RoHS Exemption Information.pdf
Dimensioned drawing
4_TE_MB_XX_V1-0_2CDC072033F0015_Rev_A.eps
Instructions for use
VCS_x222_MBA_XX_V1-0_2CDG941279P0001_Rev_B.pdf
Product data sheet
Declaration RoHS
9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf
Declaration DOC CE (Declaration of conformity CE)
VCS-6_2_2_2_CE-ROHS_9AKK108464A0999.pdf
