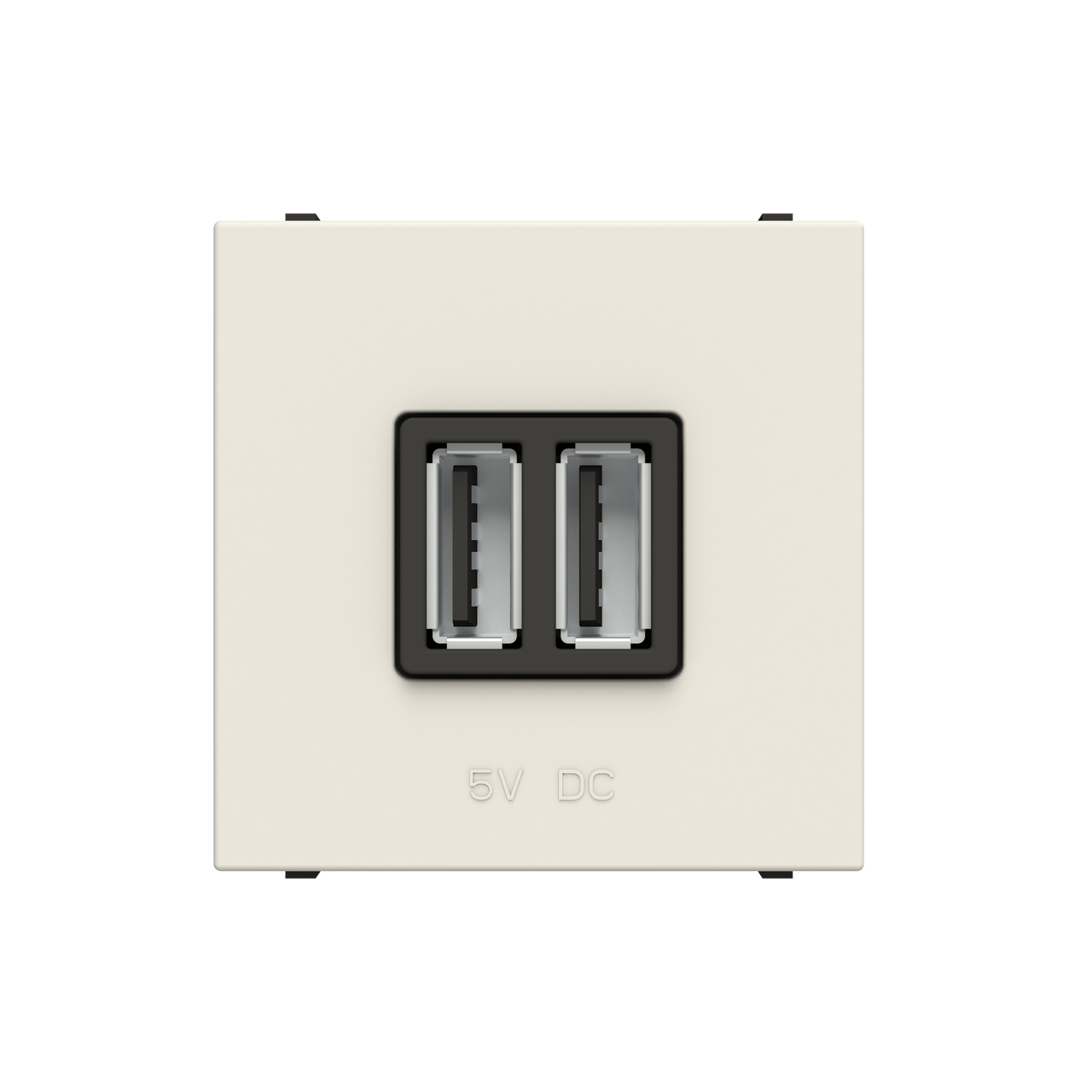

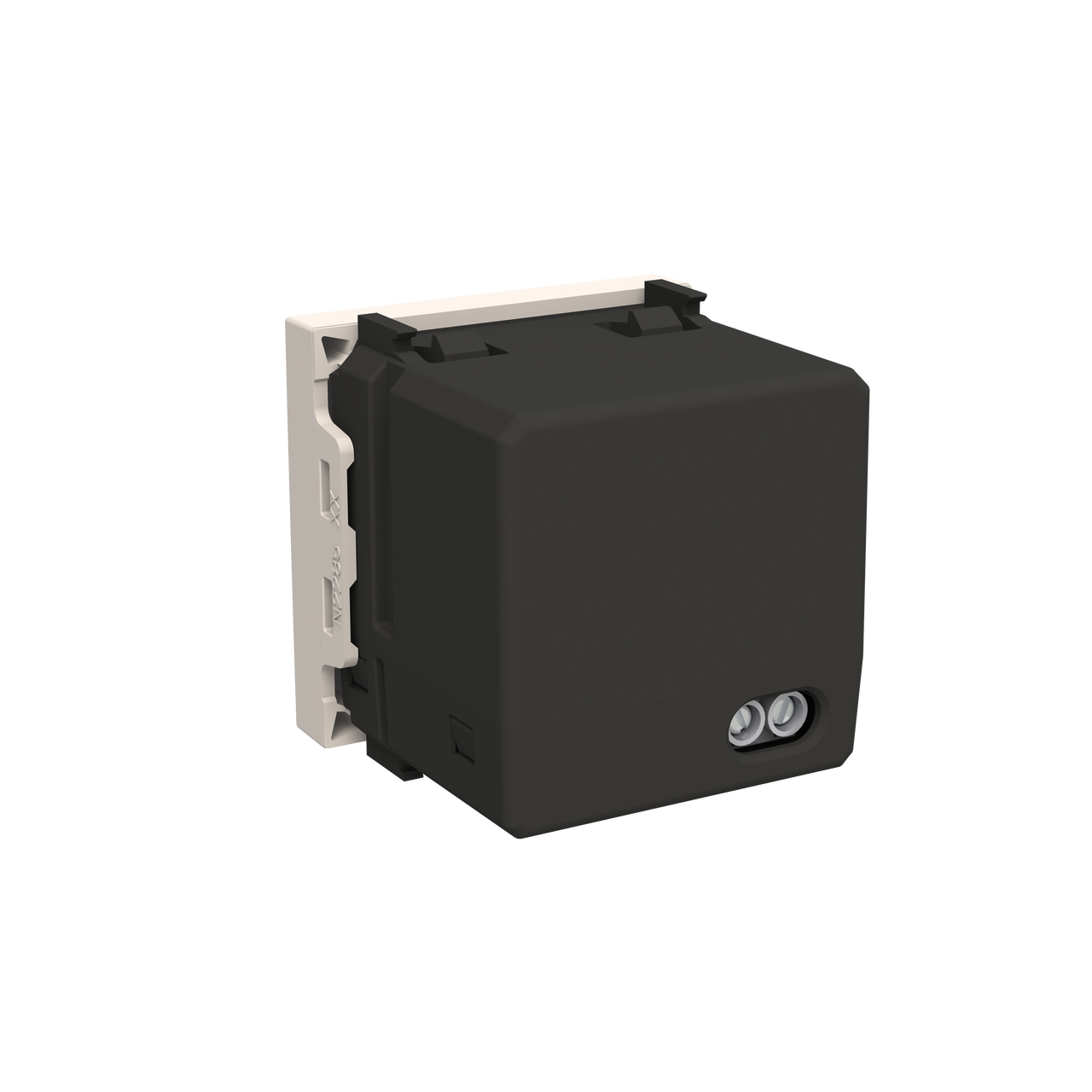

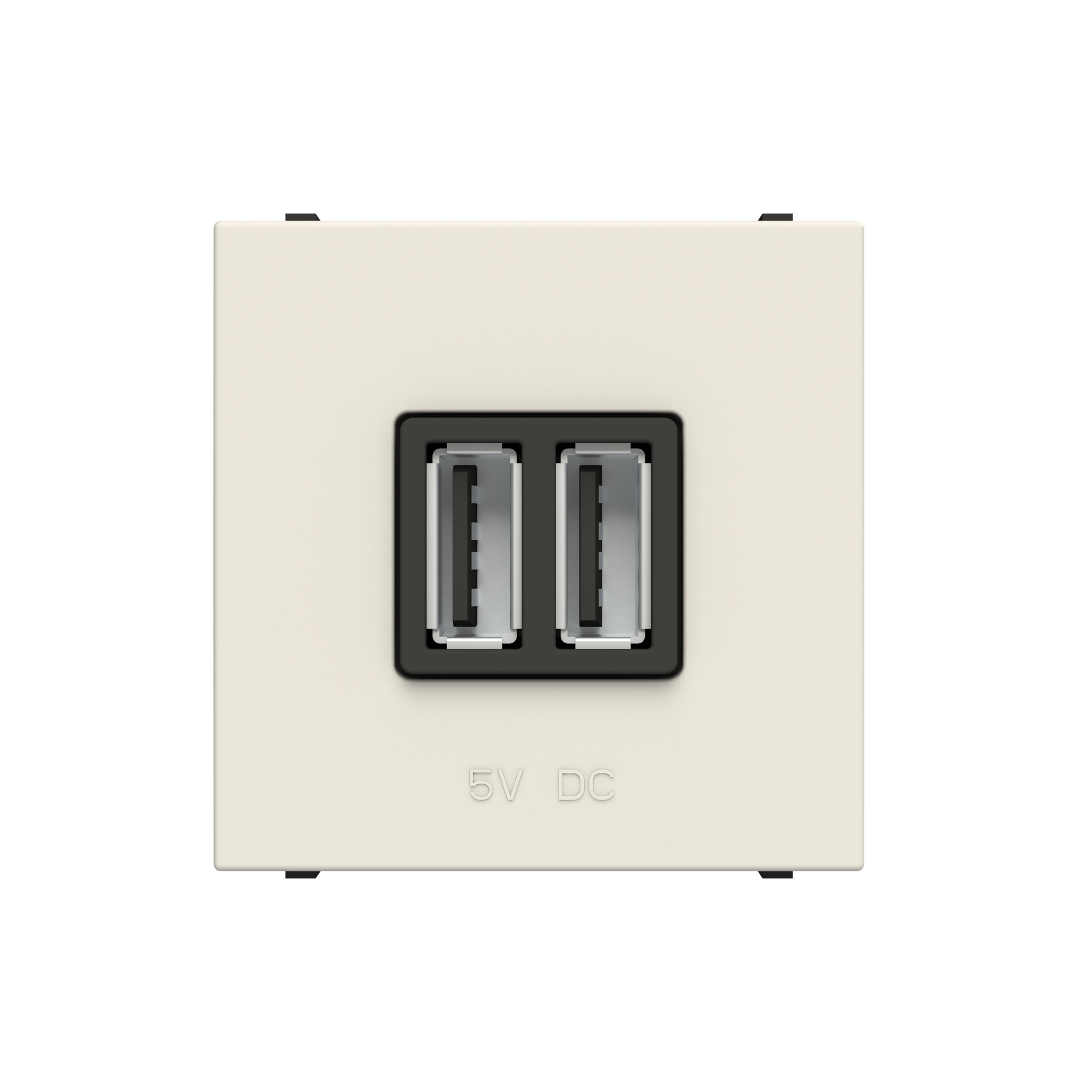

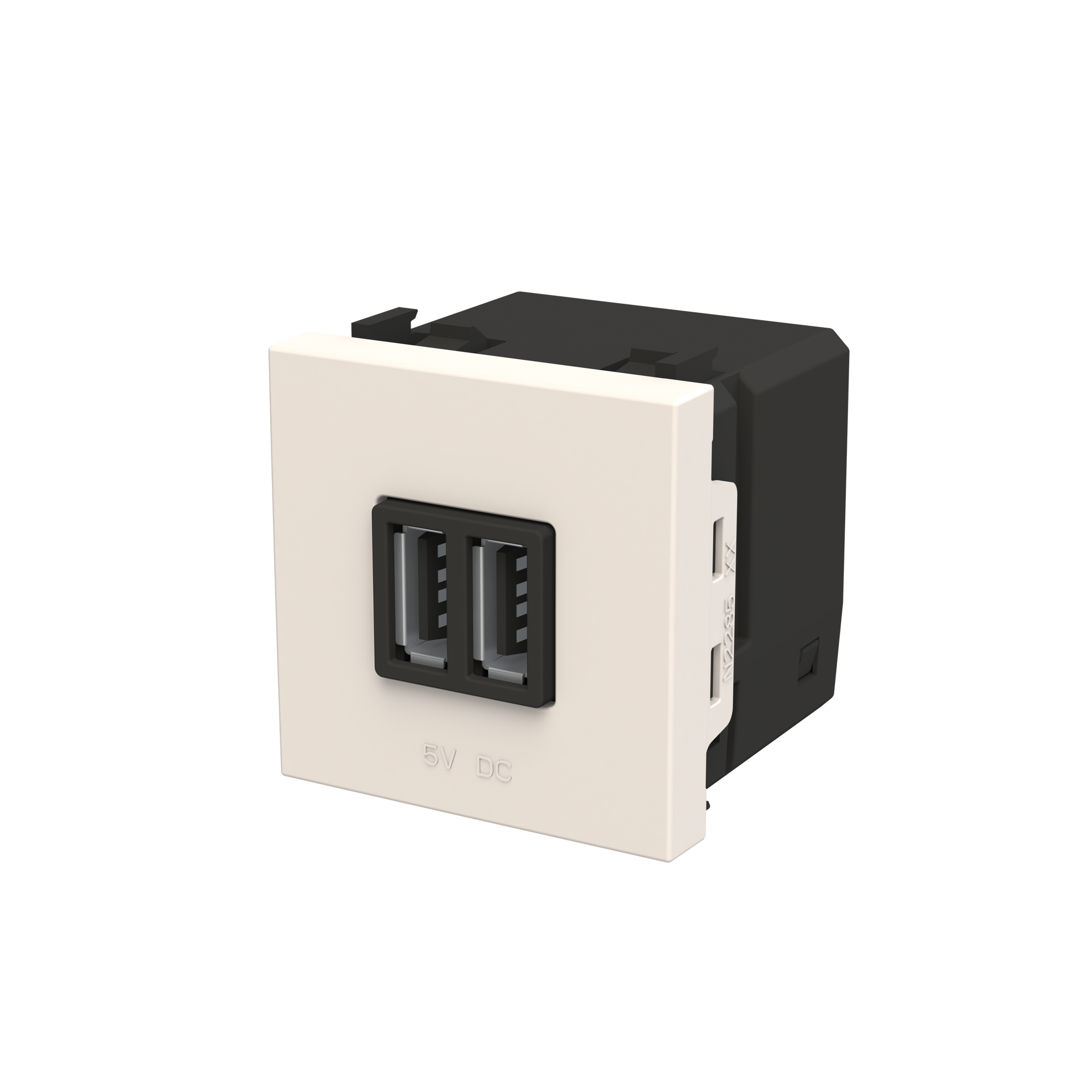

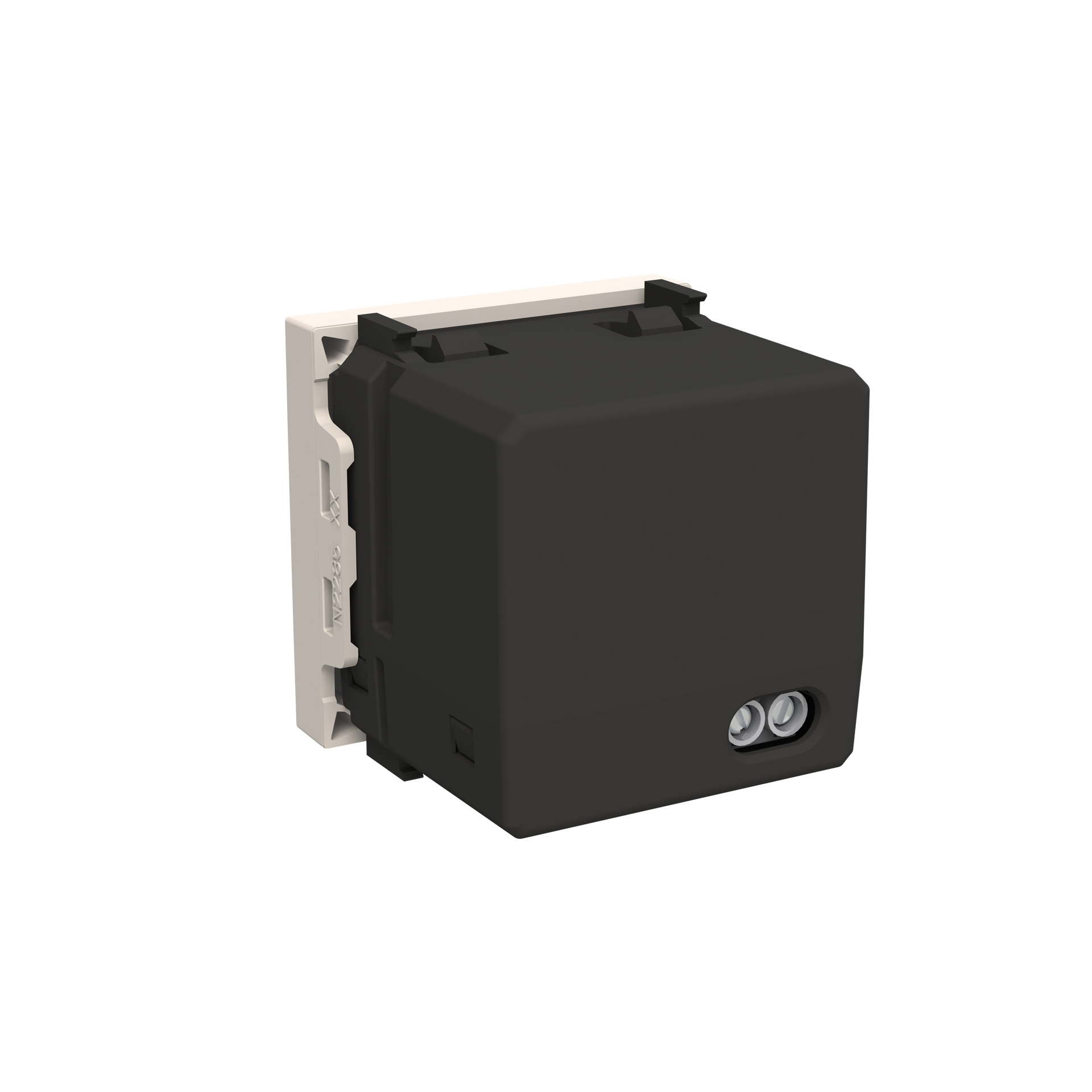

USB charger Breakout cable with USB A White - Zenit
1 / 3
USB charger Breakout cable with USB A White - Zenit
Color: White.
Input voltage: 100 - 240 Vac ±10%; 50/60 Hz
Input current: 0,20 A (with maximum load)
Output voltage: 5 Vdc ±5%
Output current: 1.500 mA (total for both gangs)
Power consumption in stand-by: <= 0,3W@230Vac
Energy efficiency: >= 71%
Operating temperature: 0ºC to 35ºC
Size: 2 modules.
Codici prodotto
SKU: Z1162BL
EAN: 8427238107318
GTIN: 8427238107318
MPN: N2285 BL
Specifiche tecniche
| Colore | Bianco |
| Frequenza | 50 - 60 Hz |
| Tipologia | Cavo breakout |
| Numero RAL | 9010 |
| Tensione d'uscita | 5 - 5 V |
| Tipo di montaggio | Supporto modulo |
| Resistenza agli urti | IK00 |
| Tensione d'esercizio | 100 - 240 V |
Documenti
Deeplink product page
Deeplink REACH
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen.pdf
Instructions for use
2CLX228519N1001.pdf
Product data sheet
Declaration RoHS
2CLA228500N1101_RoHS Declaration.pdf
Declaration DOC CE (Declaration of conformity CE)
DofC Niessen USB charger devices_B.pdf
