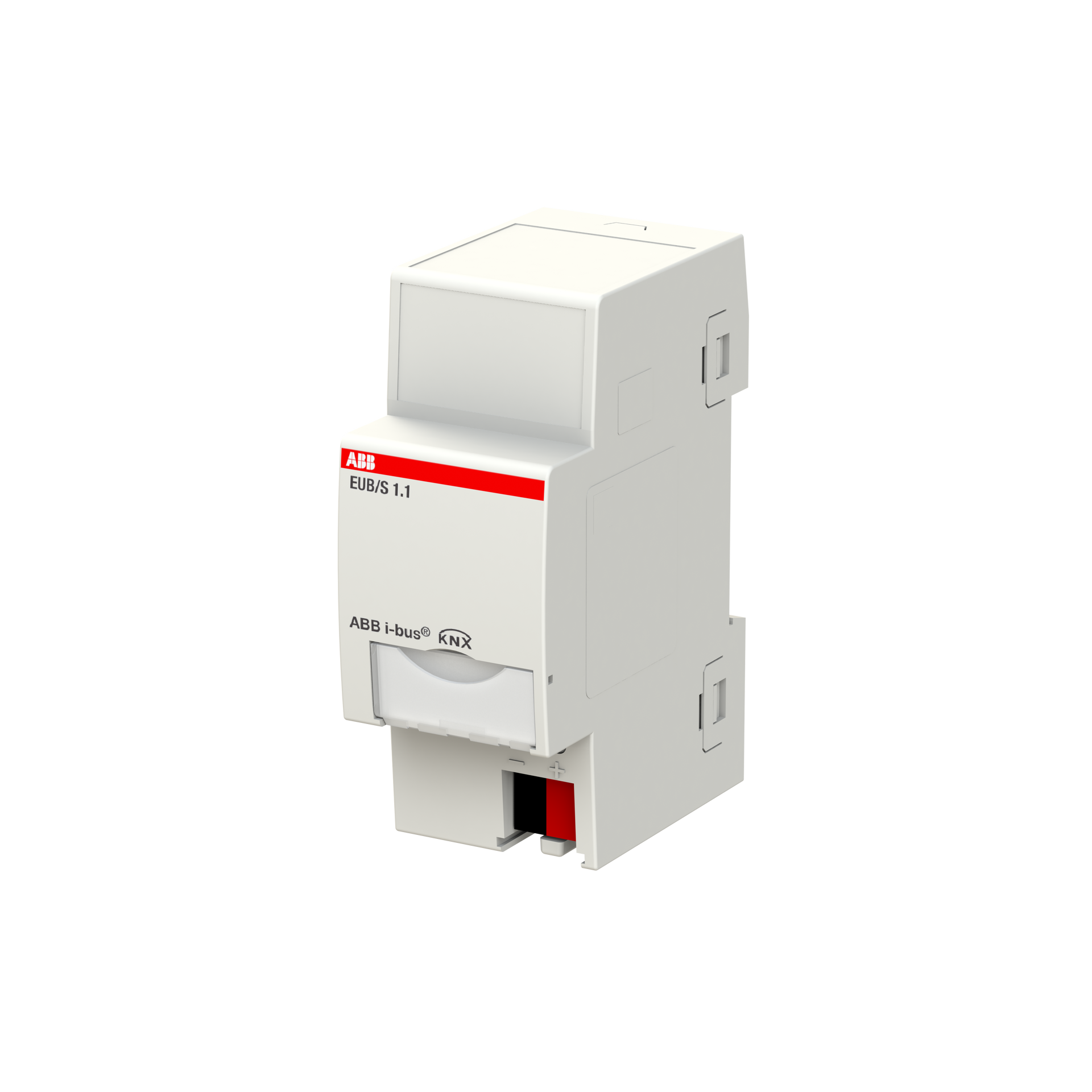

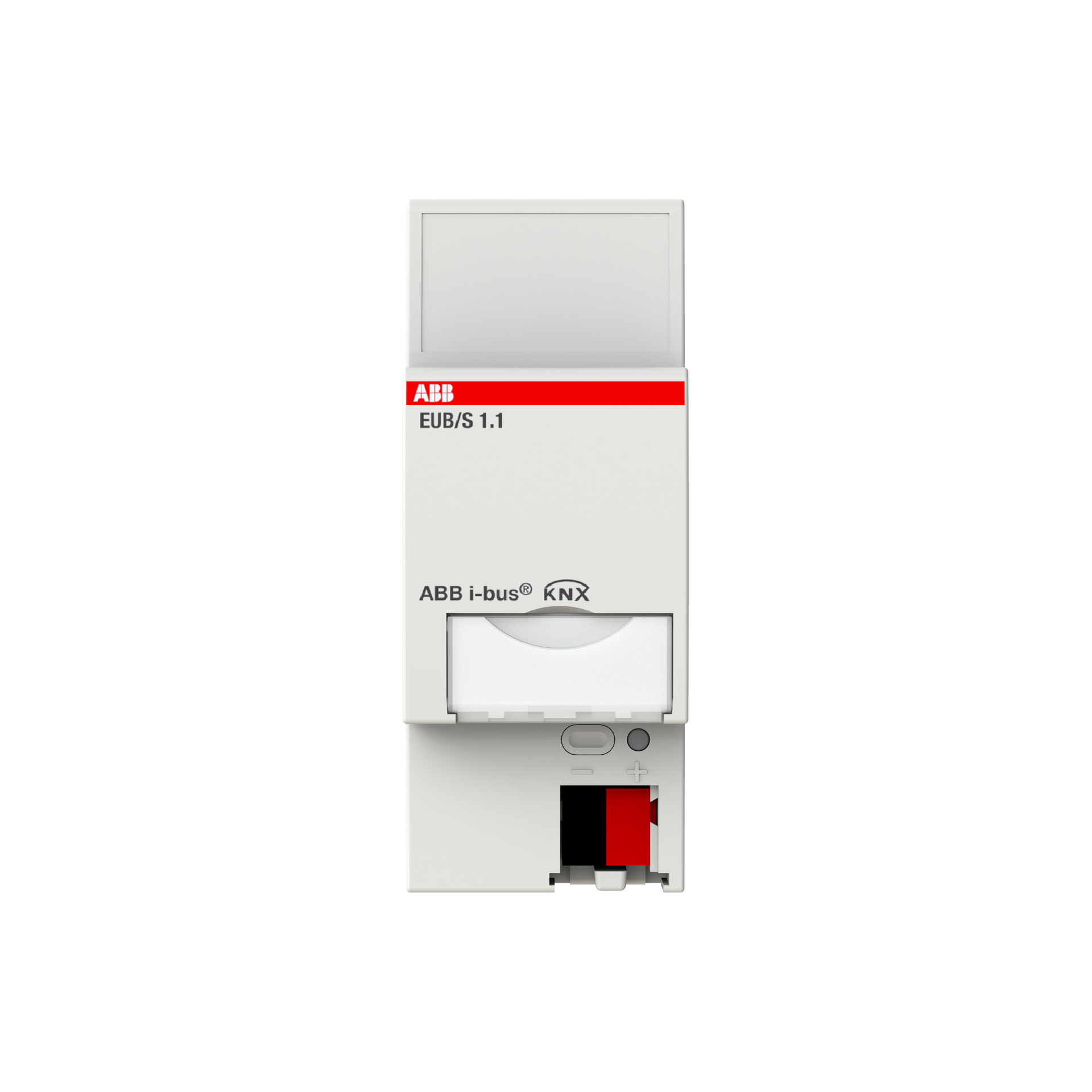

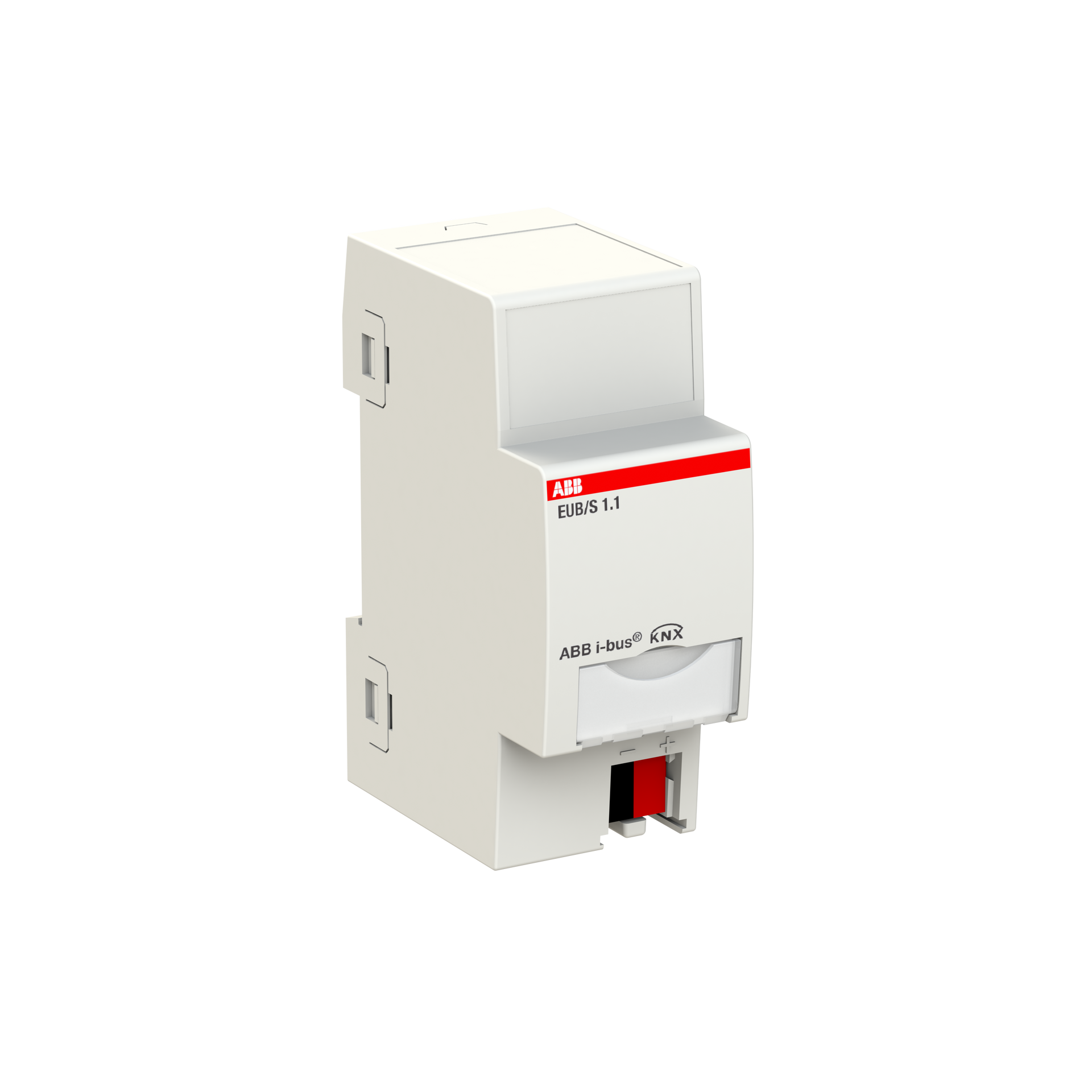

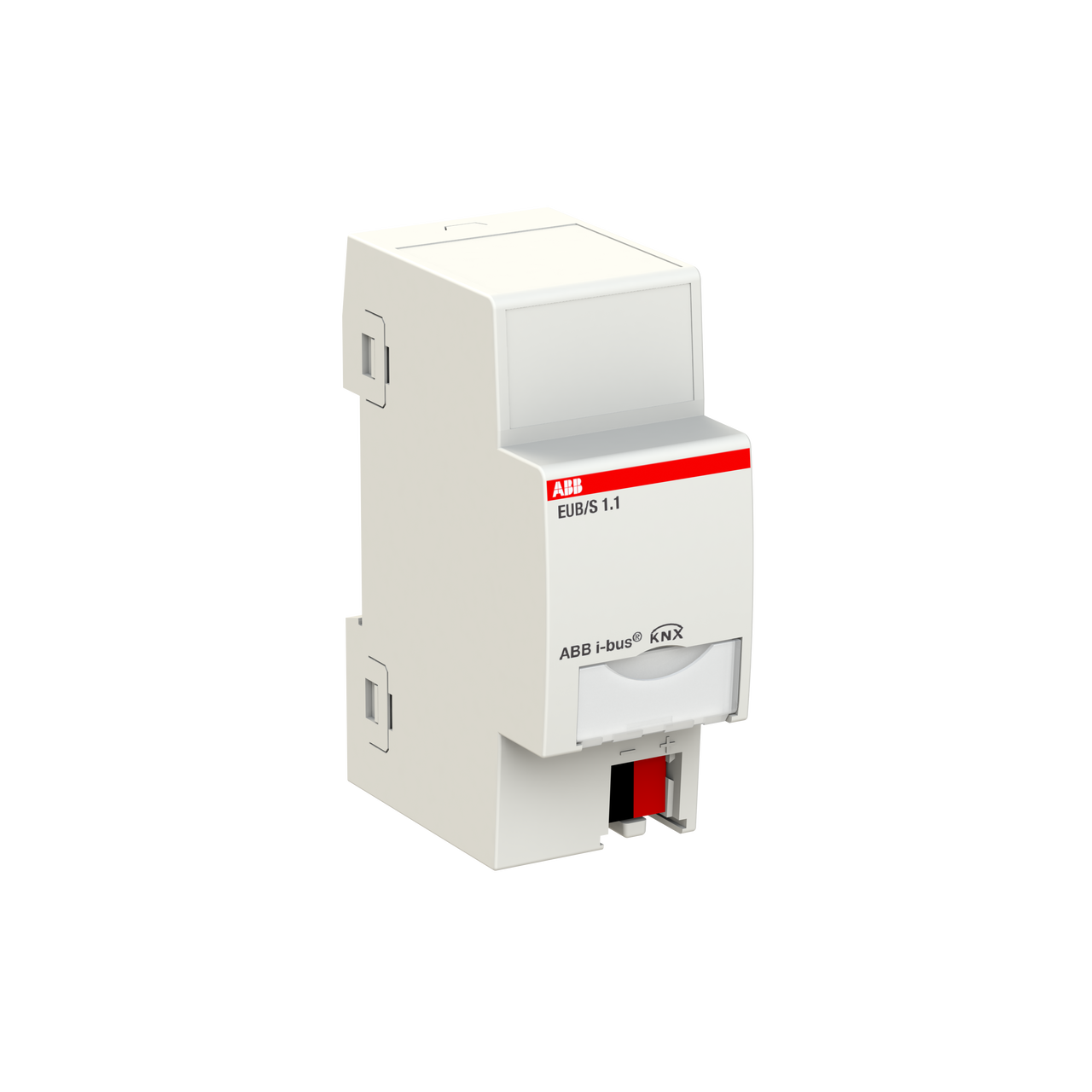

EUB/S1.1 Unità di monitoraggio EIB, MDRC
Monitors up to 100 bus devices in KNX systems, which can be divided into 5 groups. The devices are monitored to ensure their presence and minimum functionality (send and receive). Monitoring can be undertaken based on the physical address or the group address. A total of four different monitoring modes are available. No additional power supply required, the device is powered from KNX bus.
Codici prodotto
SKU: EC 620 1
EAN: 4016779649919
GTIN: 4016779649919
MPN: EUB/S 1.1
Gruppo ETIM
Specifiche tecniche
| Modulo logico | si |
| Sistema bus LON | - |
| Altri sistemi bus | Senza |
| Numero moduli DIN | 2 |
| Sistema bus radio | - |
| Tipo di montaggio | AMD |
| Sistema bus EIB/KNX | si |
| Sistema bus Powernet | - |
