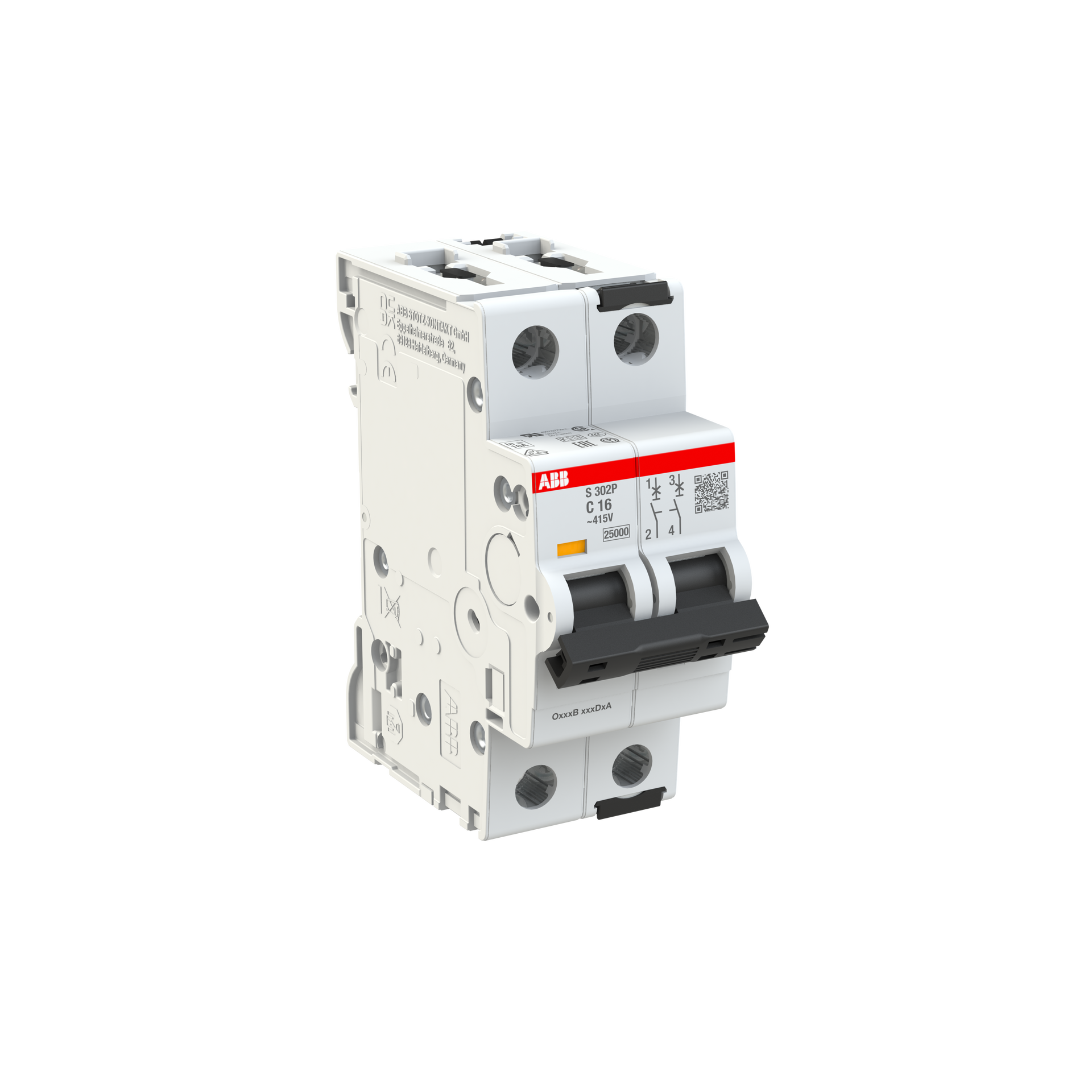

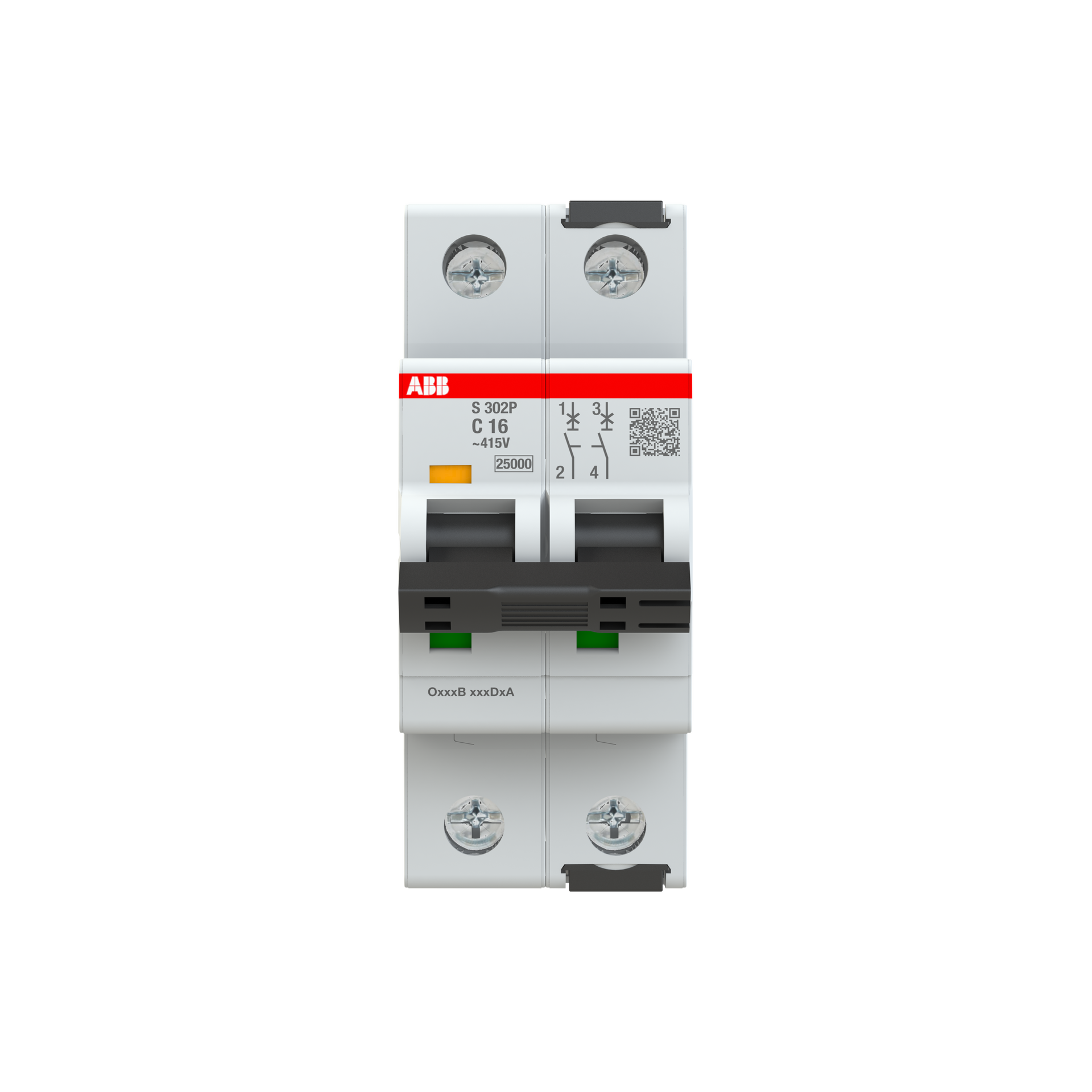

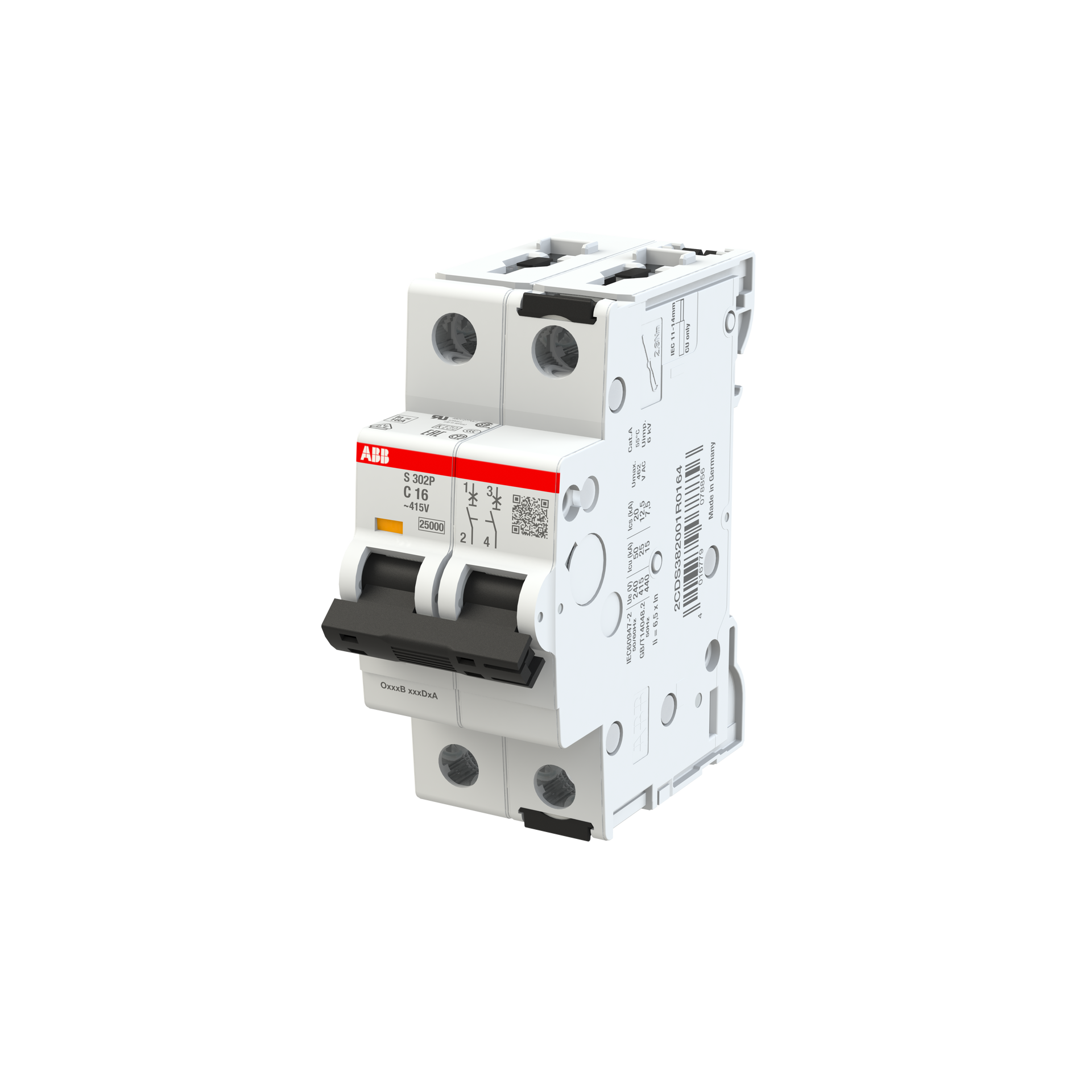

Miniature Circuit Breaker - S300P - 2P - 16 A - C - (AC) 25 kA
1 / 3
Miniature Circuit Breaker - S300P - 2P - 16 A - C - (AC) 25 kA
Miniature Circuit Breaker - S300P - 2P - 16 A - C - (AC) 25 kA di ABB è disponibile presso 1 grossista di materiale elettrico su Voltimum IT: MEF.
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Codici prodotto
SKU: S302PC16
EAN: 4016779078856
GTIN: 4016779082495
MPN: S302P-C16
Specifiche tecniche
| Frequenza | 50 - 60 Hz |
| Antideflagrante | no |
| Corrente nominale | 16 A |
| Numero moduli DIN | 2 |
| Potenza dissipata | 3.4 W |
| Tensione nominale | 415 V |
| Montaggio a incasso | no |
| Grado di inquinamento | 3 |
Documenti
Deeplink product page
Deeplink REACH
9AKK107492A1906_en_K_Declaration regarding the REACH-Regulation.pdf
Dimensioned drawing
S300P_MB_XX_V1-0_9AKK108464A0611_Rev_A.svg
Instructions for use
2CDS207104P0002_instruction manual_202302_300dpi.pdf
Product data sheet
Declaration RoHS
9AKK108472A0372_en_A_RoHS Exemption Information.pdf
Declaration DOC CE (Declaration of conformity CE)
9AKK107991A3220-1_EU_S300P_Rev_C.pdf
Declaration EPD (Environmental Product Declaration)
9AKK108467A7130_en_B_EPD S300P.pdf
