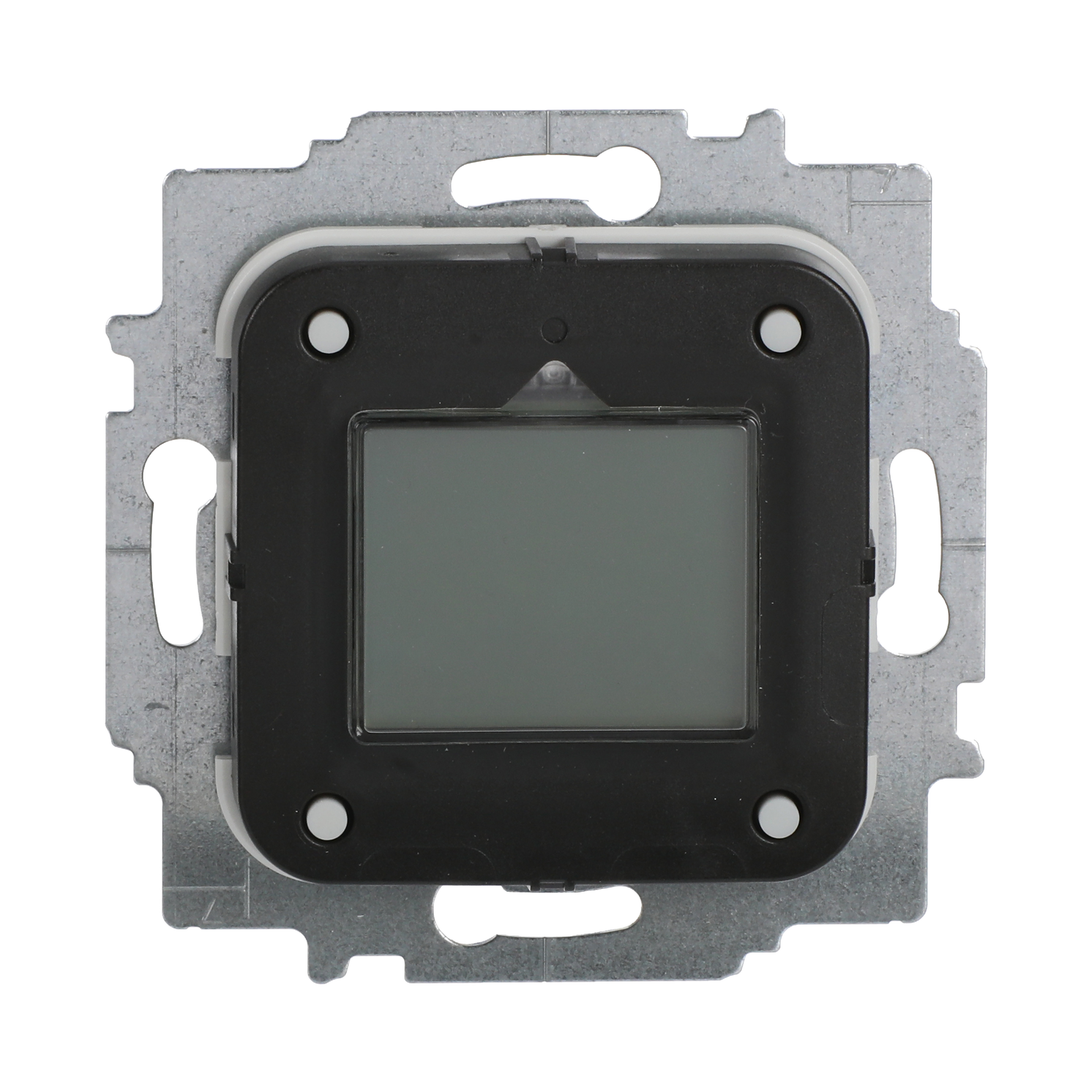

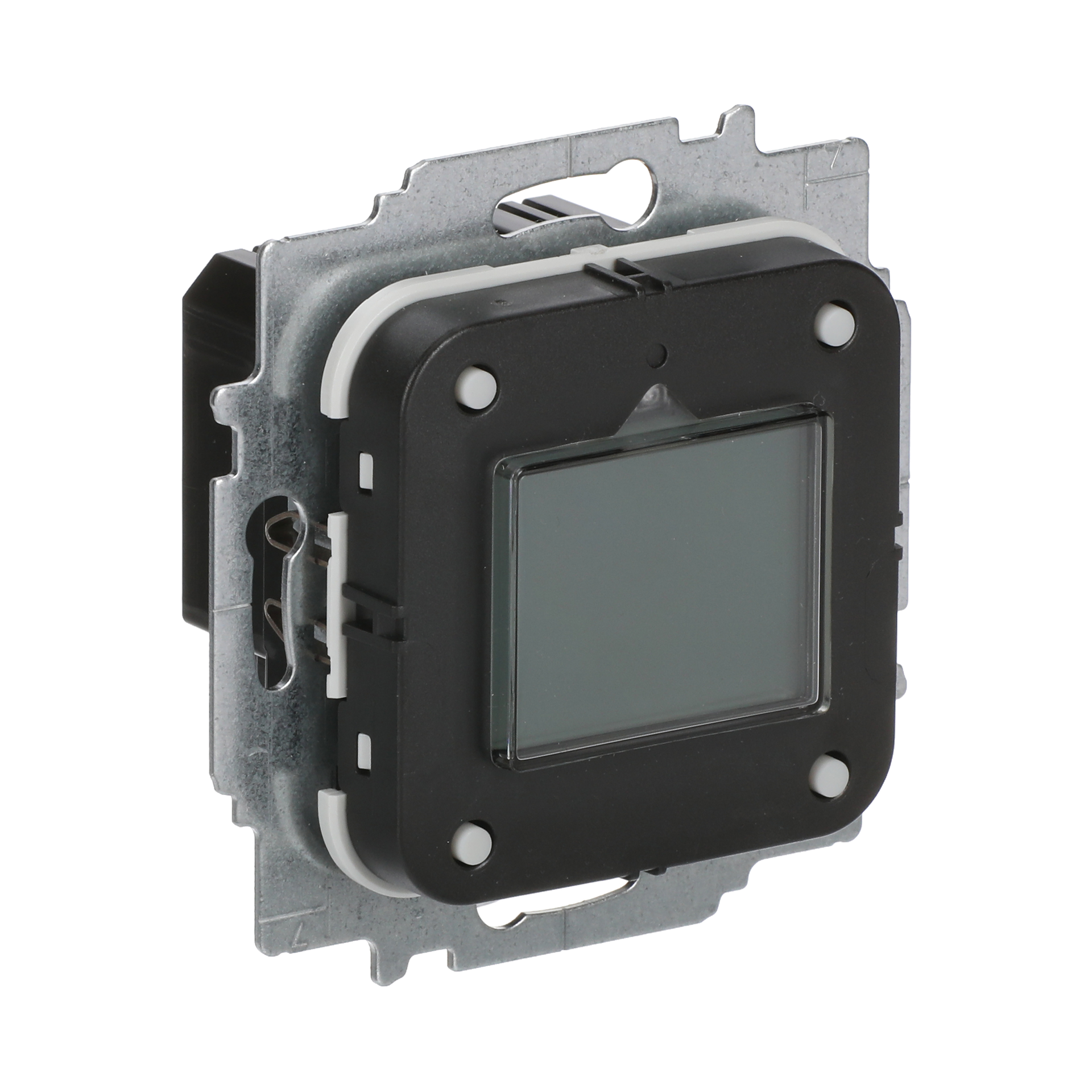

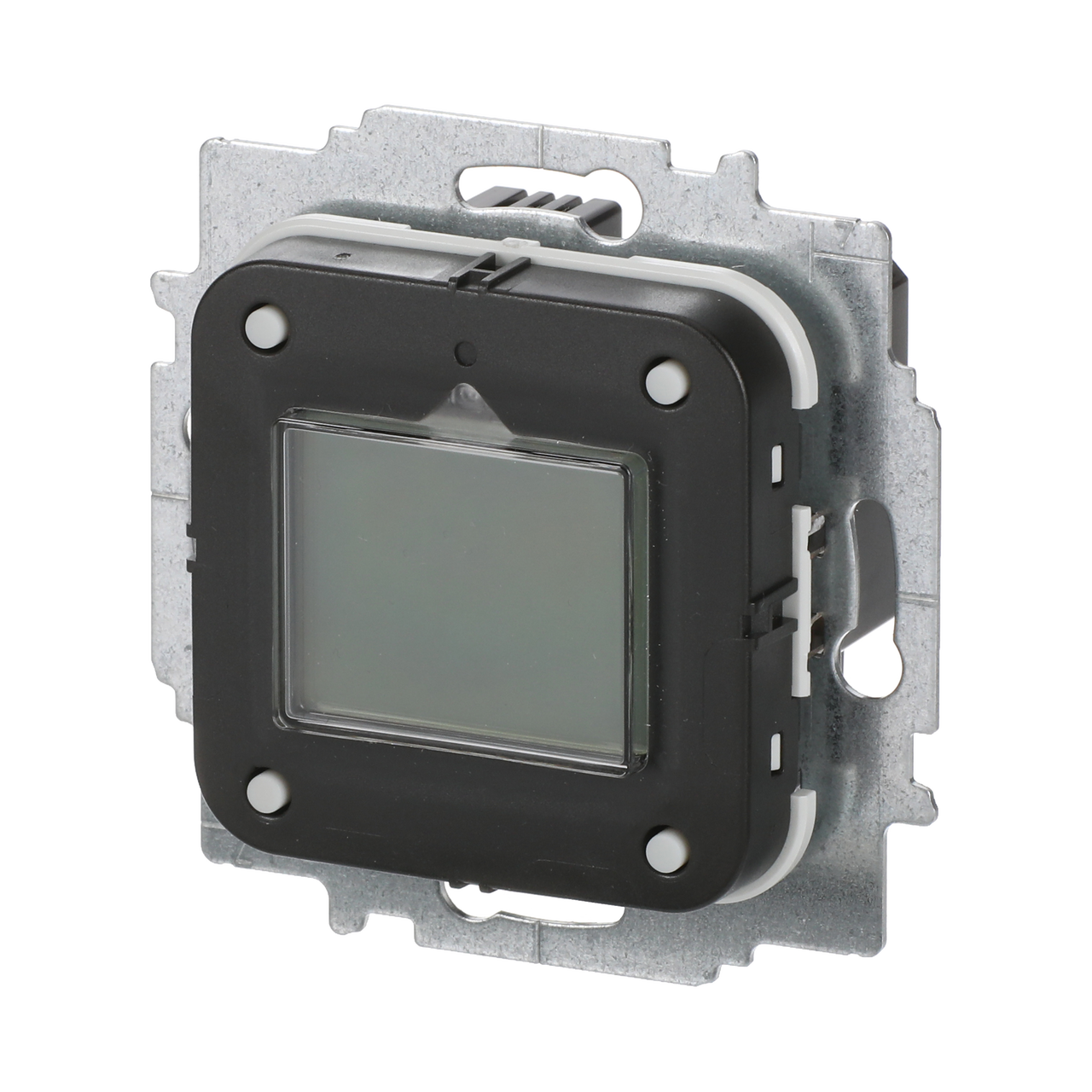

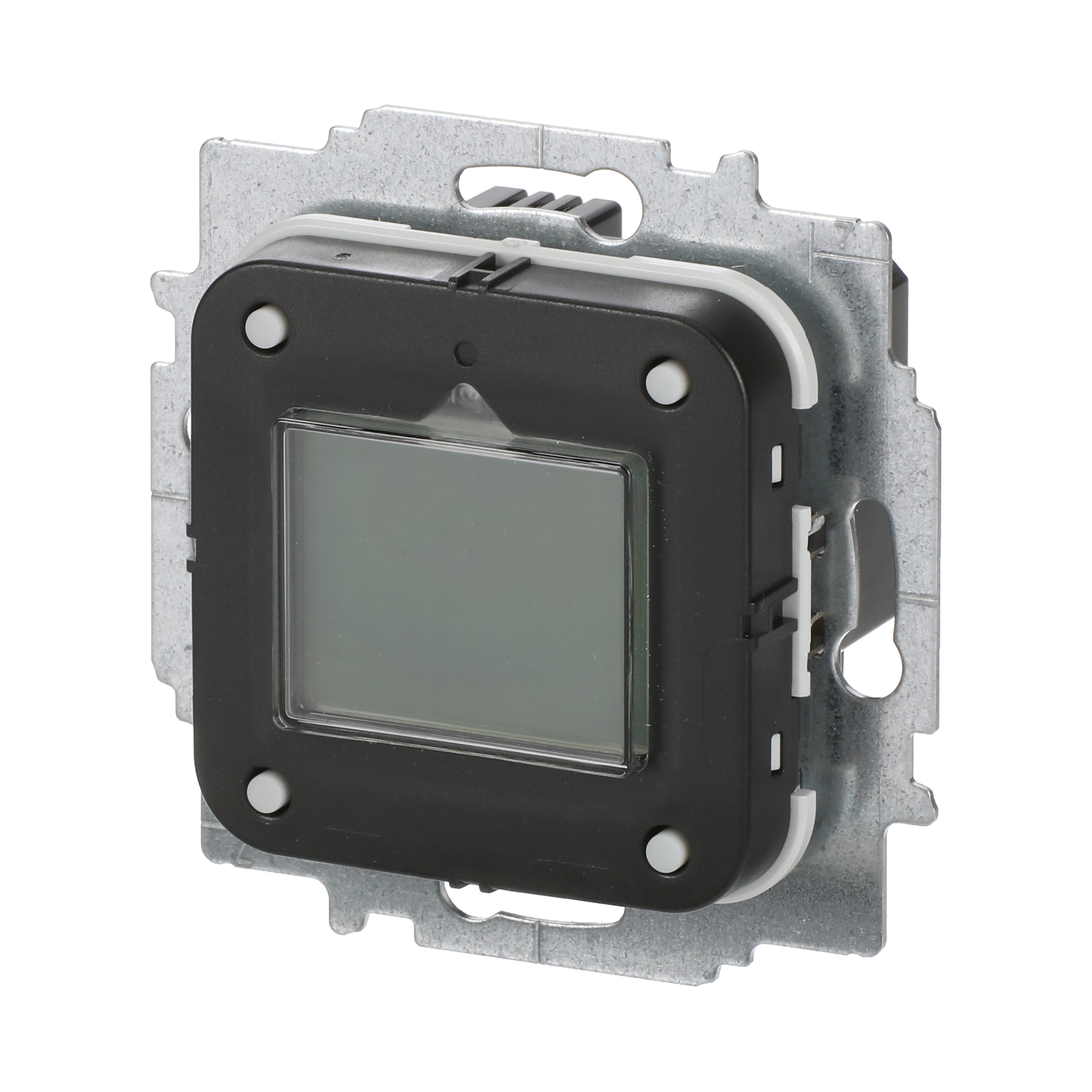

Bus Coupling Units / Push Button Coupling Units 24 V KNX (TP)

Control element with room thermostat function for triggering the heating, ventilation and fan-coil actuators. With universal input with: - max. of 5 binary inputs - 4 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V - 2 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V and an external temperature sensor PT1000 / 6226T/ DP4-T-1. With display of set-value temperature. With integrated temperature sensor. Master/slave configuration. With base-load operation. The bus can be connected via enclosed terminal block. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
