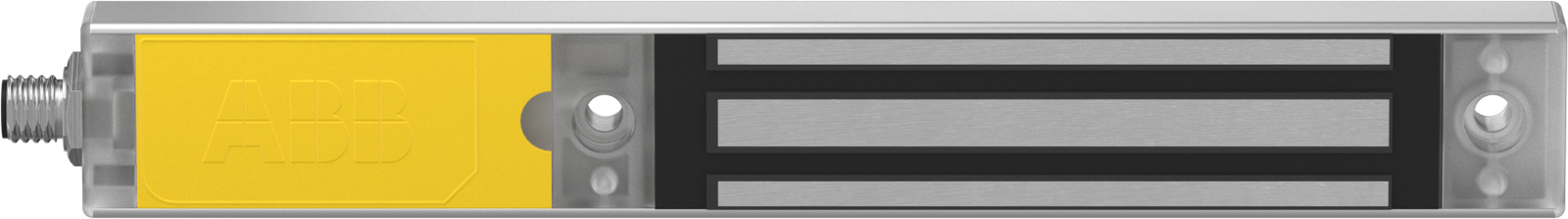

Magne 4 DYN-Info Lock

Link copied
SKU
EAN
GTIN
MPN
Magne 4 DYN-Info is an electromagnetic lock providing safe interlocking thanks to an integrated ADAM DYN-Info safety sensor. Its M12-8 connector facilitates connexion. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. A combined "Locked and Closed" information output is available. The Eva actuactor and the anchor plate must be ordered separately. Magne is an electromagnetic process lock intended for locking doors and hatches. It is usually used to prevent unwanted process interruptions, e.g. during a welding operation. With Adam and Eva, a PLe can be reached for the interlocking function.

Specifiche tecniche

Altezza 274 mm
Larghezza 35 mm
Antideflagrante no
Distanza parete 30 - 30 mm
Forza di adesione 1500 - 1500 N
Tipo di montaggio Struttura
Materiale del corpo Altro
SIL secondo EN 62061 3
Tipologia costruttiva Angolare
Con piastra di ancoraggio no
Adatto per montaggio a soffitto no
Tipo di tensione di alimentazione DC

Documenti

Deeplink product page

Apri

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Apri

Instructions for use

Magne_Product_Manual_(EN)_revN_2TLC172315M0201.pdf

Apri

Product data sheet

Apri

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Apri

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity_Magne4_(EN)_2024_revD_2TLC172262D0201.pdf

Apri
