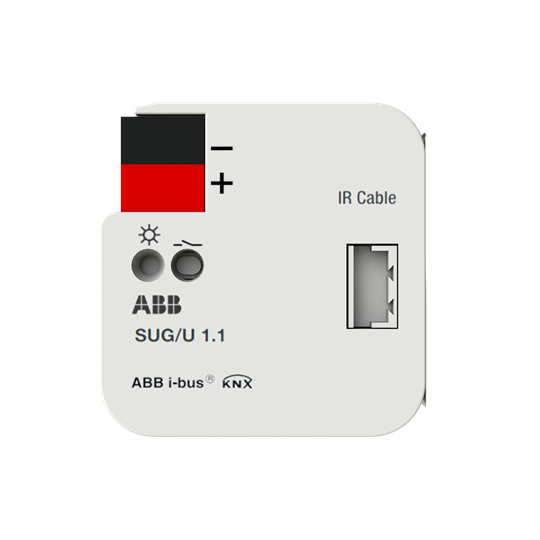

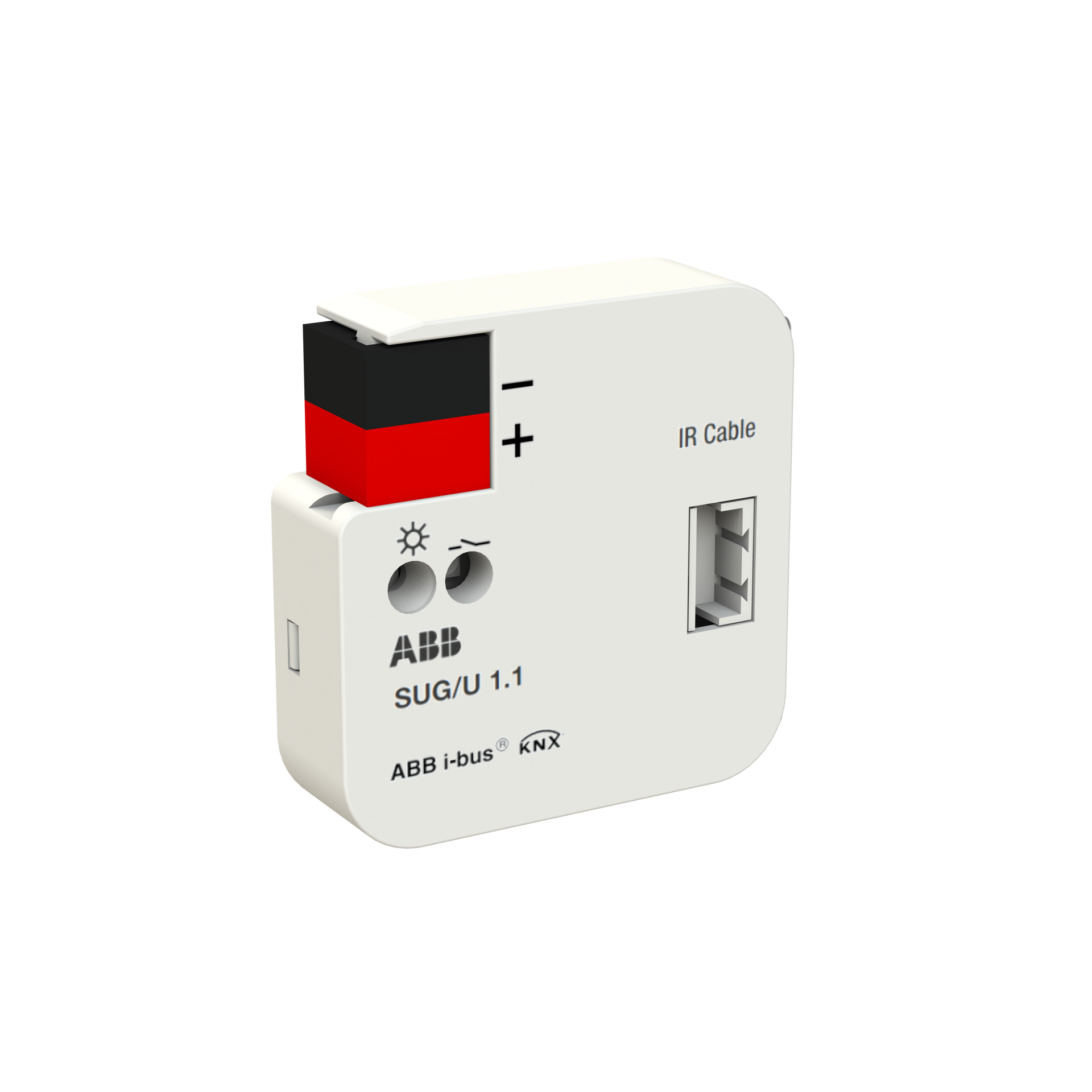

SUG/U1.1 GATEWAY SPLIT UNIT
1 / 3
SUG/U1.1 GATEWAY SPLIT UNIT
The Split Unit Gateway forms the interface between the KNX system and many manufacturers’ air conditioners, so-called split units. The device converts the KNX telegrams into infrared commands and transmits them to the split unit.

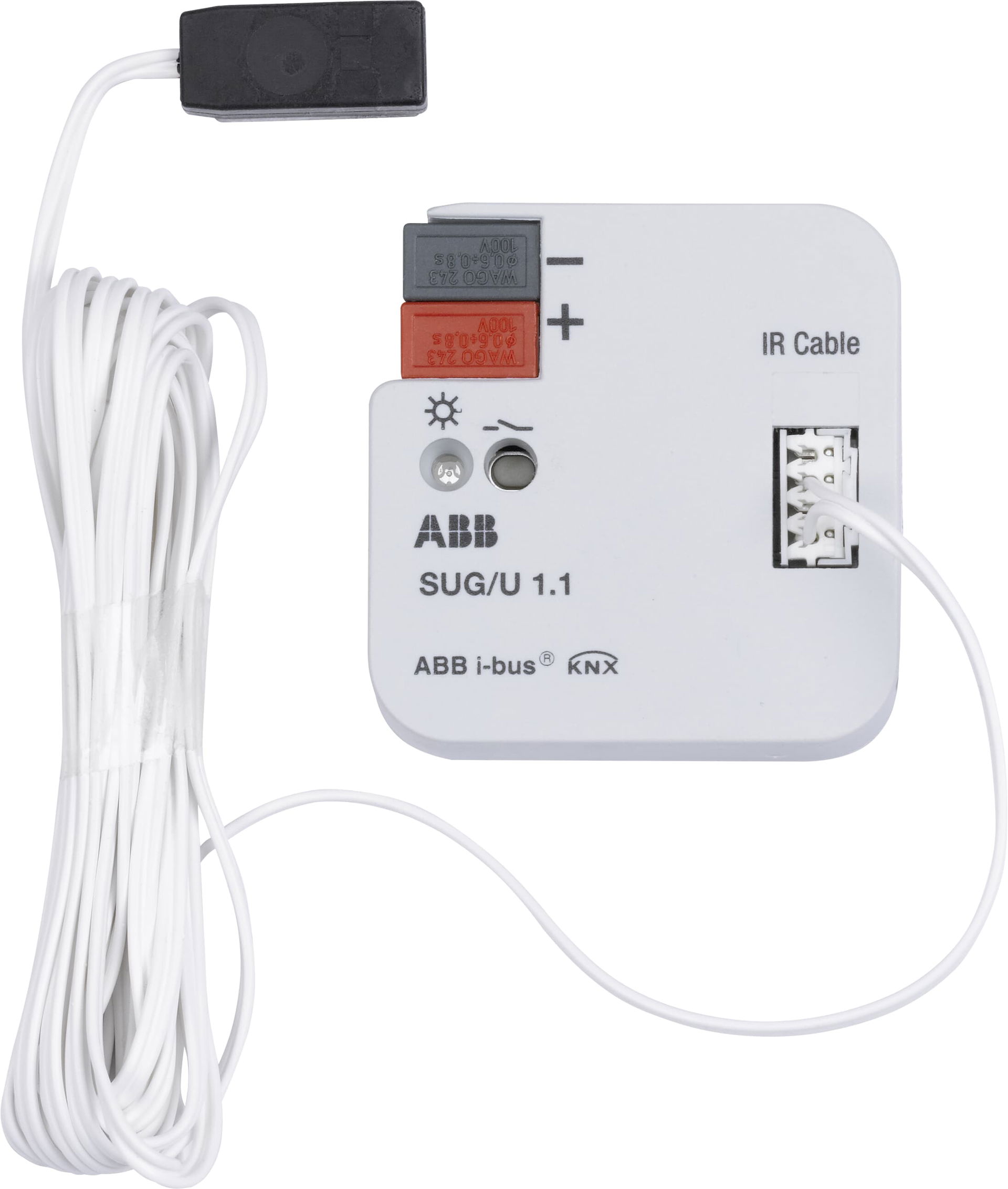

The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any KNX sensors or via a visual display system. The device is put into operation with the ETS, and a free ETS app is available to select the split unit model. Auxiliary voltage is not required.
Codici prodotto
SKU: KNXI0097
EAN: 4016779997362
GTIN: 4016779997362
MPN: SUG/U1.1
Gruppo ETIM
Specifiche tecniche
| Tipologia | - |
| Protocollo | - |
| Web server | no |
| Aggiornabile | si |
| Interfaccia IR | si |
| Sistema bus LON | no |
| Visualizzazione | no |
| Numero di canali | - |
Documenti
Deeplink product page
Deeplink REACH
9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf
Dimensioned drawing
Instructions for use
SUGU_11_MBA_7s_V1-0_2CDG941183P0001.pdf
Product data sheet
Declaration RoHS
9AKK108472A2583_en_A_RoHS Exemption Information.pdf
Declaration DOC CE (Declaration of conformity CE)
SUGU_11_CE-ROHS_xx_V1-4_2CDK508172D2701_05.pdf
