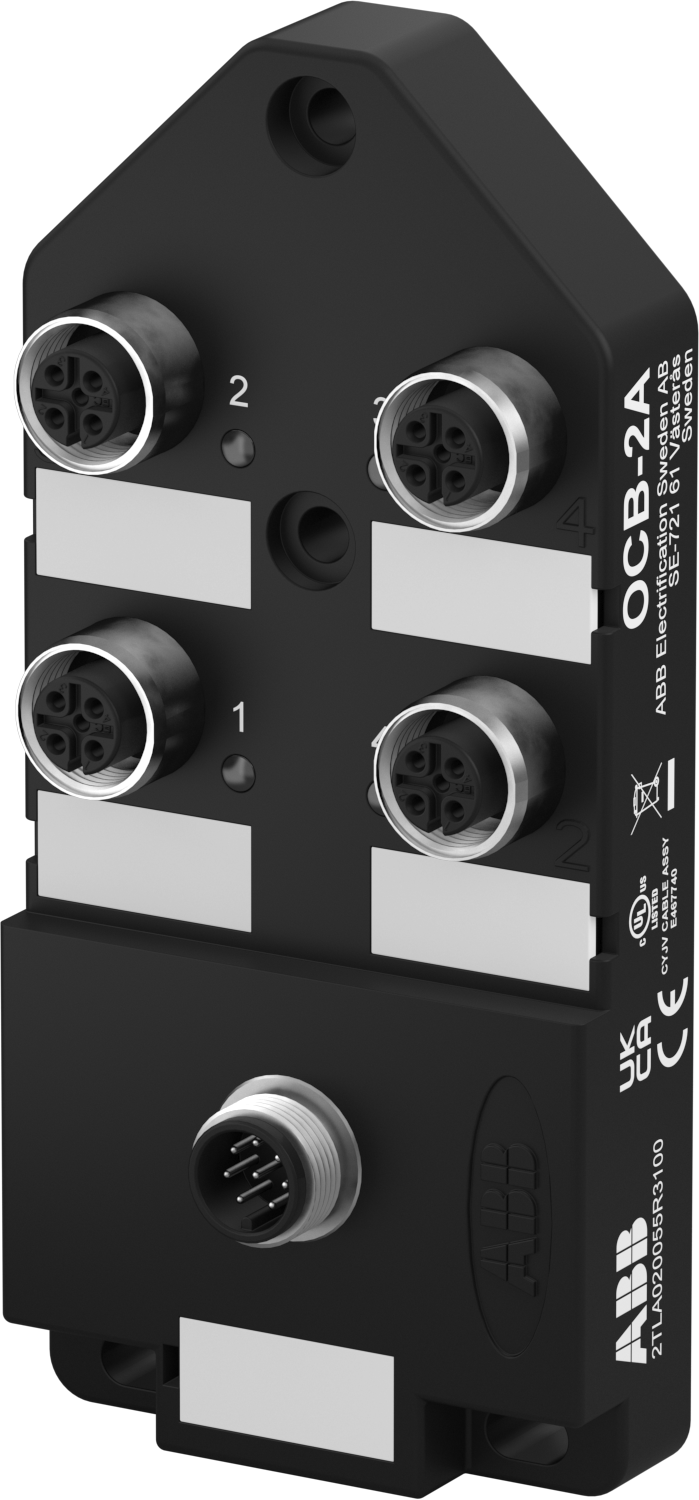

OCB-2A Connection Box
OCB-2A Connection Box
OCB-2A simplifies the connection of multiple sensors by only having one cable out from the control cabinet to the sensors.
OCB-2A is a connection box for up to four safety sensors with M12-5 pin connector. Safety signals are connected in serial. Individual information signal from each sensor.
Blind plug JST2 must be used on unused connectors.
M12-8 pin connector for connection to the safety controller in the cabinet.
Codici prodotto
SKU: 2TLA020055R3100
EAN: 7350024486537
GTIN: 7350024486537
MPN: OCB-2A
Gruppo ETIM
Specifiche tecniche
| Altezza | 118 mm |
| Larghezza | 54 mm |
| Lunghezza | 28 mm |
| Colore del corpo | Nero |
| Tensione nominale | 24 V |
| Materiale del corpo | Plastica |
| Con indicatore a LED | no |
| Max. corrente totale | 2 A |
