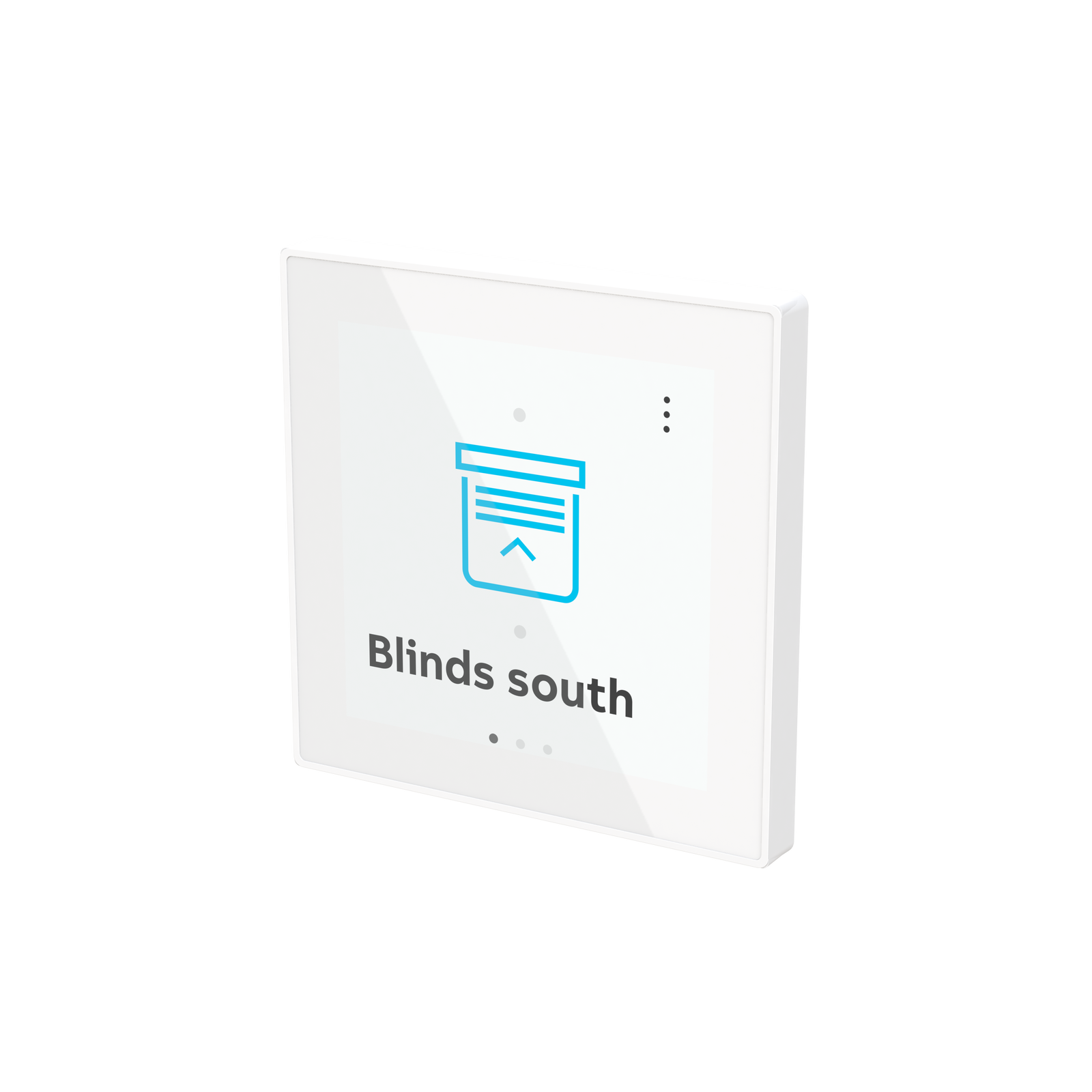

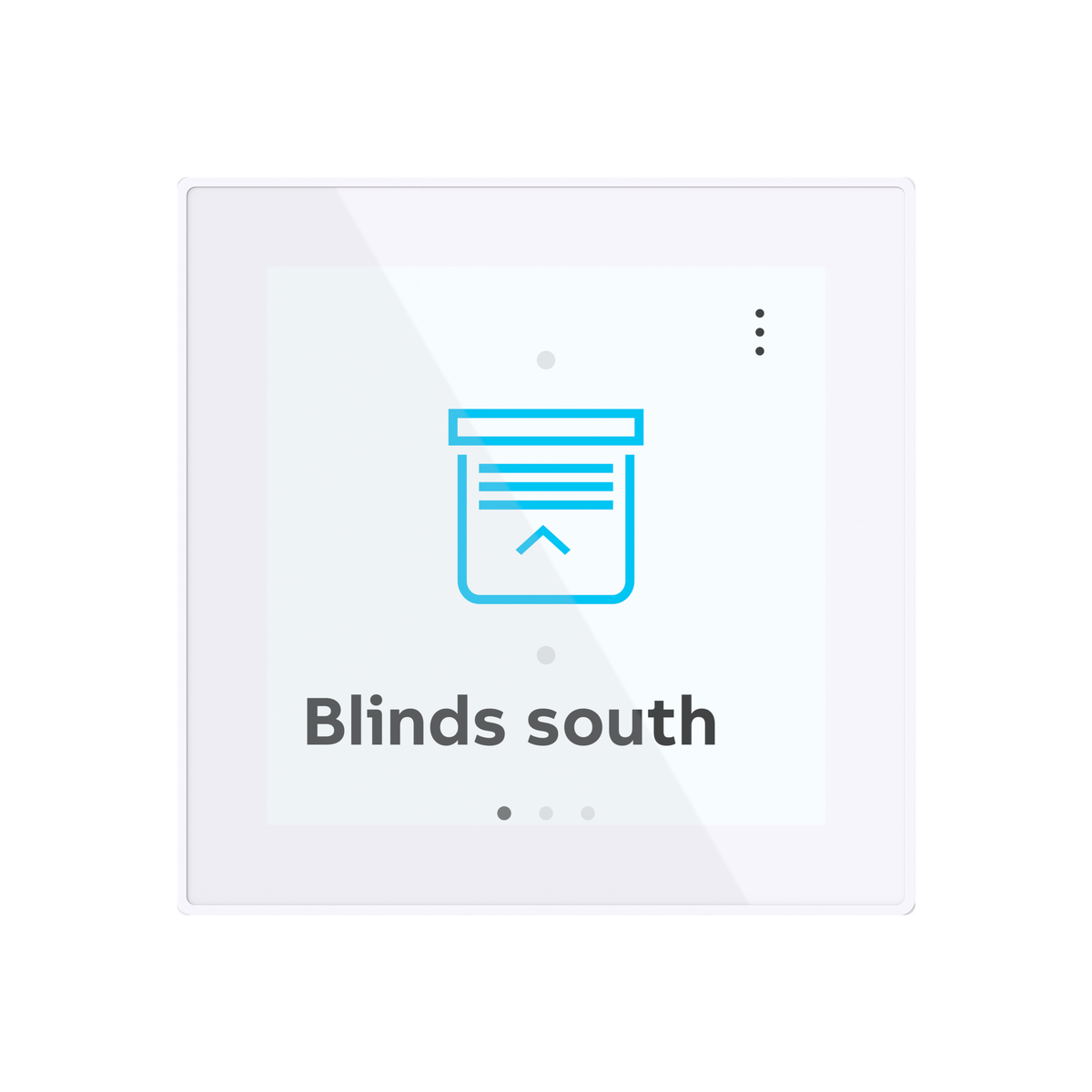

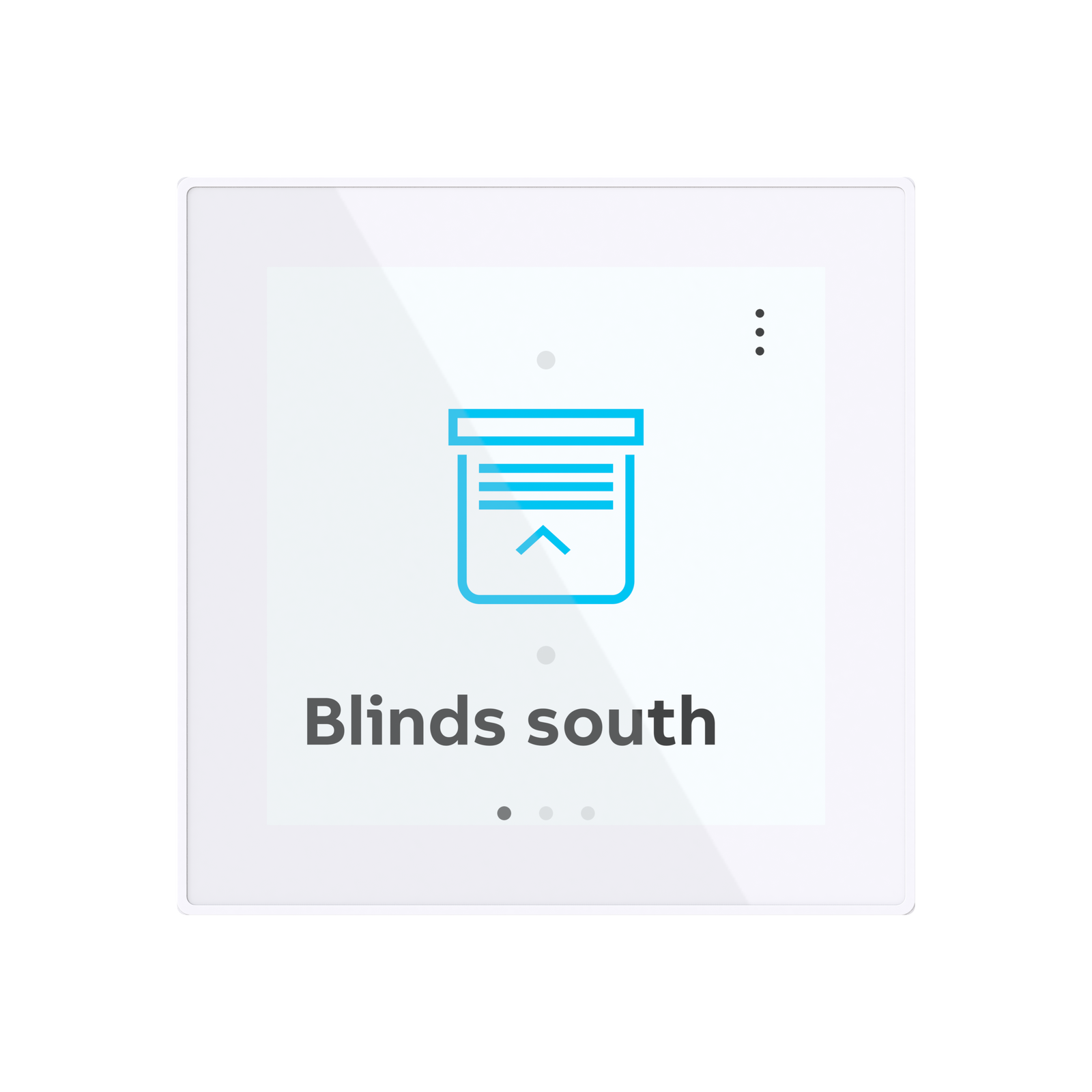

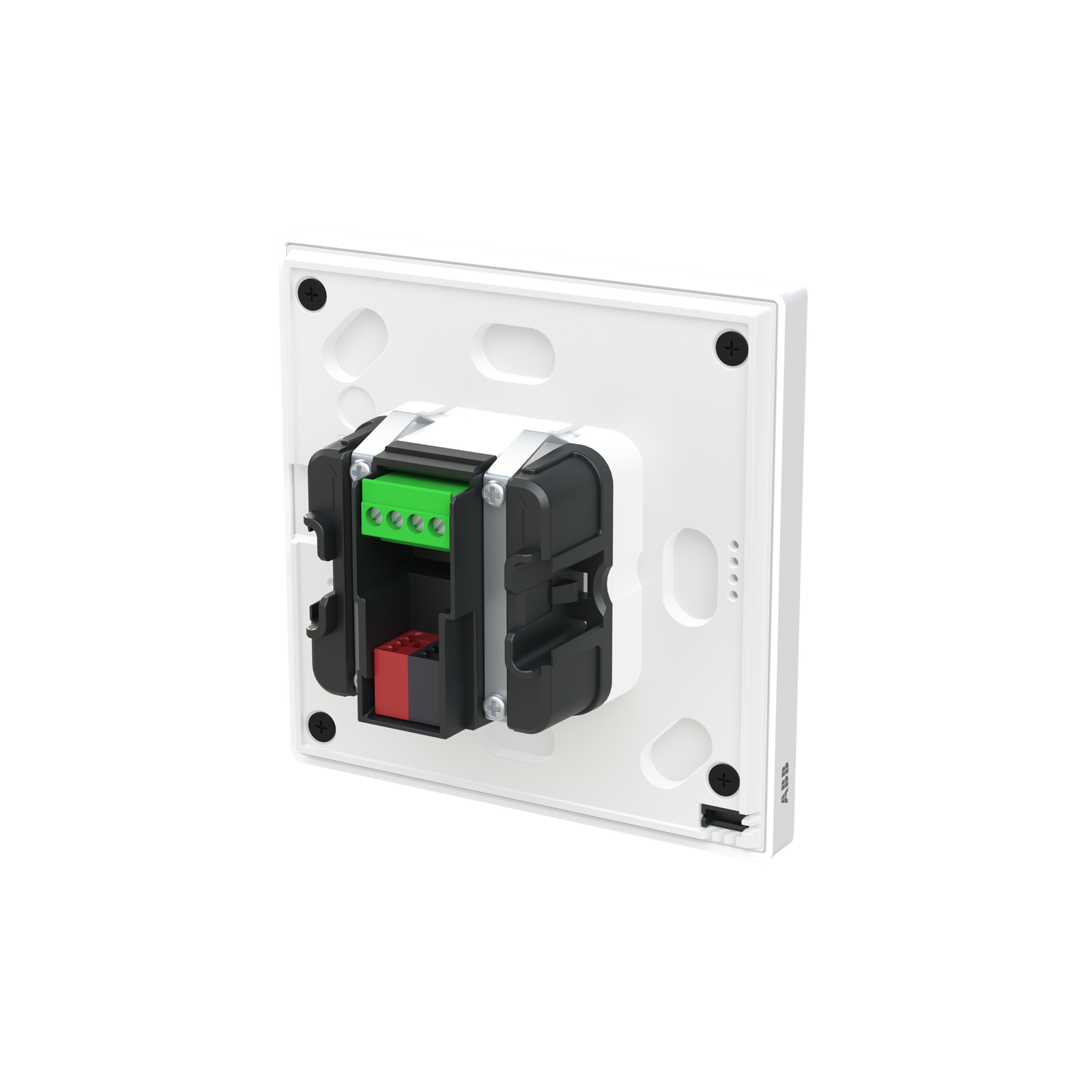

RT/U12.86.1-811,RoomTouch 4,12 gang white glass - RoomTouch

Link copied
SKU
EAN
GTIN
MPN

RT/U12.86.1-811,RoomTouch 4,12 gang white glass - RoomTouch di ABB è disponibile presso 1 grossista di materiale elettrico su Voltimum IT: MEF.

Freely programmable Touch panel 1 – up to 12 fold featuring a 4-inch IPS screen with 480*480 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. KNX and free@home functions: - A total 12 control elements are displayed on a maximum of 12 pages. - 12 fault and alarm messages - 10 logic functions - 10 weekly timers - 10 scene actuators - 1 Integrated temperature controller (RTC) - Page display with a maximum of 4 touch surfaces on one page - Primary function 12 fault and alarm messages - Integrated temperature sensor. - Haptic feedback - proximity sensor - brightness sensor - 1 binary input or external temperature sensor input (PT1000 / 6226/T). - KNX Data Secure compatible External power supply needed: 20-32 VDC (SELV) Number of bus subscribers: 1 Optional Removal protection: TZE/U.0.xx.CK Display size: 10,16cm (4”) Display resolution: 480*480 Display screen: IPS display Dimensions (L x W x D): (86mm x 86mm x 11mm) Display surface: glass white (-811) Frame color: White matt (-884) Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.

Specifiche tecniche

Colore Altro
Display -
Materiale -
Tipologia -
Composizione -
Sistema bus LON -
Altre interfacce -
Funzione tattile -
Sistema bus radio -
Codice RAL (simile) -
Sistema bus EIB/KNX si
Sistema bus radio KNX -
Qualità del materiale -
Accoppiamento bus incluso si

Documenti

Deeplink product page

Apri

Deeplink REACH

All Articles_REACH_EN_25-2_2CKA309999E9999.pdf

Apri

Product data sheet

Apri

Declaration RoHS

RT_U12.86.1-811_ROHS_XX_V01_2CKA200000E7793.pdf

Apri

Declaration DOC CE (Declaration of conformity CE)

RT_U12.86.1-811_CE_XX_V01_2CKA100000E4771.pdf

Apri

Declaration EPD (Environmental Product Declaration)

SD_U_12_55(63)(70).1(11)-XXX_EPD_EN_V1-0_9AKK108468A8142_Rev-A.pdf

Apri
