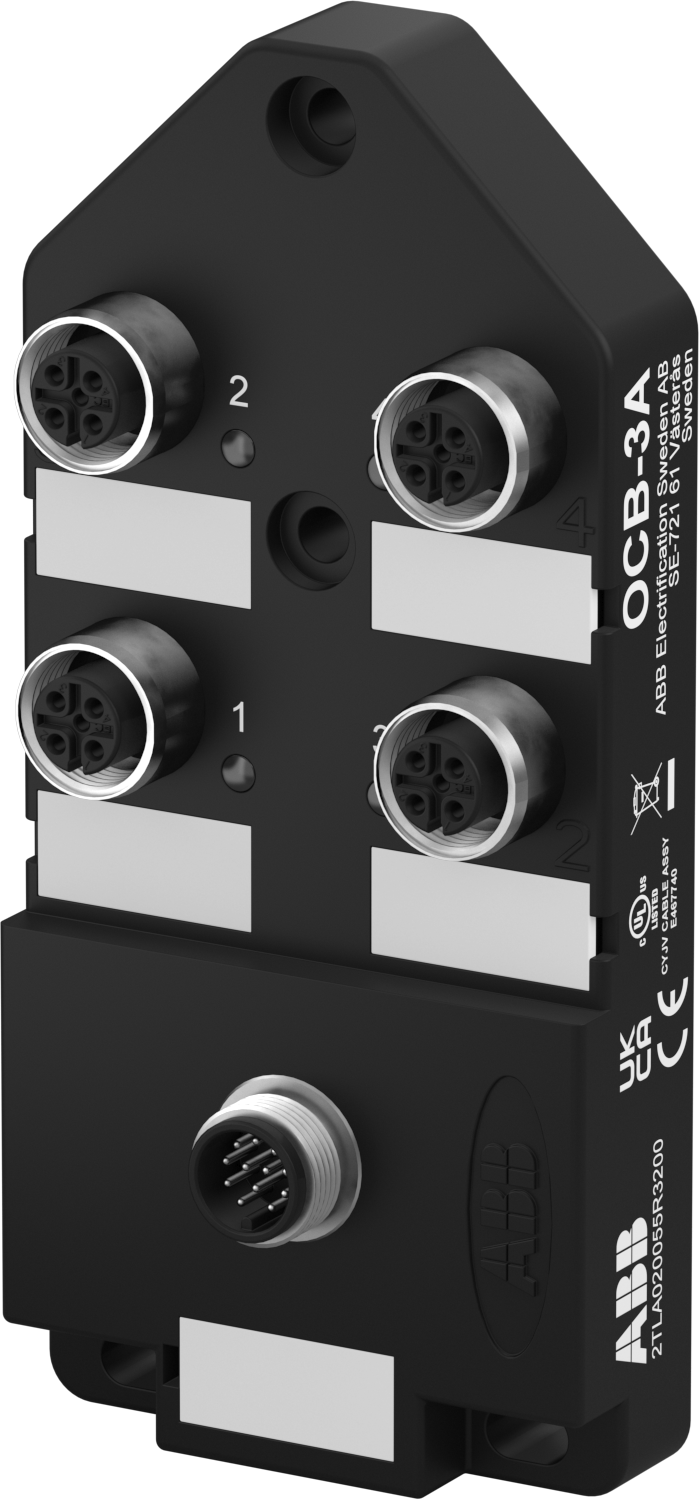

OCB-3A Connection Box
OCB-3A Connection Box
OCB-3A simplifies the connection of multiple sensors by only having one cable out from the control cabinet to the sensors.
OCB-3A is a connection box for up to four Eden OSSD sensors with M12-5 pin connector, or other compatible safety sensors. Safety signals are connected individually and can have different safety functionality.
M12-12 pin connector for connection to the safety controller in the cabinet.
Codici prodotto
SKU: 2TLA020055R3200
EAN: 7350024486544
GTIN: 7350024486544
MPN: OCB-3A
Gruppo ETIM
Specifiche tecniche
| Altezza | 118 mm |
| Larghezza | 54 mm |
| Lunghezza | 28 mm |
| Colore del corpo | Nero |
| Tensione nominale | 24 V |
| Materiale del corpo | Plastica |
| Con indicatore a LED | no |
| Max. corrente totale | 2 A |
