Energy meter '15', 3-phase, 65 A

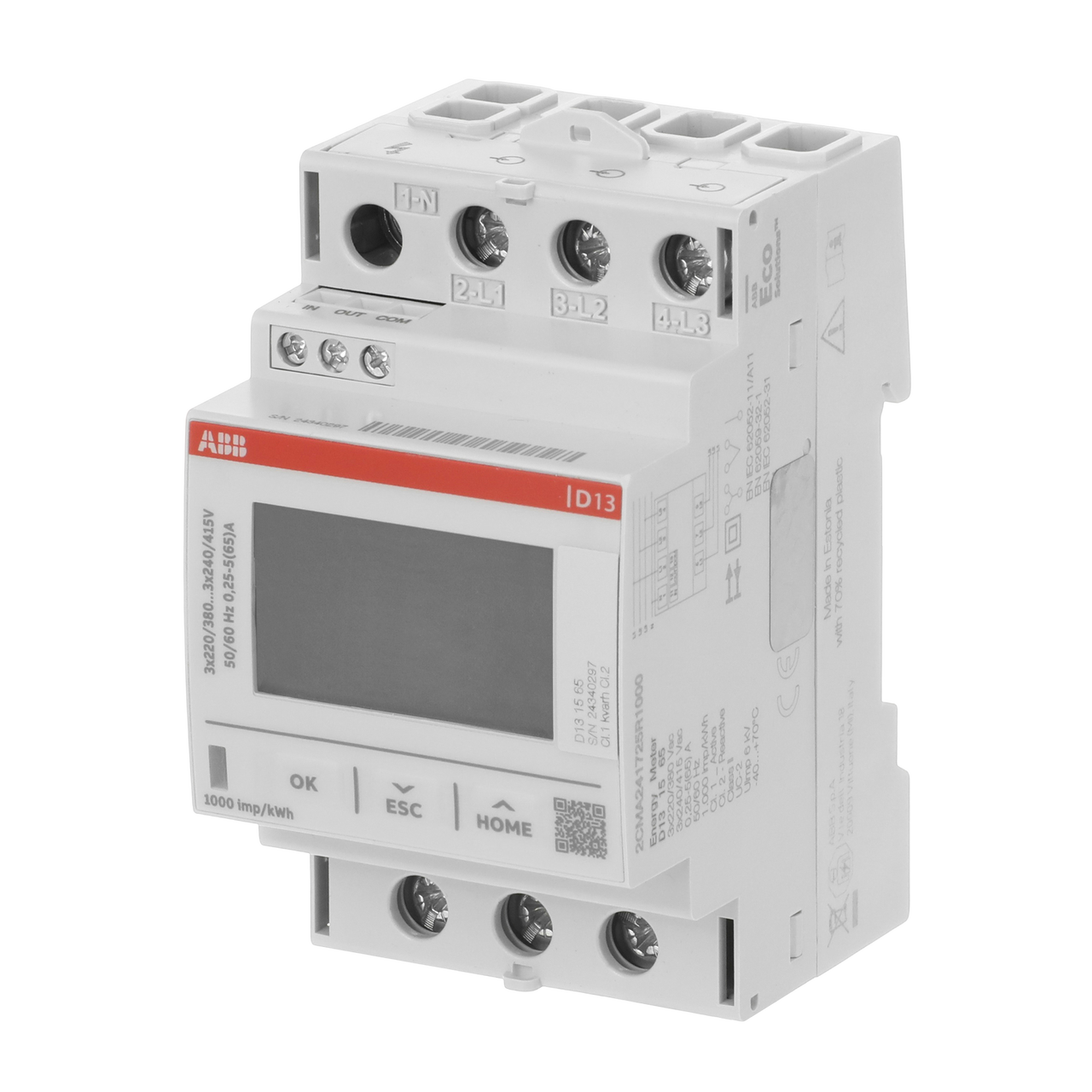

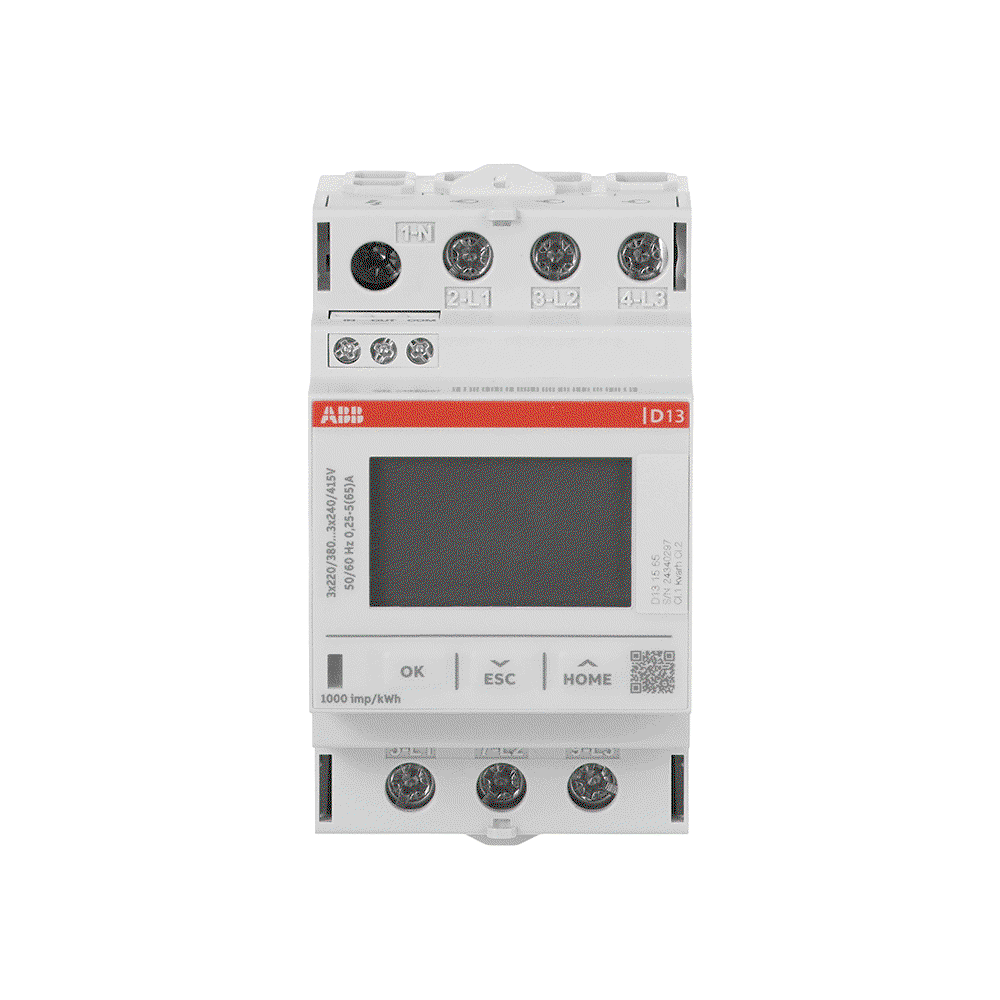

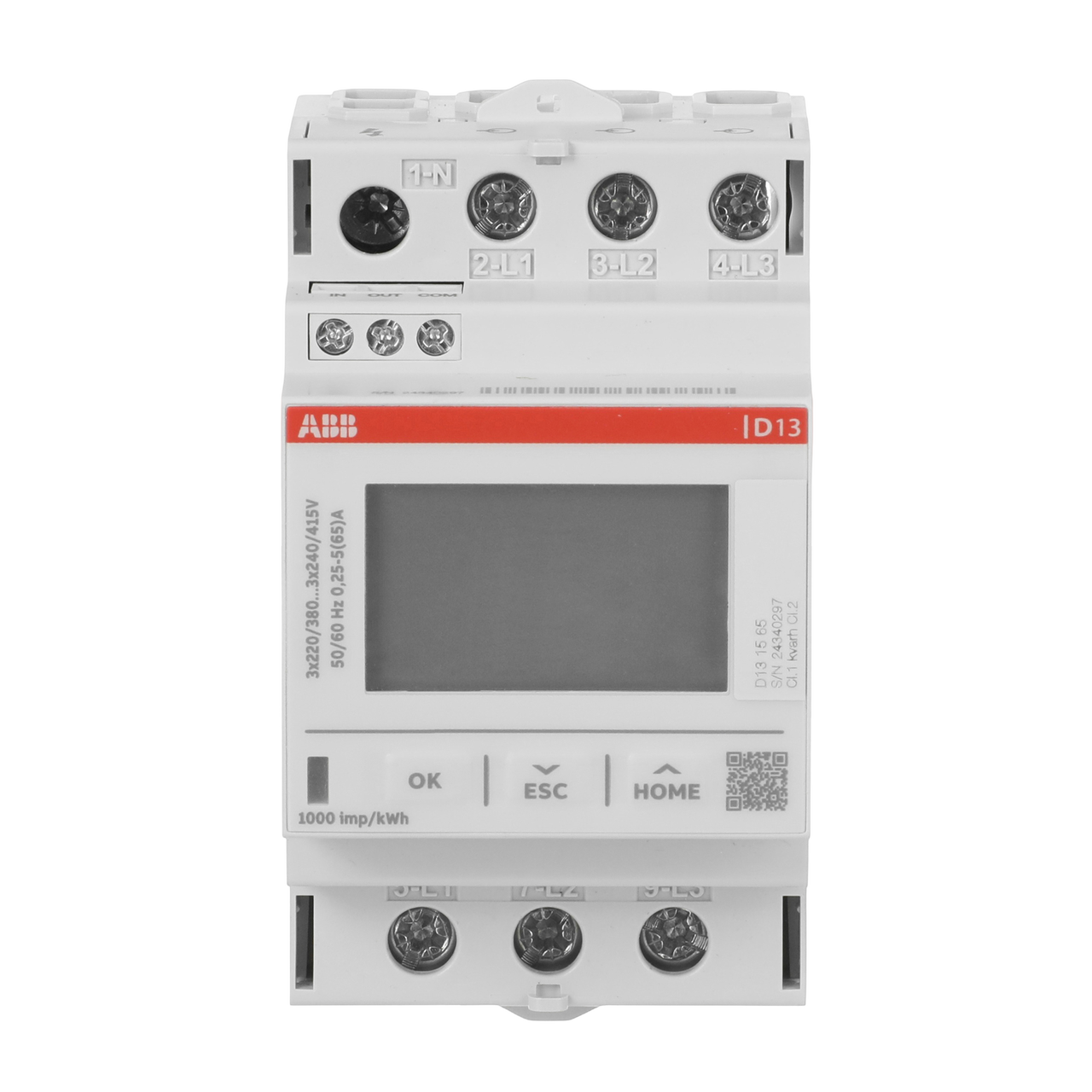

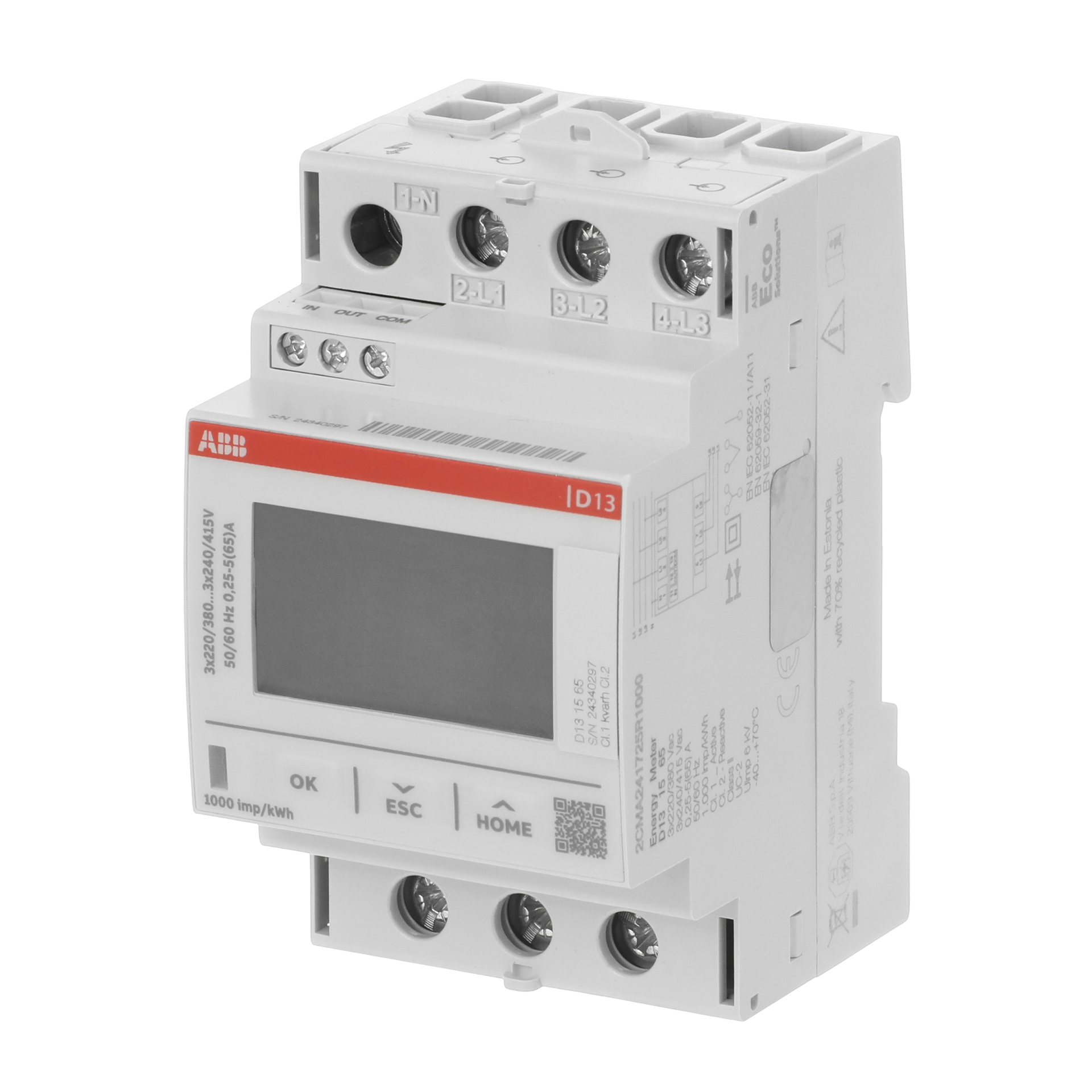

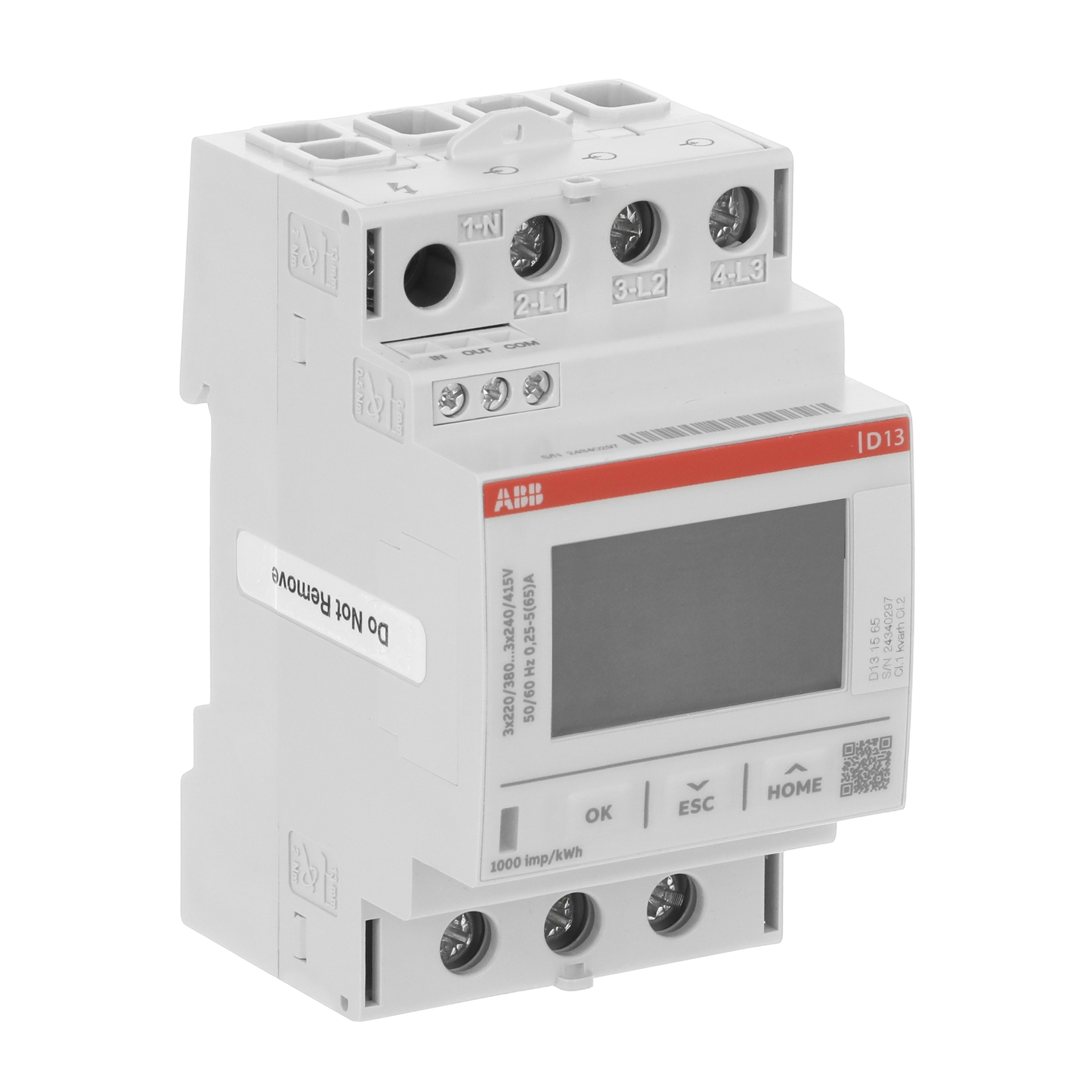

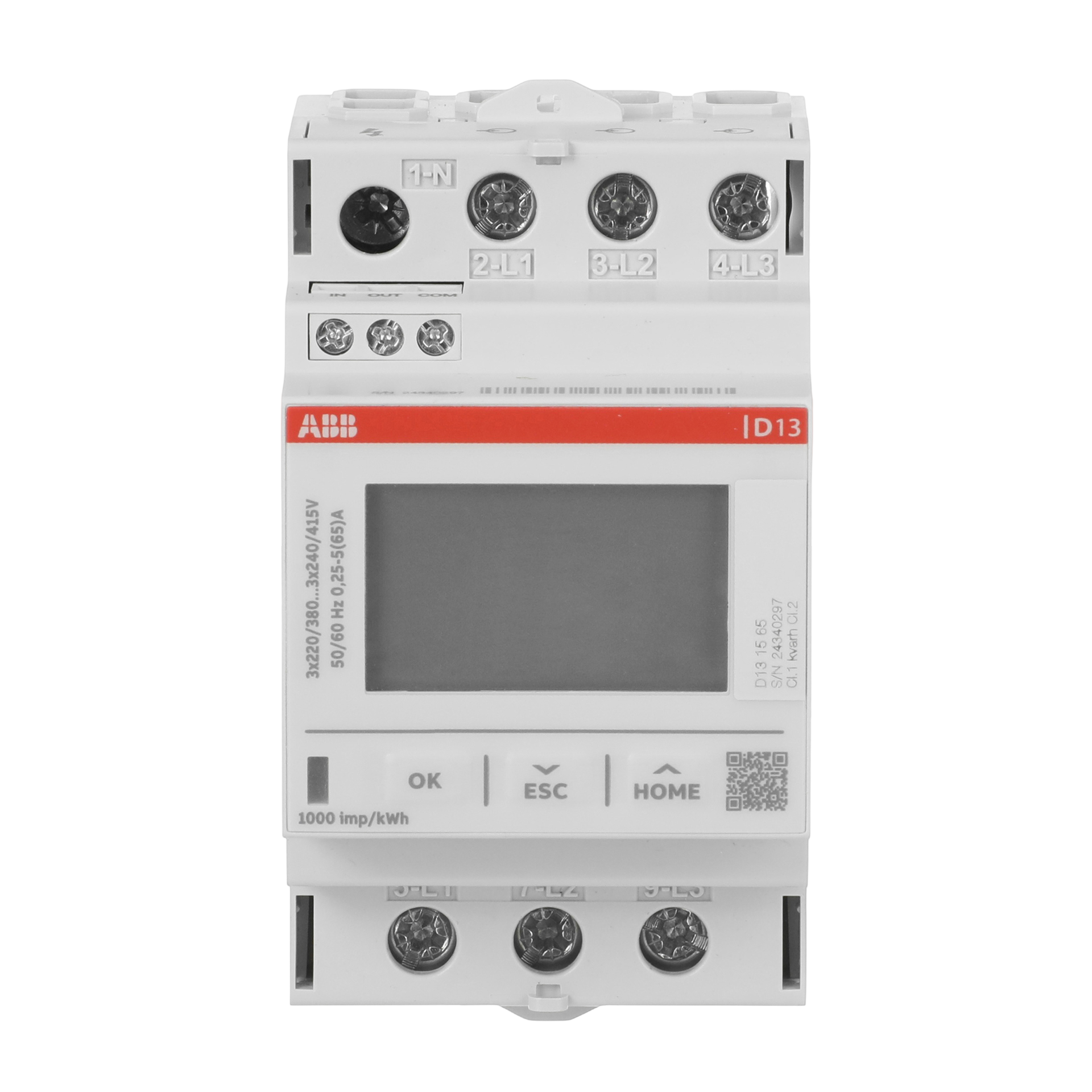

D13 15 65 is a three phase energy meter, direct connection up to 65 A, four quadrant metering, class 1 accuracy for active energy according to IEC 62053-21 and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only three DIN module in width and housing in recycled plastic.
Codici prodotto
SKU: D131565
EAN: 8012542636052
GTIN: 8012542636052
MPN: D13 15 65
Specifiche tecniche
| Tarato | - |
| Altezza | 97 mm |
| Frequenza | 50 - 60 Hz |
| Larghezza | 52.5 mm |
| Tipologia | Misurazione diretta |
| Adatto per | - |
| Firma EDL40 | - |
| Profondità | 65 mm |
Documenti
Deeplink product page
Deeplink REACH
9AKK108467A9482_en_G_Reach Declaration - ABB S.p.A. Vittuone.pdf
Instructions for use
D11-D13 Installation_Manual.pdf
Product data sheet
Declaration RoHS
9AKK108469A1599_en_B_Declaration of conformity - D13.pdf
Declaration EPD (Environmental Product Declaration)
9AKK108469A4516_en_B_D11-D13 Meters - Product Environmental Profile (PEP).pdf
