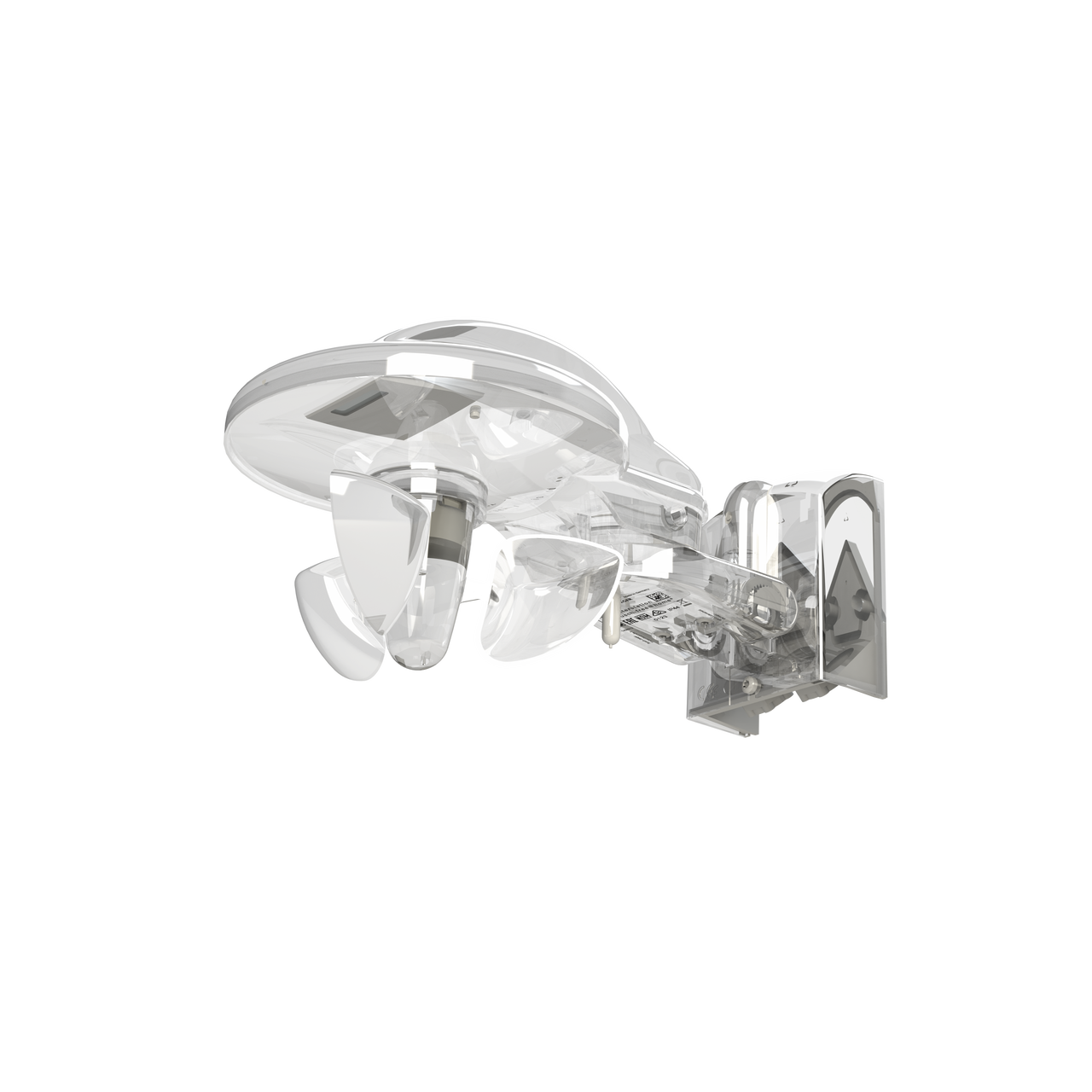

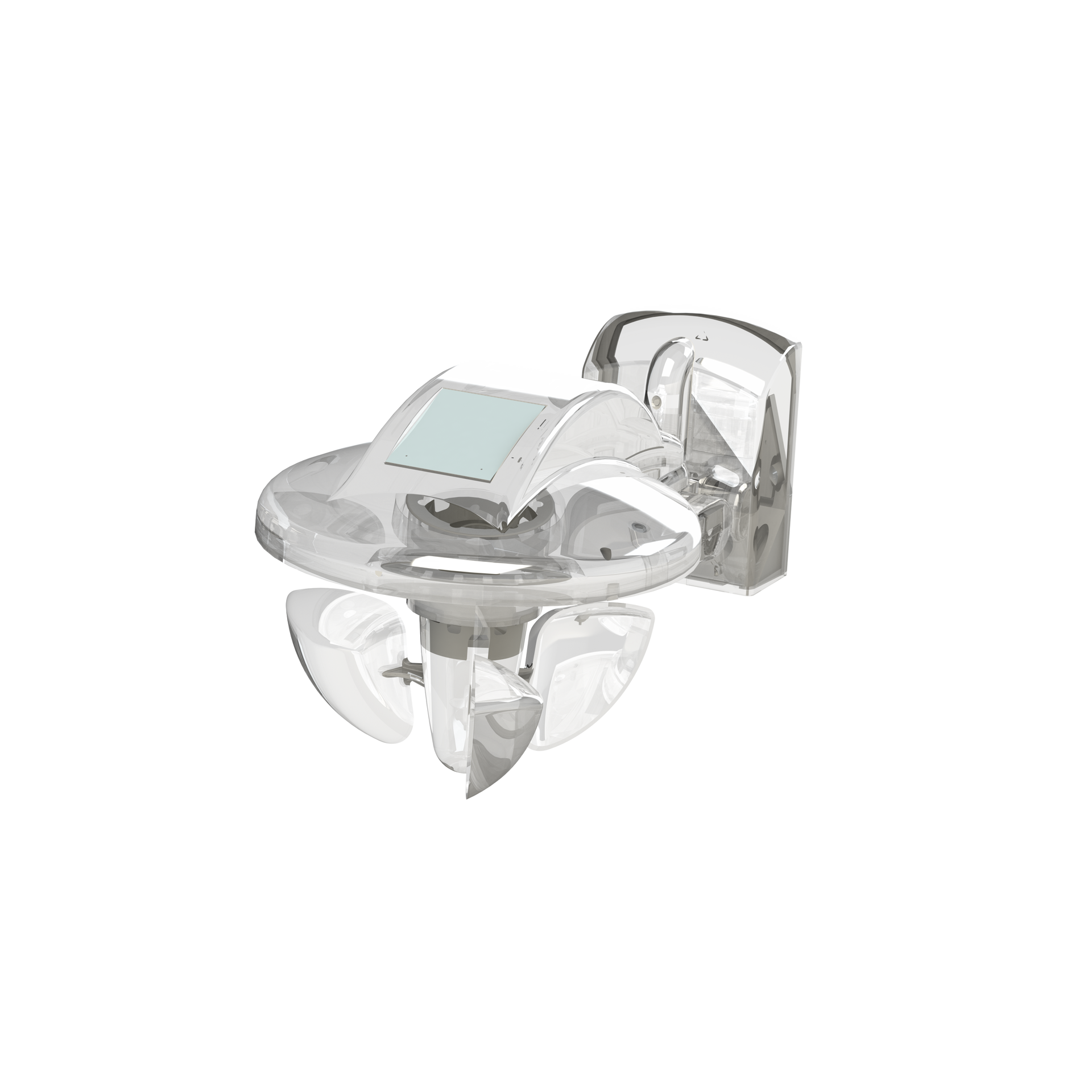

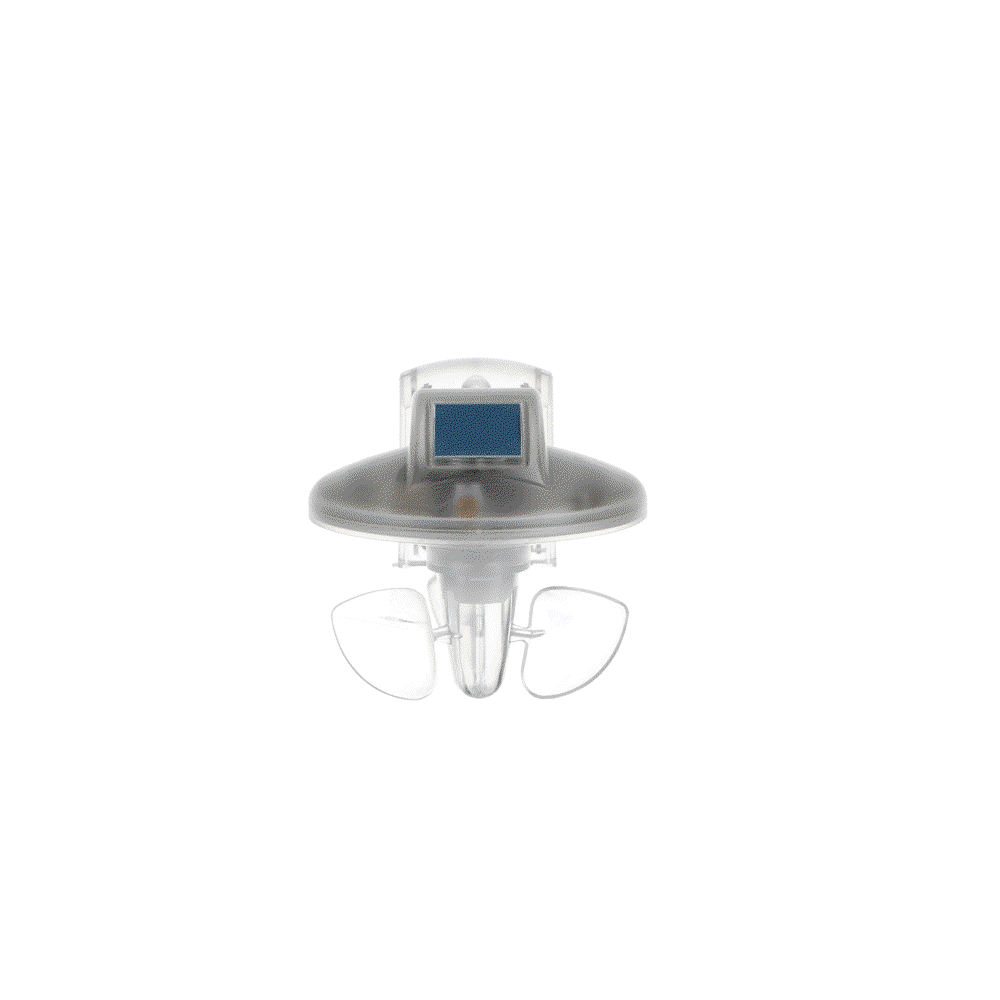

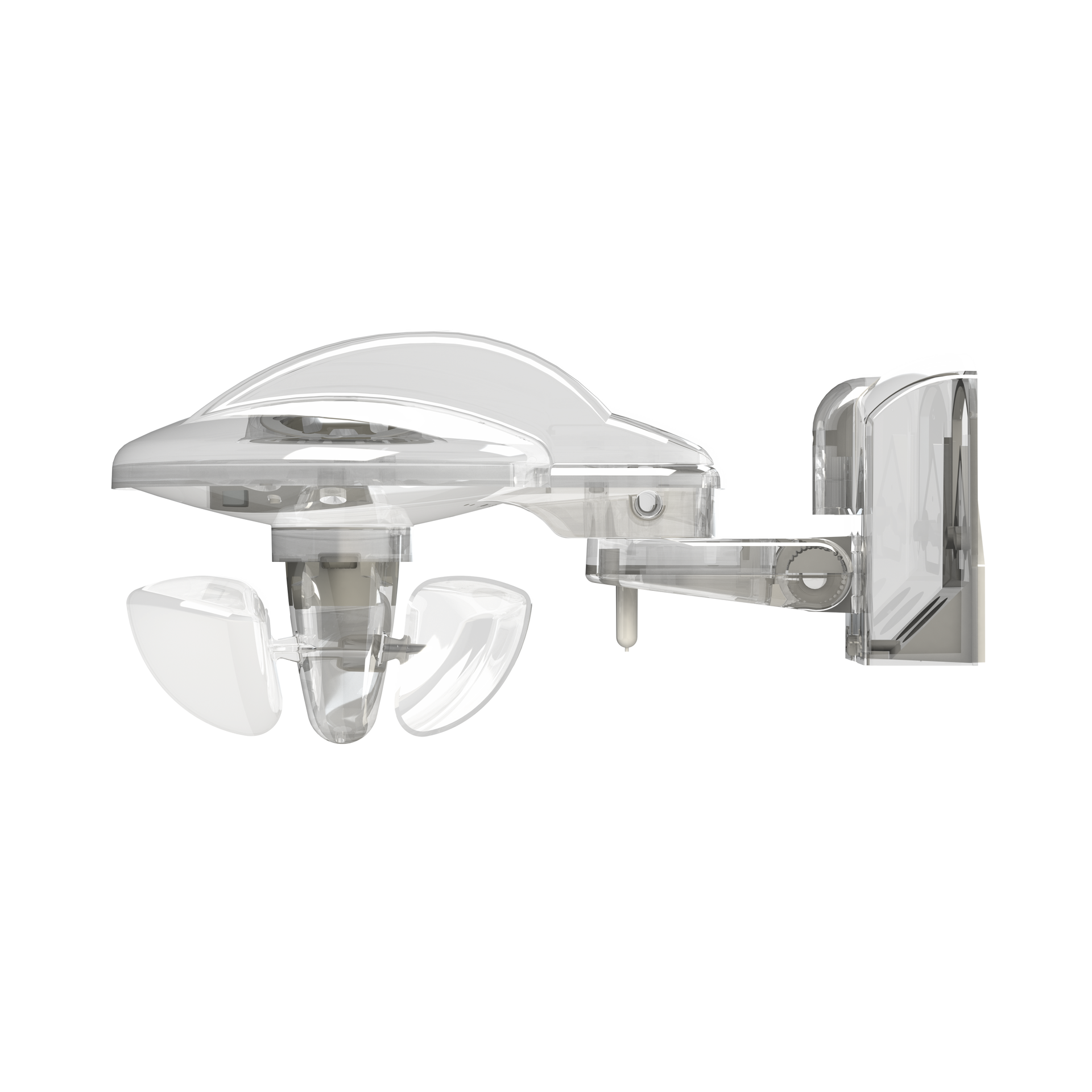

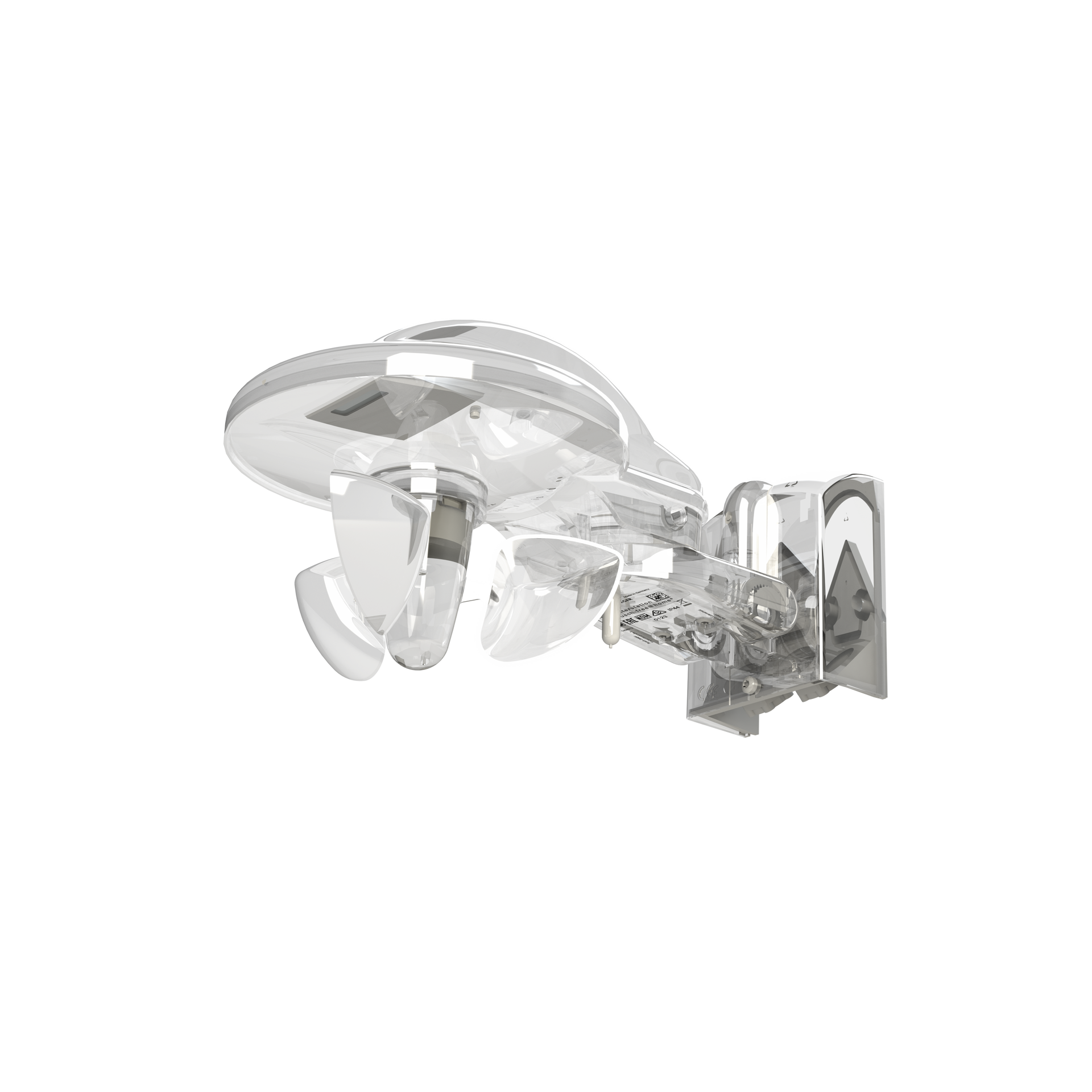

WS-1 Stazione meteo di ABB-free@home®

For recording and transmitting of brightness, temperature, wind speed and rain. Weather data can be linked with actuators to automatically control functions. ABB-free@home Weatherstation to record brightness, temperature, windspeed and rain. With 3 Brightness Sensors. With a temperature sensor. With a windspeed sensor. With a rain sensor. Weather data can be linked with actuators to automatically control functions. Weather data can be visualized in the free@home web interface and the free@home app. The bus can be connected via enclosed terminal block. ABB-free@home app for commissioning of basic and add-on parameters. Programming only under connected bus voltage. Wind speed measuring range 2 - 30 m/s Brightness limiting values: 1 - 100.000 Lux Bus voltage: 24 V Power Supply for the Rain Sensor: 110V - 230V AC Temperature range device: -20°C - 55°C Storage temperature device: -20°C - 70°C
