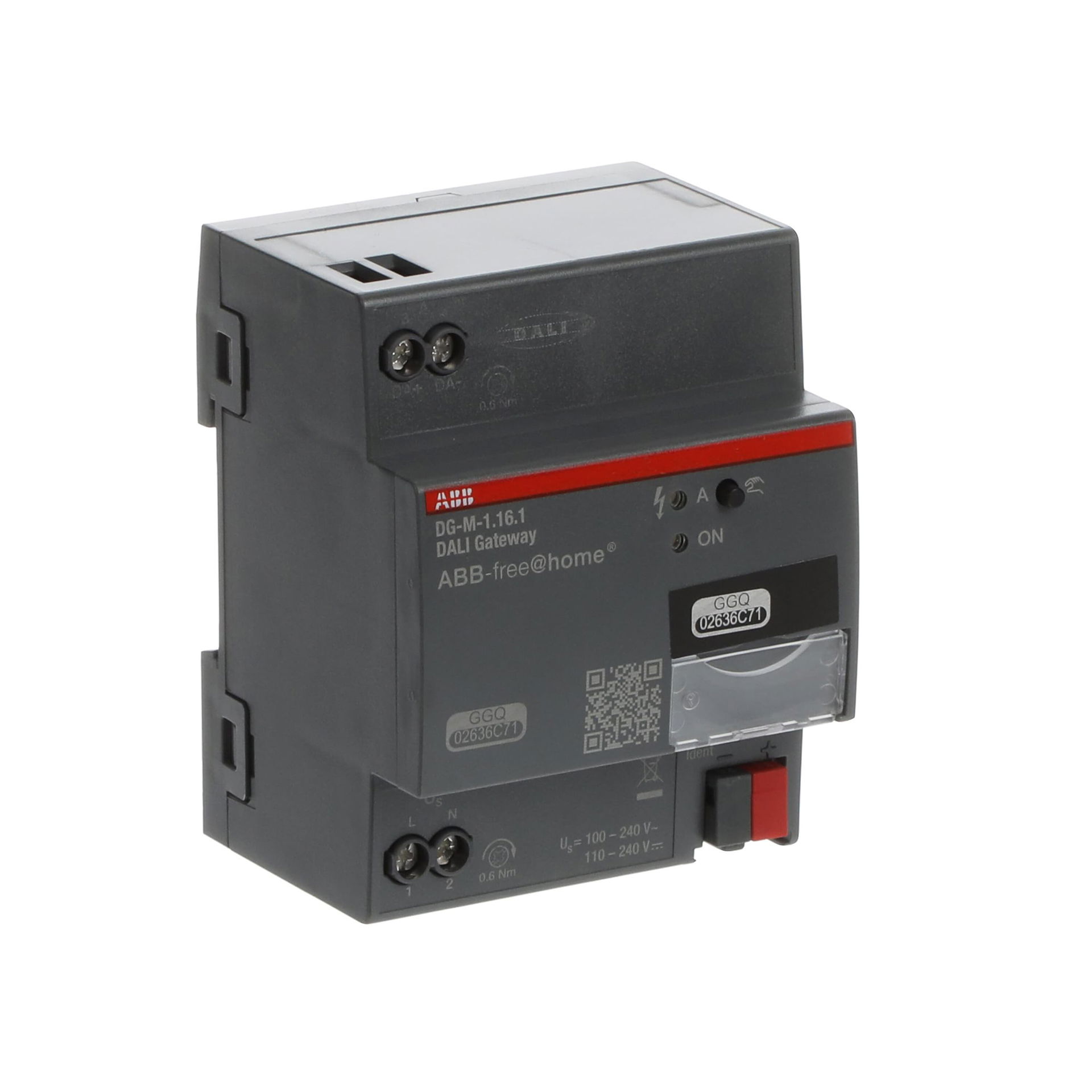

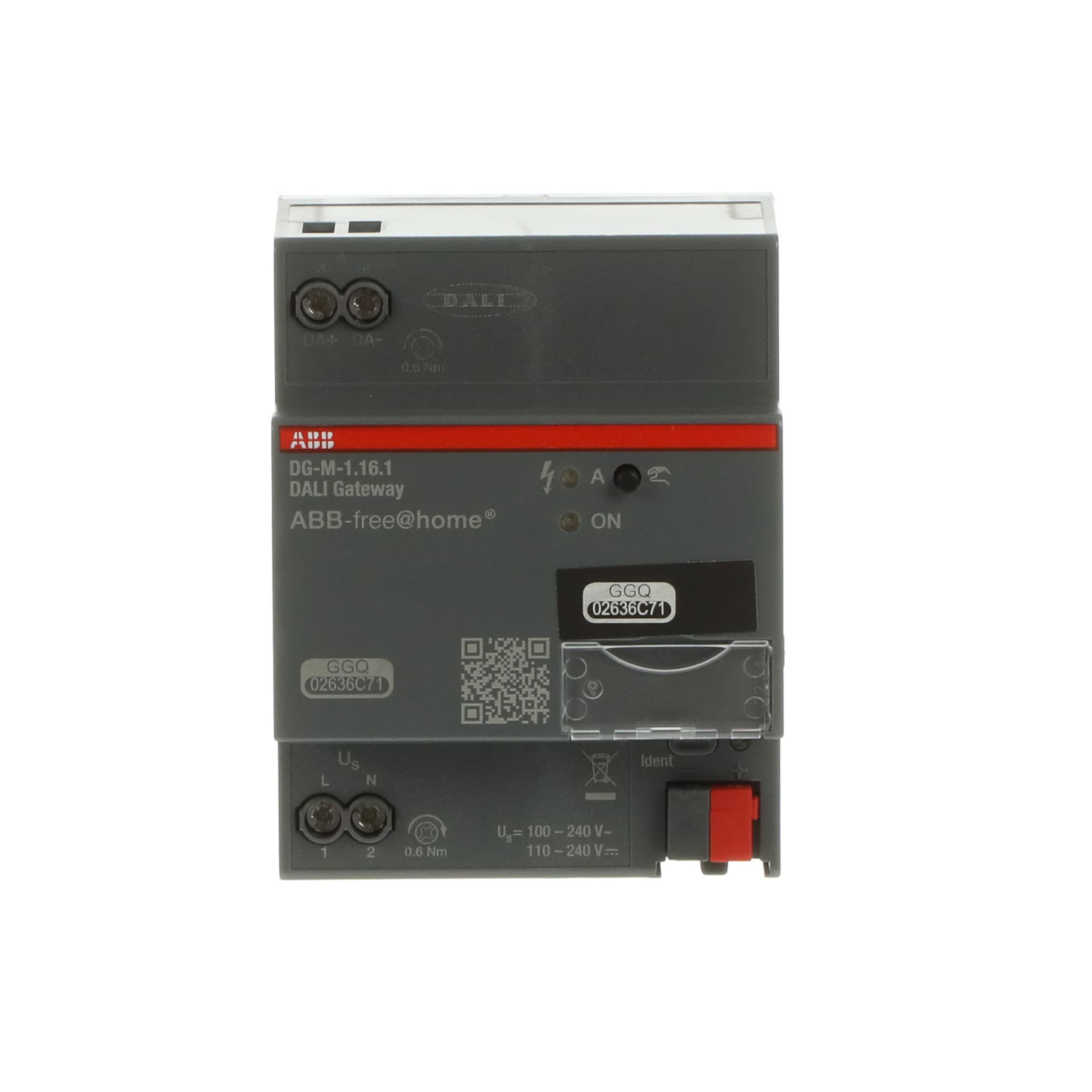

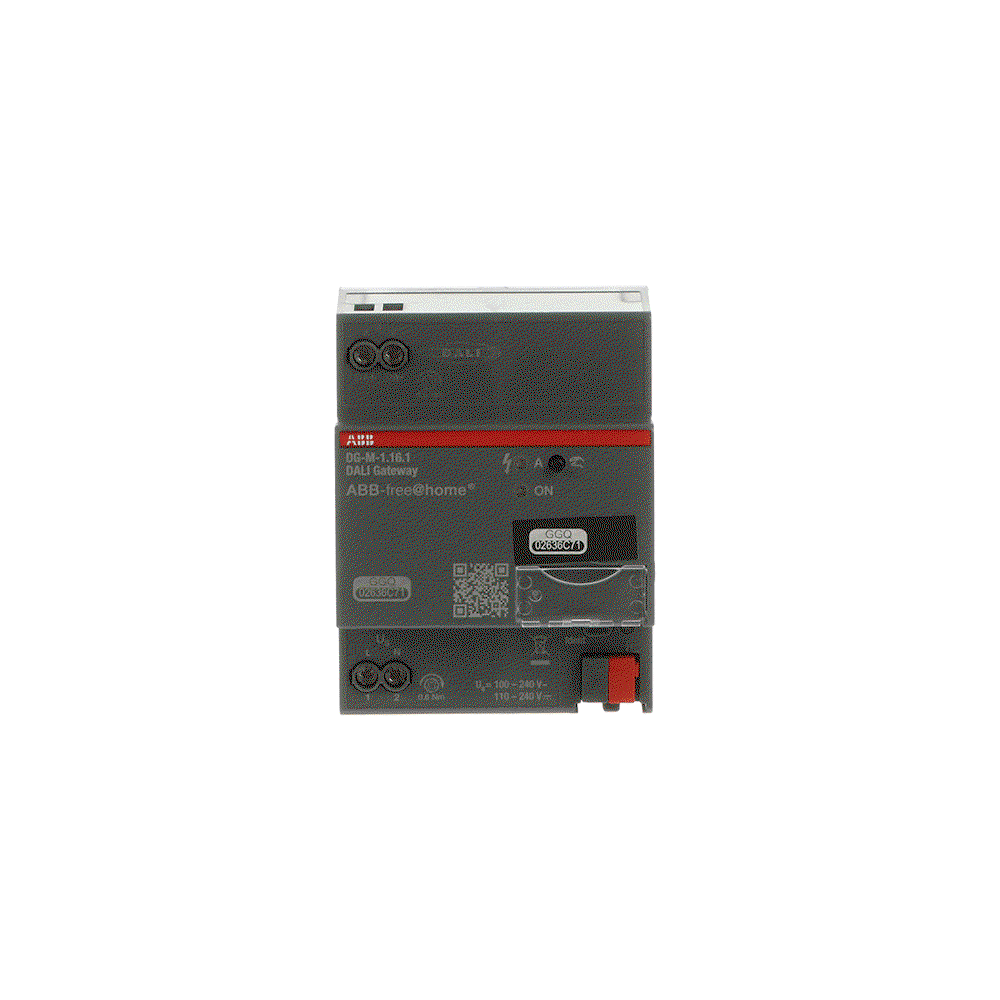

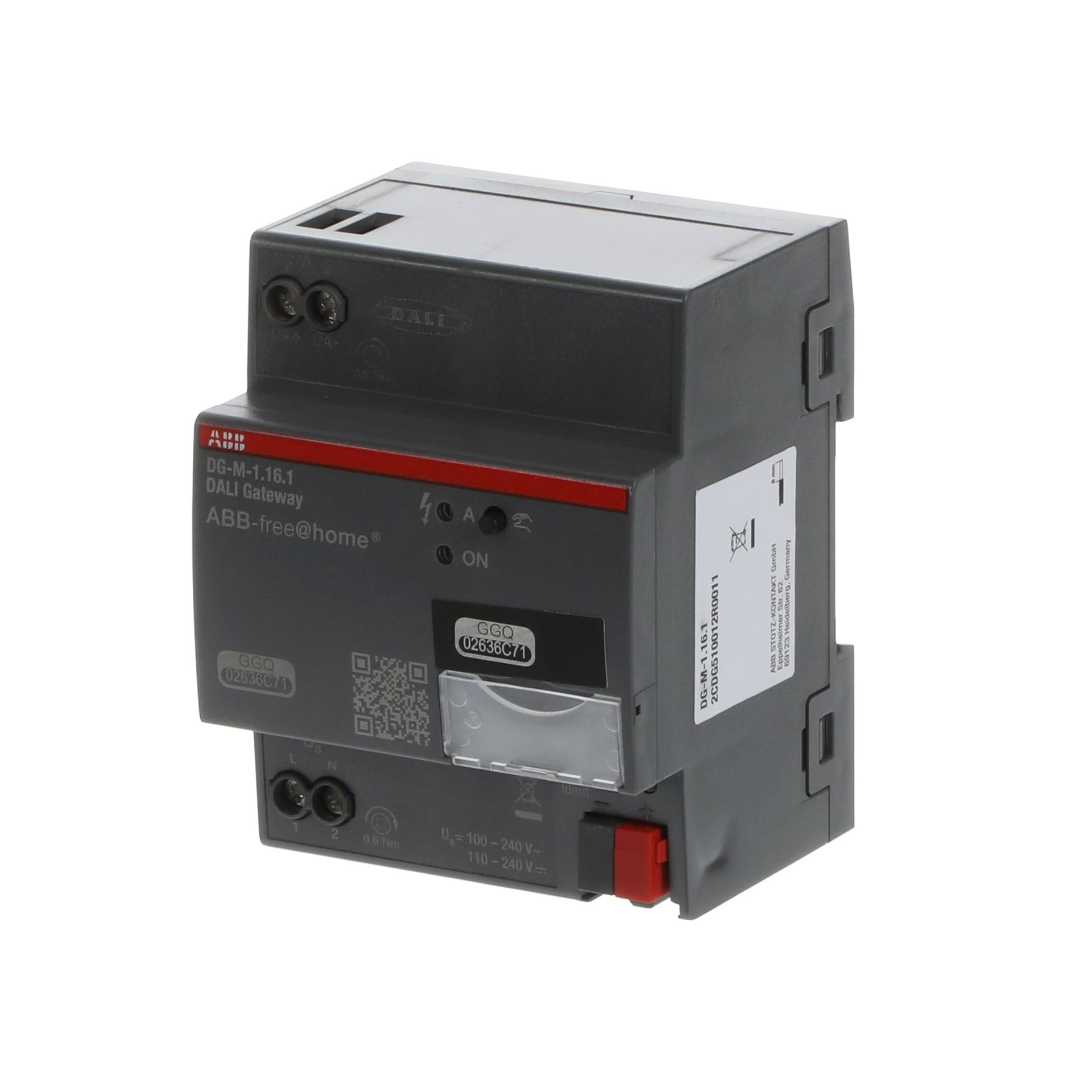

DG-M-1.16.1 Gateway DALI
1 / 4
DG-M-1.16.1 Gateway DALI
DALI gateway MDRC for ABB-free@home.
For controlling DALI devices via free@home.
One DALI output for max. 16 DALI devices.
Supports the control of DT=, DT6 and DT8 (color temperature Tc & RGB(W) according to EN 62386-209).
Integrated DALI power supply for the DALI devices.
Each DALI device can be controlled separately or via free@home groups and scenes.
Staircase lighting, blocking and forced functions are available.
For single master operation.
Commissioning is carried out via the free@home user interface.
DALI addressing is automatic.
Programming only when bus voltage is applied via the web interface of the System Access Point.
Codici prodotto
SKU: 2CDG510012R0011
EAN: 4016779067409
GTIN: 4016779067409
MPN: DG-M-1.16.1
Gruppo ETIM
Specifiche tecniche
| Tipologia | - |
| Protocollo | - |
| Web server | no |
| Aggiornabile | si |
| Interfaccia IR | no |
| Sistema bus LON | no |
| Visualizzazione | no |
| Numero di canali | - |
Documenti
Deeplink product page
Deeplink REACH
9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf
Dimensioned drawing
4_TE_MB_XX_V1-0_2CDC072033F0015_Rev_A.eps
Instructions for use
DGM_1161_MBA_14s_V1-1_2CDG941221P0001_2CDG941222P0001.pdf
Product data sheet
Declaration RoHS
9AKK108472A2583_en_A_RoHS Exemption Information.pdf
Declaration DOC CE (Declaration of conformity CE)
DGM_1161_CE-ROHS_xx_V1-1_2CDK507177D2701-02_Ref_B.pdf
