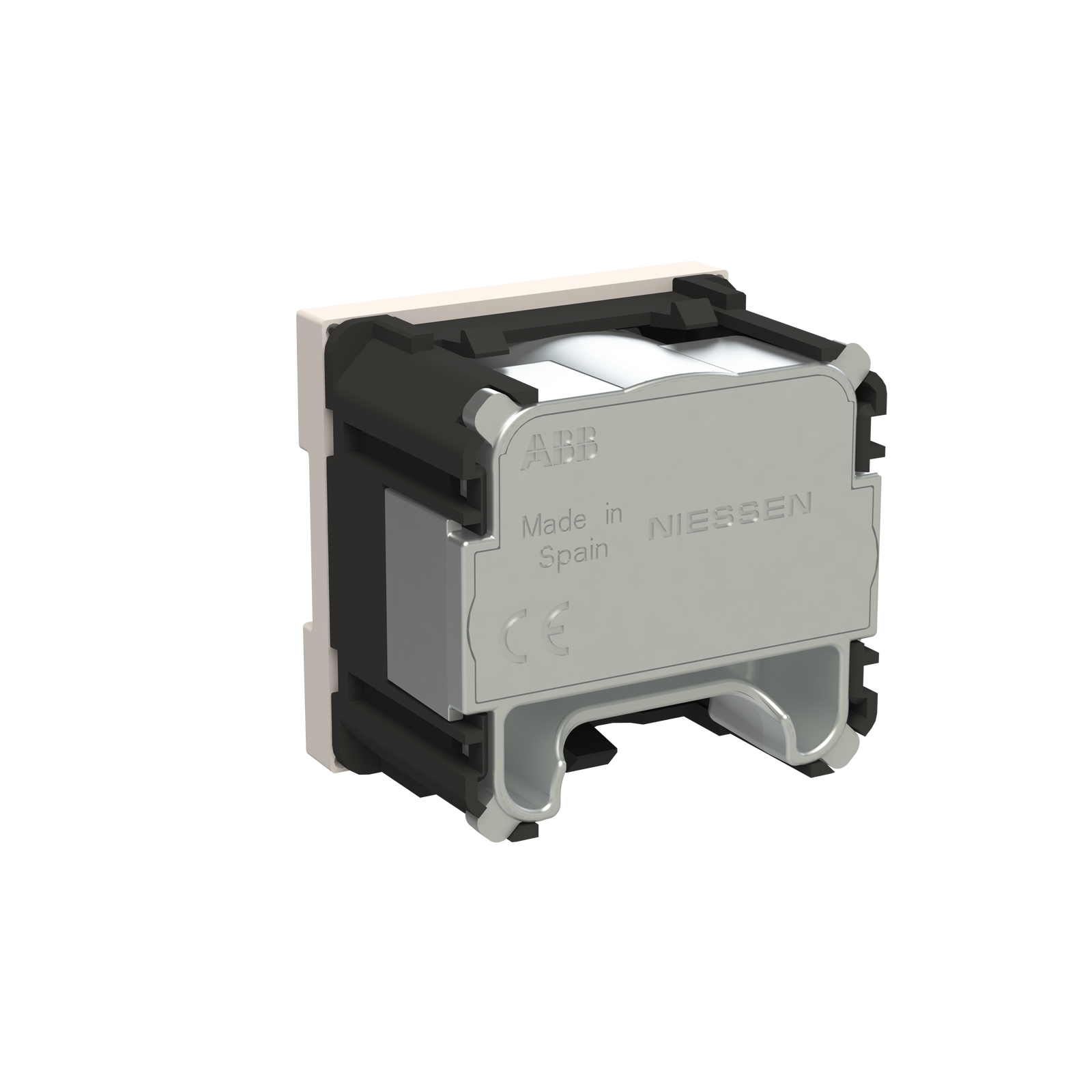

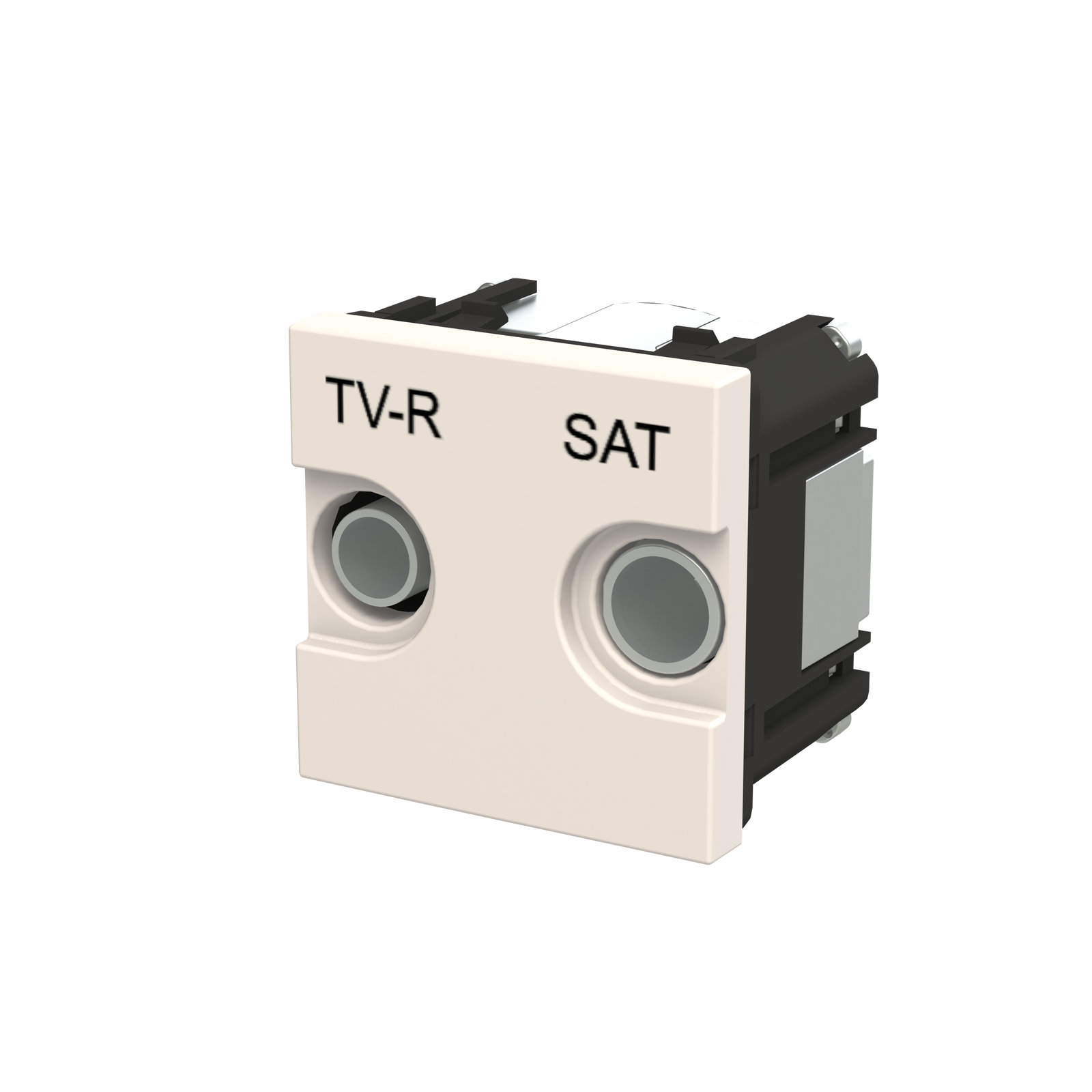

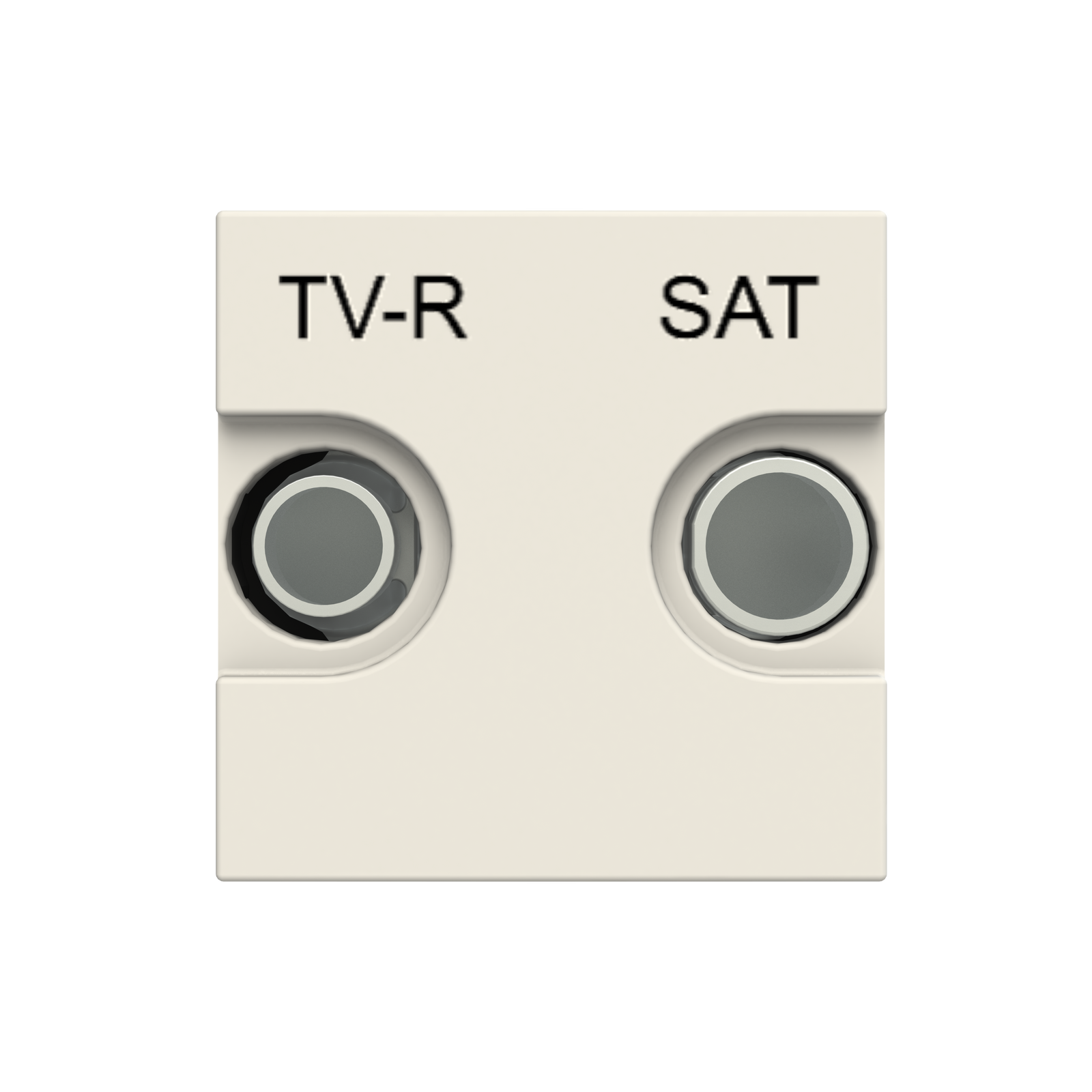

Presa TV Sat 2 gang Bianco - Zenit

Color: White. TV-R and SAT double outlet - Final Installation as a terminal outlet connected to a series with loop-through outlets. Connection: screw terminal and clamp. Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam. Frequency range (I/O / C1 / C2): 5 - 2.400 MHz / 5 - 2.400 MHz / 5 - 2.400 MHz Basic loss (FM / TV / SAT): 3,7±0,3 dB / 4,0±0,5 dB / 5,0±1,2 dB Isolation (FM / TV / SAT): >20 / >20 / >14 Return loss (VR / FM / TV / SAT): >16 / >16 / >16 / >9 DC path (Vdc / mA / Tono): 24 max. / 500 max. / 22 KHz - DiSEqC Size: 2 modules.
