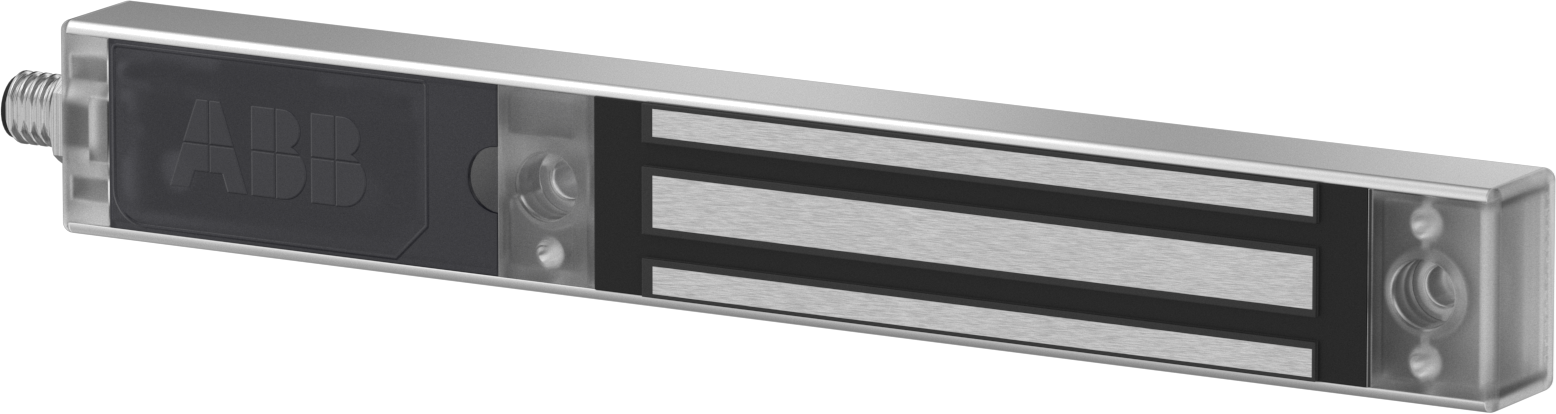

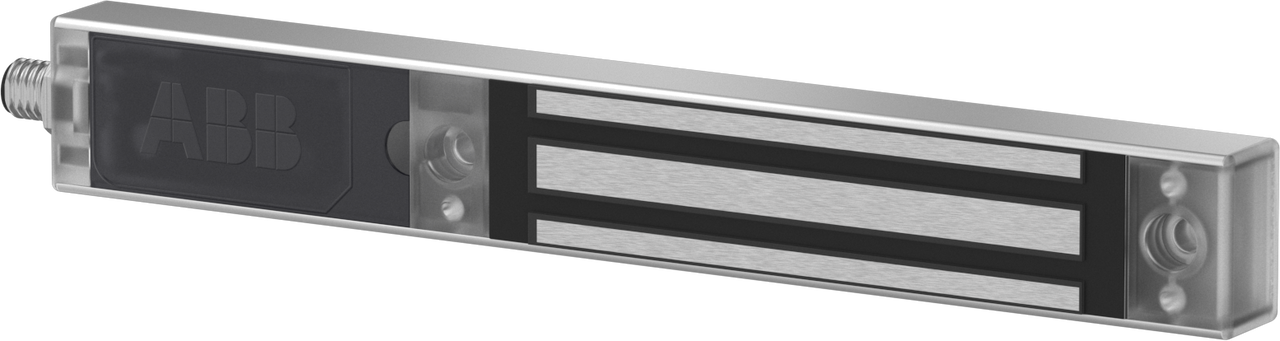

Magne 3X M12-5 Lock
Magne 3X M12-5 is an electromagnetic lock with a M12-5 male connector.
A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. An anchor plate must be ordered separately.
Codici prodotto
SKU: 2TLA042022R2700
EAN: 7350024483857
GTIN: 7350024483857
MPN: Magne 3X M12-5
Specifiche tecniche
| Altezza | 274 mm |
| Larghezza | 35 mm |
| Antideflagrante | no |
| Distanza parete | 30 - 30 mm |
| Forza di adesione | 1500 - 1500 N |
| Tipo di montaggio | Struttura |
| Materiale del corpo | Altro |
| SIL secondo EN 62061 | - |
