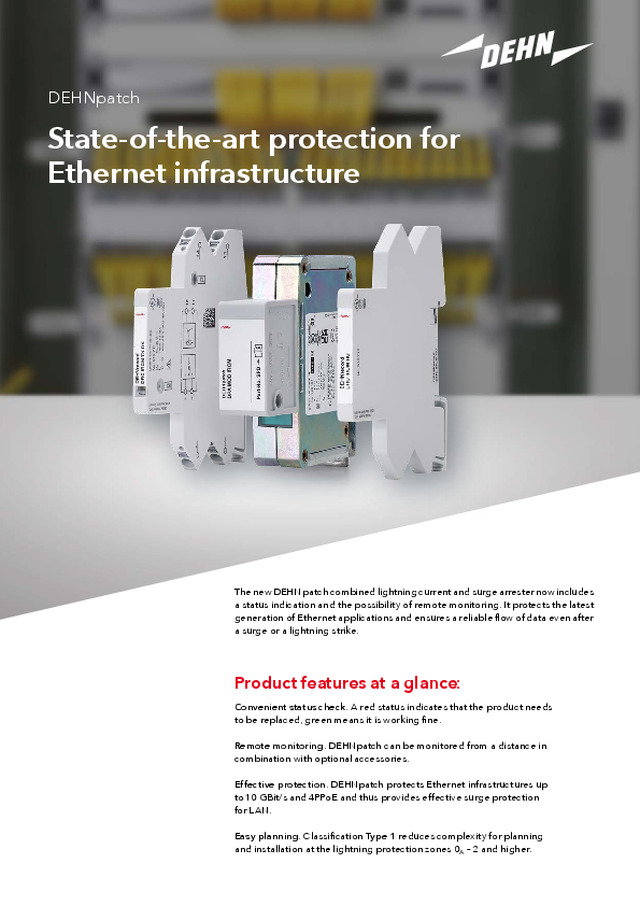

DEHNpatch State-of-the-art protection for Ethernet infrastructure The new DEHN patch combined lightning current and surge arrester now includes a status indication and the possibility of remote monitoring. It protects the latest generation of Ethernet applications and ensures a reliable flow of data even after a surge or a lightning strike. Product features at a glance: Convenient status check. A red status indicates that the product needs to be replaced, green means it is working fine. Remote monitoring. DEHNpatch can be monitored from a distance in combination with optional accessories. Effective protection. DEHNpatch protects Ethernet infrastructures up to 10 GBit/s and 4PPoE and thus provides effective surge protection for LAN. Easy planning. Classification Type 1 reduces complexity for planning and installation at the lightning protection zones 0A 2 and higher. Slim design, smart technology. 1. Ergonomic recess for the convenient unlocking of the RJ45 patch connection 1 2. Up to 10 GBit/s Ethernet for a performance of up to Class E A / 500 MHz 2 6 3. 4P Power over Ethernet (4PPoE) for power supply up to 90 W (PSE) 4. Lightning current 4 kA (10/350 s) for universal use as a combined arrester 3 7 4 8 5. Fully-shielded enclosure design for all Ethernet applications 6. Screw connection for additional equipotential bonding 7. Optional adapter and DRC IRCM remote signalling unit for remote monitoring 5 9 8. Earthing contact for 35 mm DIN rails 9. Status indication for visual...
